Regular price$1,499.00
/

Quantity

DISCONTINUED

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

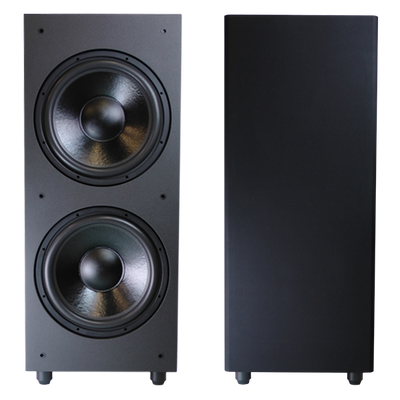

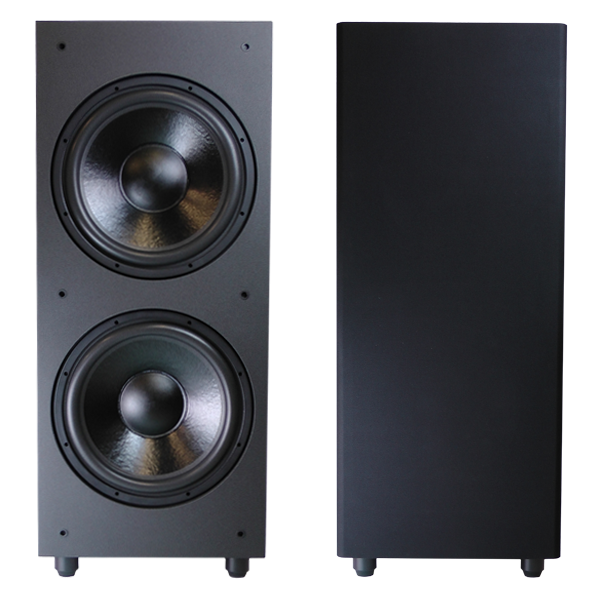

-The XV30Fse is the largest subwoofer in the Power-X product line and makes no excuses about it. Providing the loudest, most concussive bass of the entire product line, the XV30Fse annihilates so called “uncompromising subwoofers” by employing two of the new Power X drivers and a more powerful amplifier. We are sure you will be 100% pleased with the XV30Fse, but we can’t say the same for your neighbors.
Design Vented
Drivers Two 15" high excursion drivers
Powered Yes
Amp Patented digital hybrid PS BASH® 800W amplifier with DSP control
Enclosure CNC machined MDF
Frequency Response 20Hz-200Hz +/-3dB
In-Room Extension 15Hz-18Hz
Size (DxWxH) 48" x 32" x 34"
Weight 206 lbs

Amp

  • Amplifier Power: 800W RMS (continuous), 2400W Peak (dynamic)
  • Amplifier Topology: PS BASH® - Patented hybrid amplifier uses best of Class D and Class AB
  • Precision analog control through DSP (digital signal processing)
  • Inputs: Left (LFE) and Right RCA connections
  • 0o to 180o Continuous Phase Control
  • 40Hz-150Hz/LFE Variable Crossover
  • Off/Auto/On Selector
  • Voltage: 100-120V/220-240V~50/60Hz (6.3A) with auto-switching
  • Stand-By Power: Less than 1W
  • Temperature sensing protection
  • Driver voltage monitoring with DC offset protection
  • Driver current monitoring with overload, short circuit, and load protection.
  • Primary voltage monitoring to control dynamic and average power limits
  • Soft limiting protection
  • Frequency dependent compressors
  • Energy Star compliant

  • Cabinet

  • Vented enclosure
  • Front-firing drivers
  • Super durable, black sand textured finish

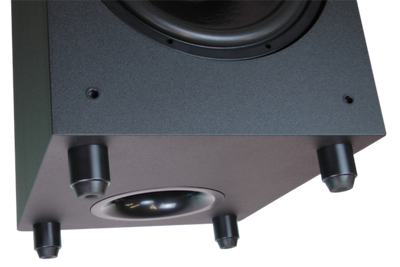

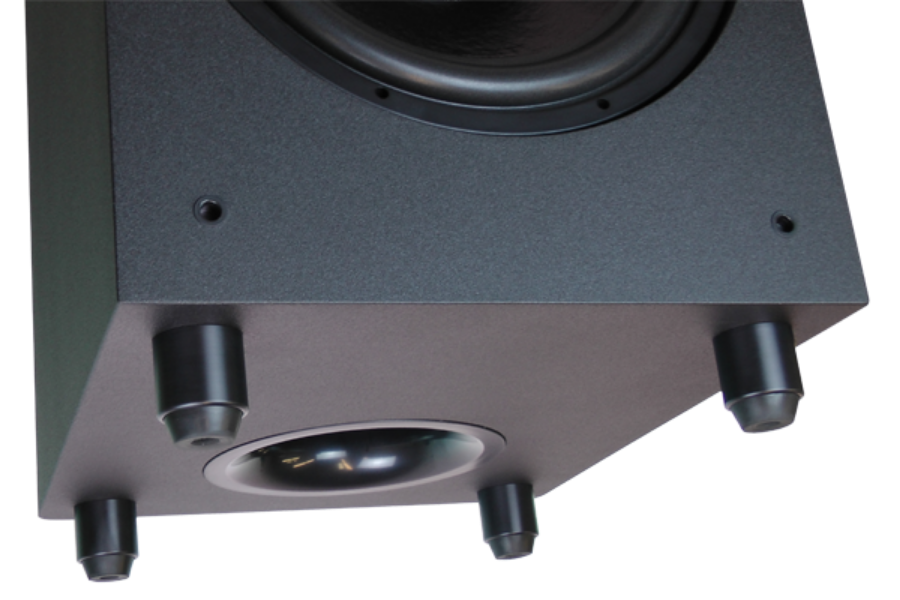

  • USA designed, massive 6" Precision PortTM
  • Precision machined CNC panels for perfect fit of all components
  • 1” thick MDF baffles and 1.75” thick MDF driver baffle
  • Dimensions (D x W x H): 22.5” x 18.5” x 45” (includes grill)
  • Weight: 162lbs (includes grill)
  • Made in the USA

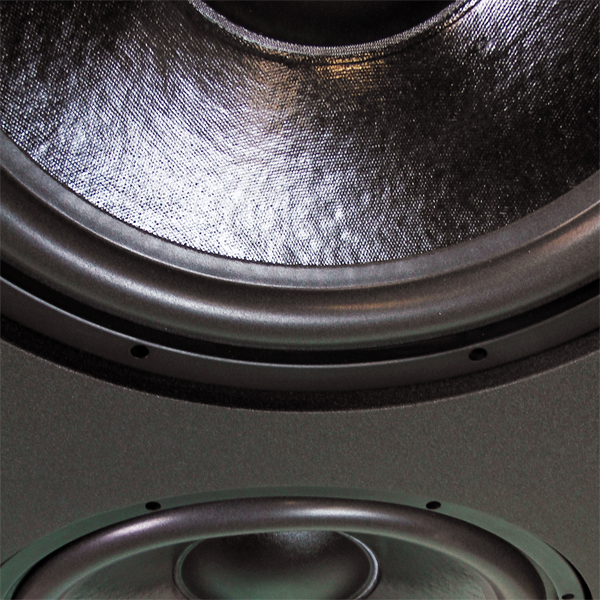

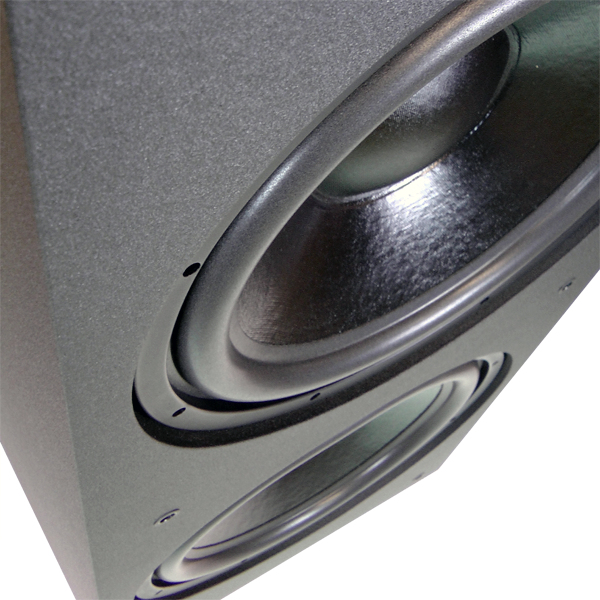

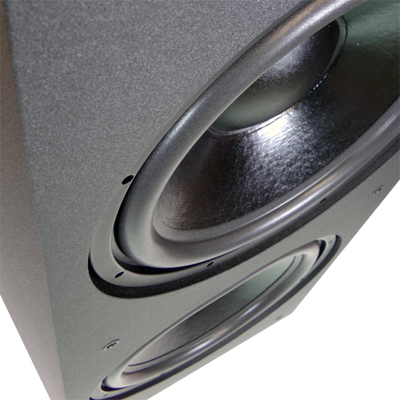

  • Woofer

  • >Power Sound Audio proprietary 15” driver
  • High excursion capabilities (2" peak to peak)
  • Extended and vented pole geometry
  • Vented back plate to maximize air flow
  • Double stacked 80oz. ferrite magnets
  • Extremely linear and dynamic motor system
  • Highly treated, Kevlar-reinforced rigid paper cone body
  • Paper dust cap with acrylic coating
  • Epoxy reinforced cone neck/apex joint
  • Concentric foam surround, treated for longevity
  • Die-cast, twelve spoke, rigid aluminum frame with under spider cooling vents
  • Three inch diameter, four layer copper voice coil wound on a rigid multi-layer aluminum former with Kapton heat shielding
  • Fatigue limiting designed, silver alloy lead wires
  • Single poly cotton semi-progressive, high excursion spider
  • Assembled in the USA

  • FREQUENCY RESPONSE

    * 2 meter ground plane (1/3 Octave smoothing)

    LONG TERM OUTPUT COMPRESSION

    IN ROOM VS GROUND PLANE

    * The two curves in the graph depict the difference between a simulated in-room response and the measured ground plane response. The XV30Fse experiences a shallow 10dB/octave roll-off starting at 30Hz when measured in a ground plane (quasi-anechoic) environment. Once the XV30Fse is placed in a medium to large sized room, true extension to 15Hz-18Hz is typical. This boost in low end output is due to the phenomenon known as "room gain".
  • Josh Ricci at Data-Bass.com has posted his extensive review of the XV30Fse. Please click on the Data-Bass logo to read his review.
    "The XV-30Fse is a big subwoofer that you are not going to sneak into the room but it easily performs its duty of fulfilling the requirement for a lot of bass headroom with a very reasonable cost. In room substantial output to 16Hz or so should be realized with loads of 20-30Hz power to drive even a large space well. Additionally in the upper bass range from 40-120Hz the XV-30Fse possesses mighty output capability for those instances when you want to forget about running the bass flat and just crank it up with some of your favorite music. "


    SmokenAshes from AVS posted his review of the XV30 and his experience dealing with Power Sound Audio. Please click the AVS logo to read the entire review.
    "Everything about this sub is overkill, and that's why I love it!"
    "You know when I first emailed Tom I asked for a sub that demanded respect. Like the sound of thunder, when it hits it reminds you of your childhood when you hid underneath the blankets. Something that shot fear into you, something that shook your very soul. Ladies and Gentlemen that is the XV30. This sub scares the **** out of me. It demands respect. Tom you delivered, job well done!"


    One of our customer's sent us a very detailed review of the XV30Fse. Check out the review on our FaceBook page by clicking the logo below.
    ""Almost to the point of being afraid to turn it up, this is no joke whatsoever. I was AFRAID to turn this thing up it get's so loud and bass-heavy it will literally make you sick if you watch movies with crazy bass heavy tracks, but it will make you smile like an idiot at the same time, this is a real SUB-woofer."
