V1500
V1500
V1500
V1500

V1500

Regular price$1,099.99
/

Quantity
EQ

DISCONTINUED

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

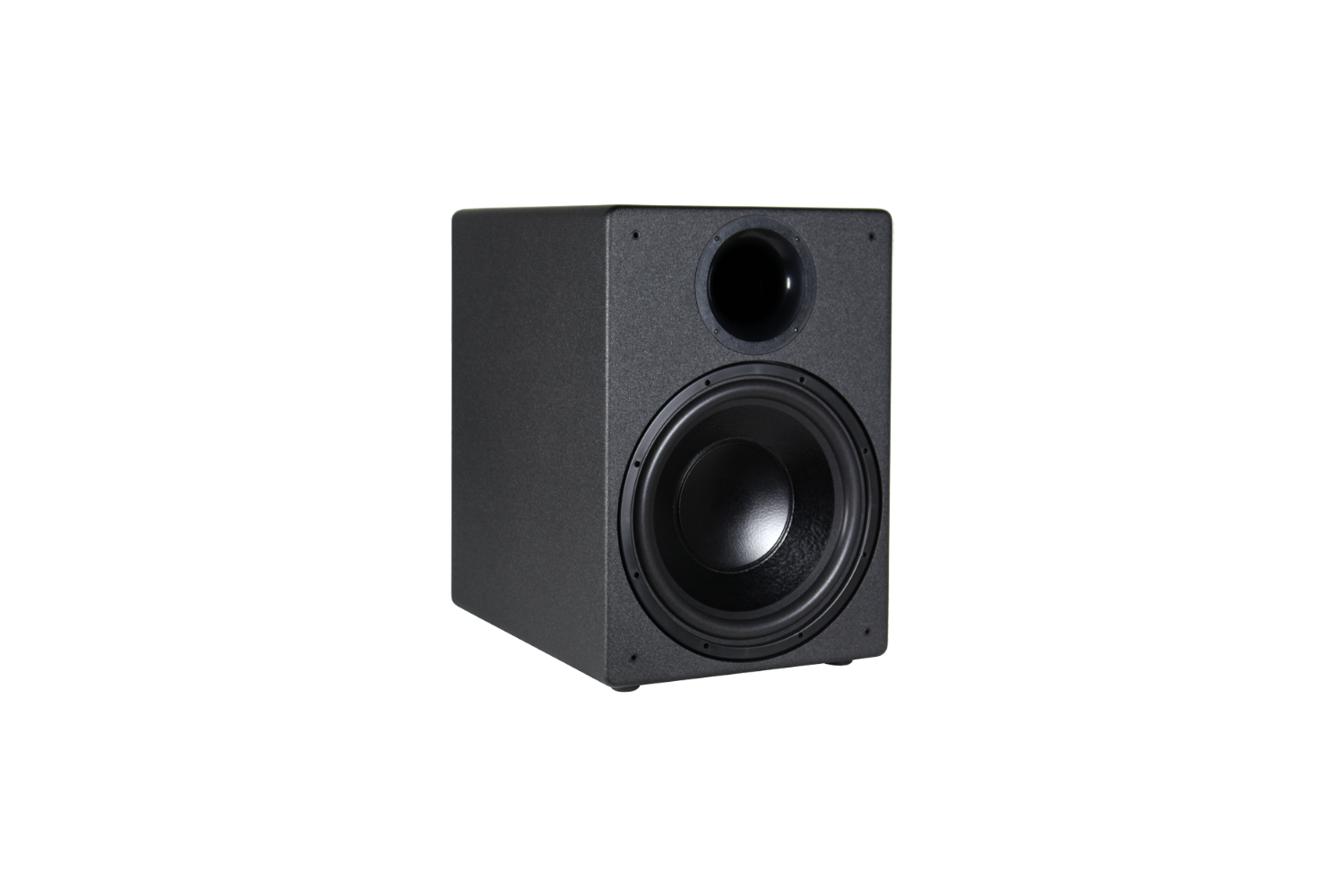

-The V1500 powered home theater subwoofer will satisfy your cravings for deep accurate bass. Feel the impact the potent V1500 subwoofer delivers during your favorite Hollywood action flick.

-The V1500 subwoofer is powered by a 725W RMS (1900W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

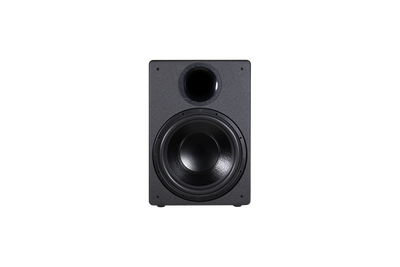

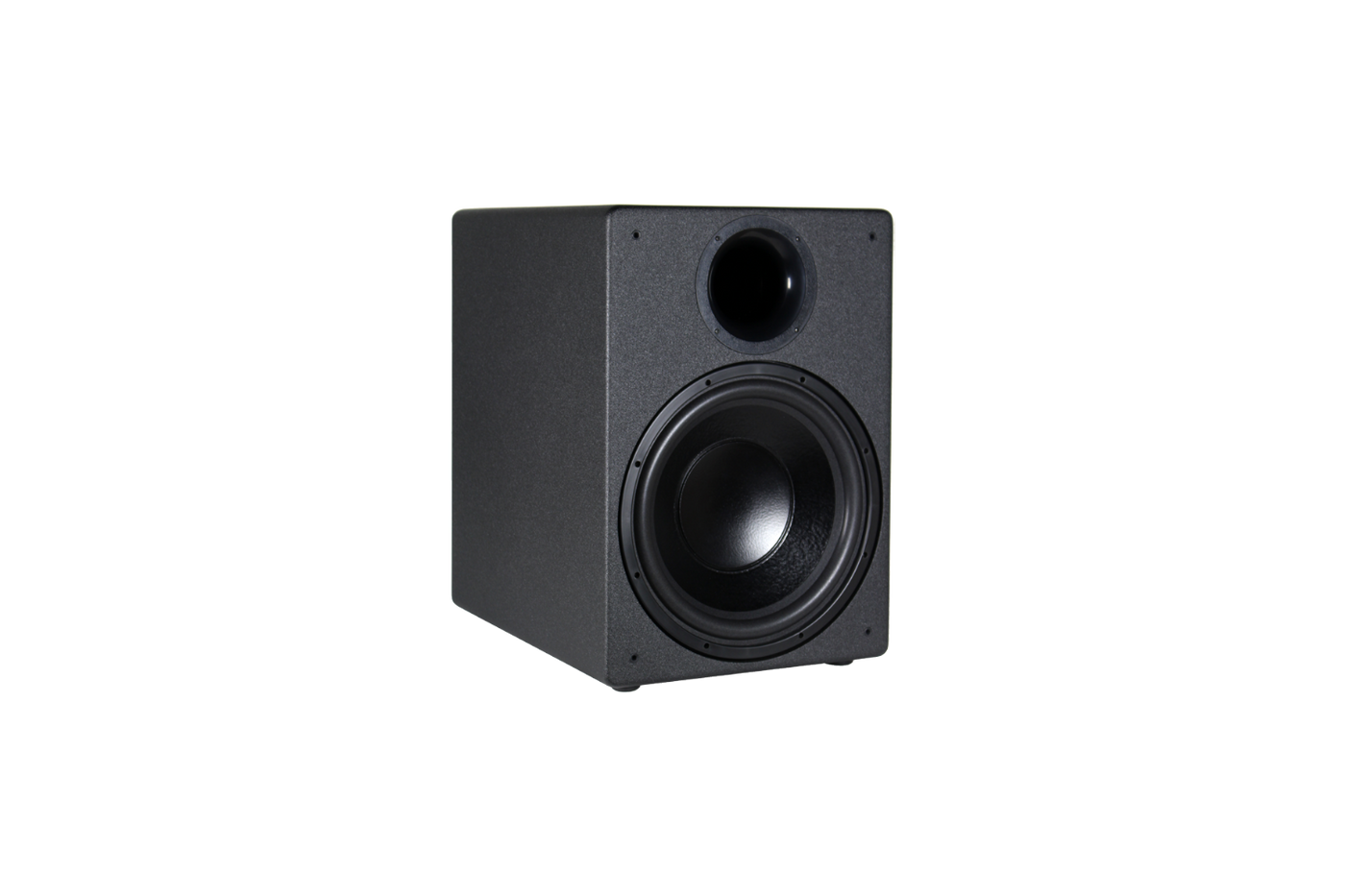

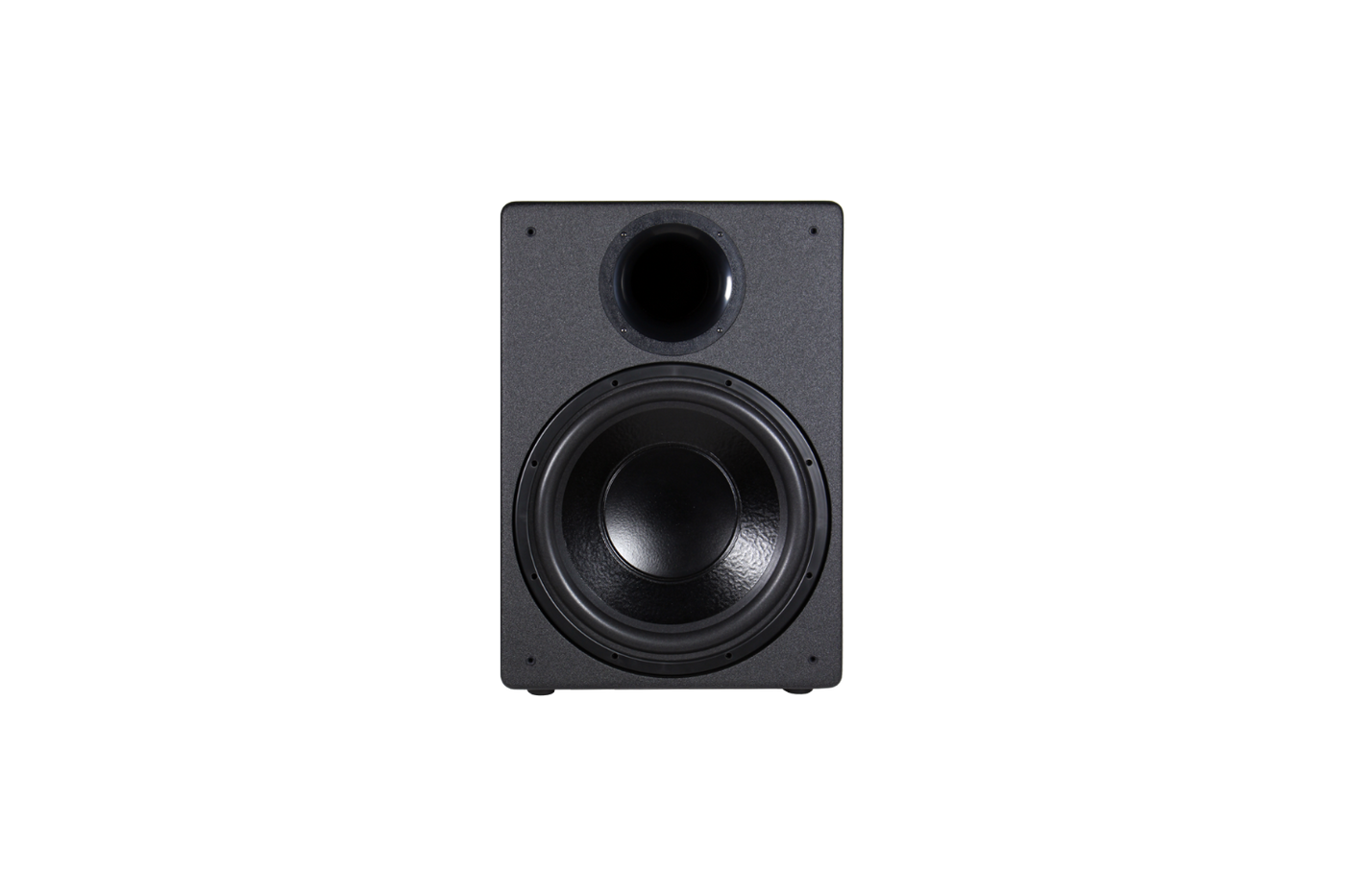

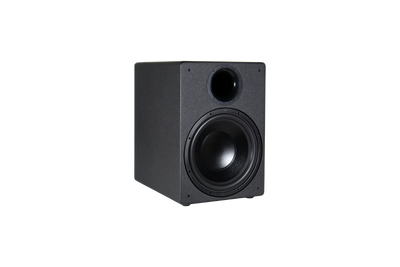

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. The front-firing 15 inch subwoofer driver and 4 inch Precision Port™ are mounted to the front baffle of the enclosure, and covered with an acoustically transparent grille. The amplifier mounted to the rear baffle.

-The V1500 contains a 15 inch subwoofer driver, which is capable of moving massive amounts of air. The 1 inch surround and poly cotton semi-progressive, high excursion spider allow the cone to move more than 2 inches peak to peak. The cast aluminum frame is mounted to the extremely linear and dynamic motor system, which provides the power to drive the cone in a symmetrical motion.
Design Vented
Drivers 15" High Excursion
Powered Yes
Amp 725W RMS (1900W PEAK)
Enclosure CNC machined MDF
Frequency Response 16Hz-200Hz +/-3dB
In-Room Extension 11Hz-14Hz
Size (DxWxH) 24" x 17" x 25"
Weight 86 lbs

Amp

  • ICEpower® audio technology
  • Amplifier Power: 725 watts
  • Inputs: Left and Right RCA inputs
  • On, Auto, Off selector
  • Gain control
  • Time delay(phase) control
  • Crossover control
  • Room size control
  • Custom DSP(digital signal processing) enables superior engineering refinement
  • CE and FCC approved; EMC and safety pre-approved
  • Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
  • Patented HCOM modulation and control techniques for unparalleled audio accuracy
  • Sound optimized soft clipping
  • Soft start power up with mute/de-mute.
  • Thermal and over-current protection
  • Standby converter with low standby power consumption (less than 1 watt)
  • Universal mains operation (100-240 V, 50-60 Hz)
  • Standby power consumption 170 mW @ 230 V
  • ErP (1275/2008/EC) compliant
  • Energy Star®v3.0 compliant
  • 117 dBA dynamic range
  • THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
  • THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
  • CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
  • High output current limit of 30 A

  • Cabinet

  • Vented Enclosure
  • Front-firing driver
  • Acoustically transparent grille
  • Front mounted 4 inch Precision Port™
  • Super durable, black sand textured finish
  • Precision machined CNC panels
  • Rigid MDF baffles
  • Heavily braced

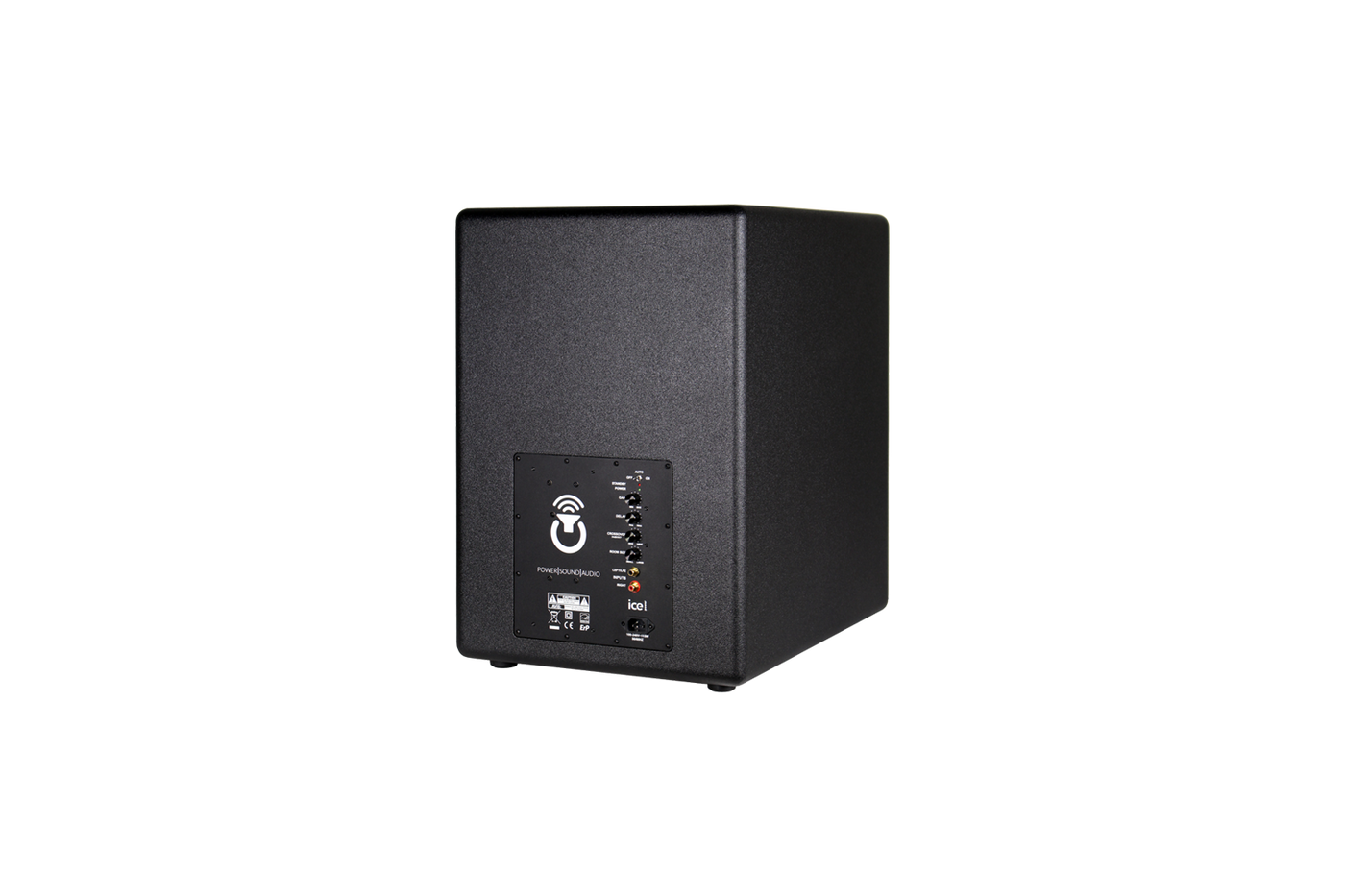

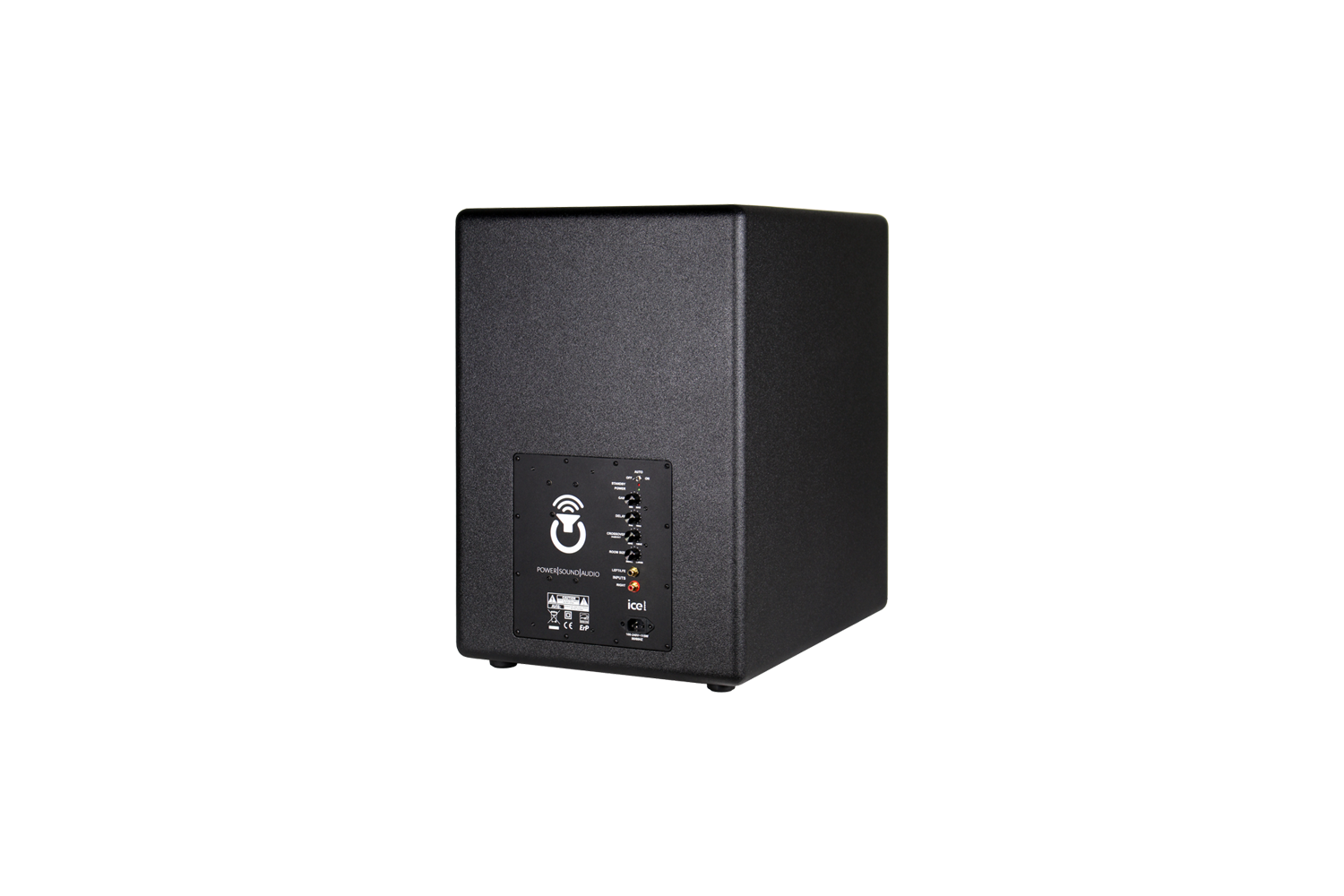

  • Rear mounted amplifier
  • USA manufactured rubber feet
  • Dimensions (DxWxH): 24"x17"x25"
  • Weight: 86 lbs
  • Made in the USA

  • Woofer

  • Power Sound Audio proprietary 15” driver
  • Extended and vented pole geometry
  • Vented back plate to maximize air flow
  • Double stacked 80oz. ferrite magnets
  • Extremely linear and dynamic motor system
  • Epoxy reinforced cone neck/apex joint
  • Concentric foam surround, treated for longevity
  • Highly treated, Kevlar-reinforced rigid paper cone body
  • Die-cast, twelve spoke, rigid aluminum frame with under spider cooling vents
  • Three inch diameter, four layer copper voice coil wound on a rigid multi-layer aluminum former with Kapton heat shielding
  • Fatigue limiting designed, silver alloy lead wires
  • Single poly cotton semi-progressive, high excursion spider
  • Paper outer dust cap with acrylic coating
  • Assembled in the USA
  • V1500 Frequency Response

    The frequency response graph shows how the subwoofer will sound for a given input frequency or tone. Accurate reproduction of the source material is achieved with a flat frequency response as shown in the graph.


    V1500 Compression

    The compression graph indicates how the output of the subwoofer changes as the input signal increases.


    16Hz - 25Hz: 116.7 dB
    31Hz - 50Hz: 124.5 dB
    63Hz - 100Hz: 126.7 dB
    16Hz - 100Hz: 123.8 dB
