Regular price$1,449.99
/

Quantity
Auto Subwoofer EQ

DISCONTINUED

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.


-The V1811 powered home theater subwoofer is a perfect choice for the bass enthusiast. Designed to accurately reproduce source material at extremely high levels, the V1811 delivers concussive output during the most intense action movie, and accurate musical definition like you've never heard from a vented subwoofer.

-The V1811 subwoofer is powered by a 960W RMS (2100W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

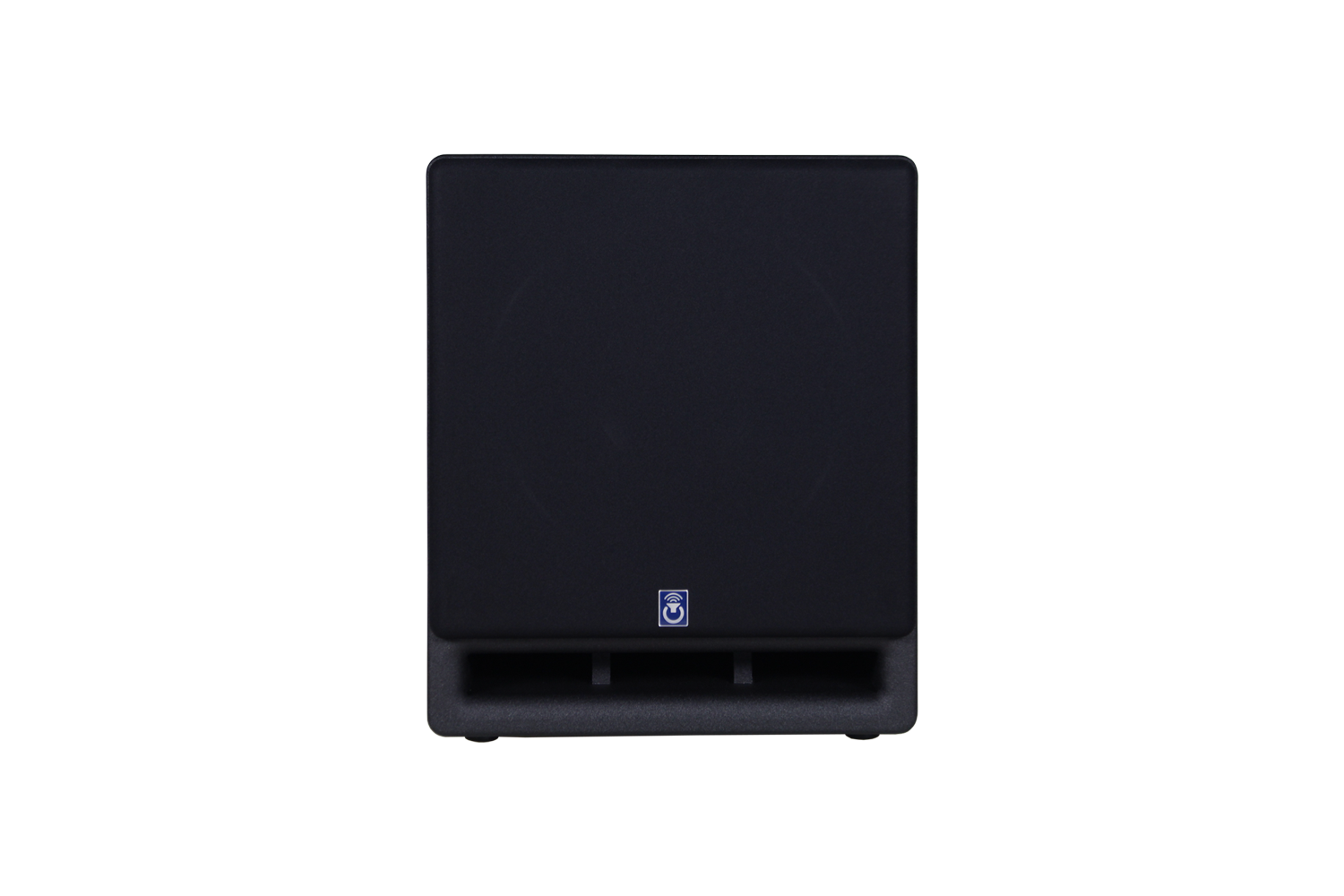

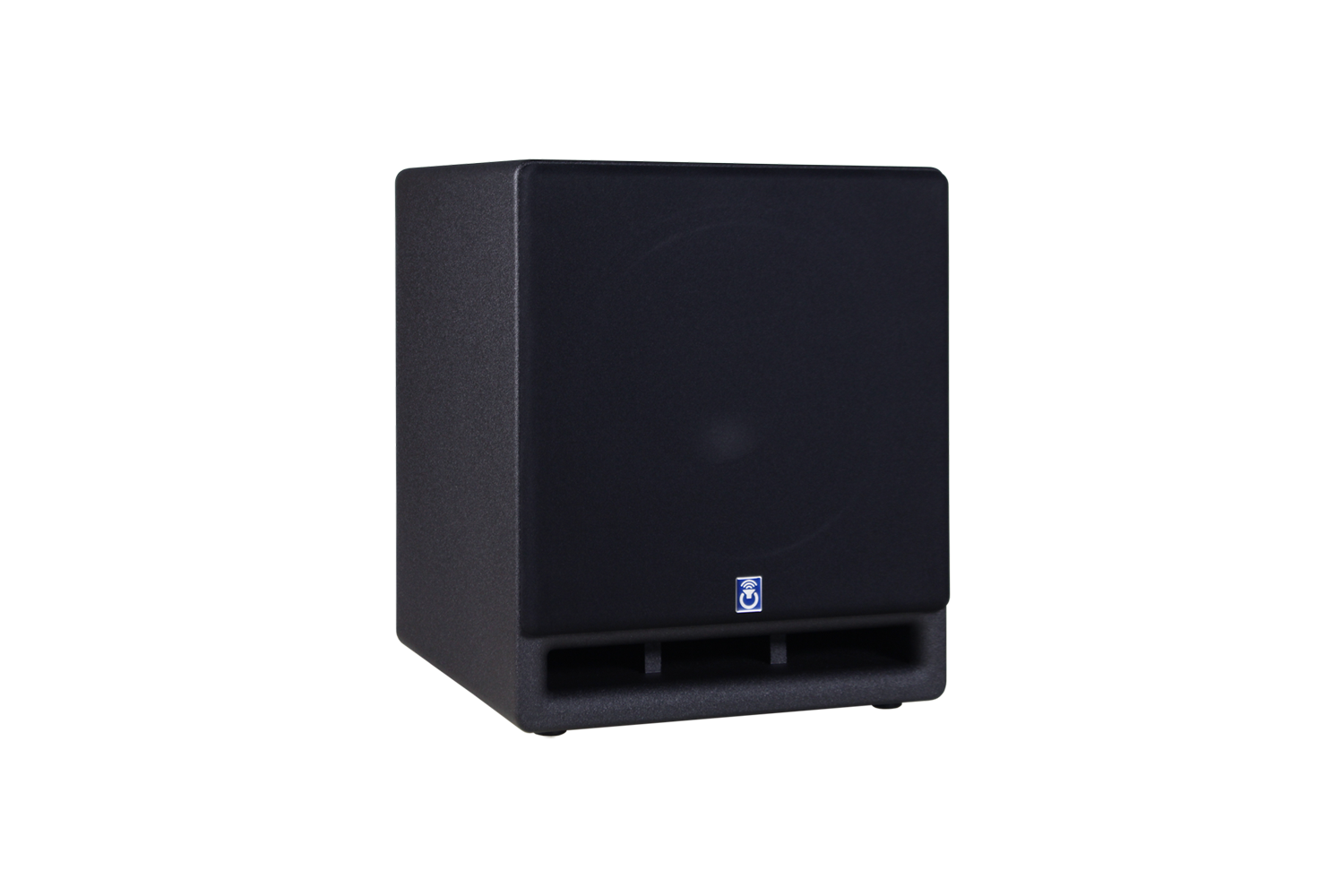

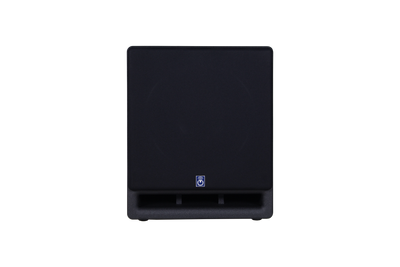

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. An acoustically transparent fabric grille covers the front-firing 18 inch subwoofer driver. Just below the driver on the front baffle is the high flow slot port with an edge radius. The amplifier is mounted on the rear baffle.

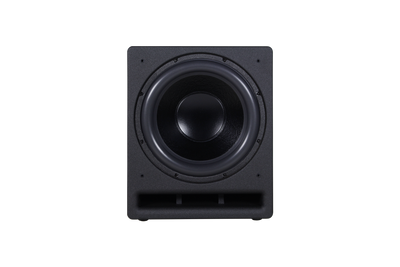

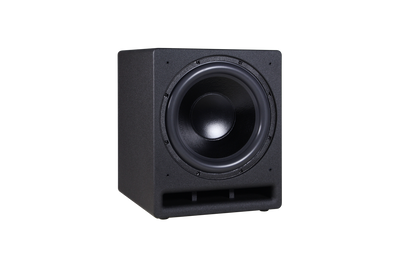

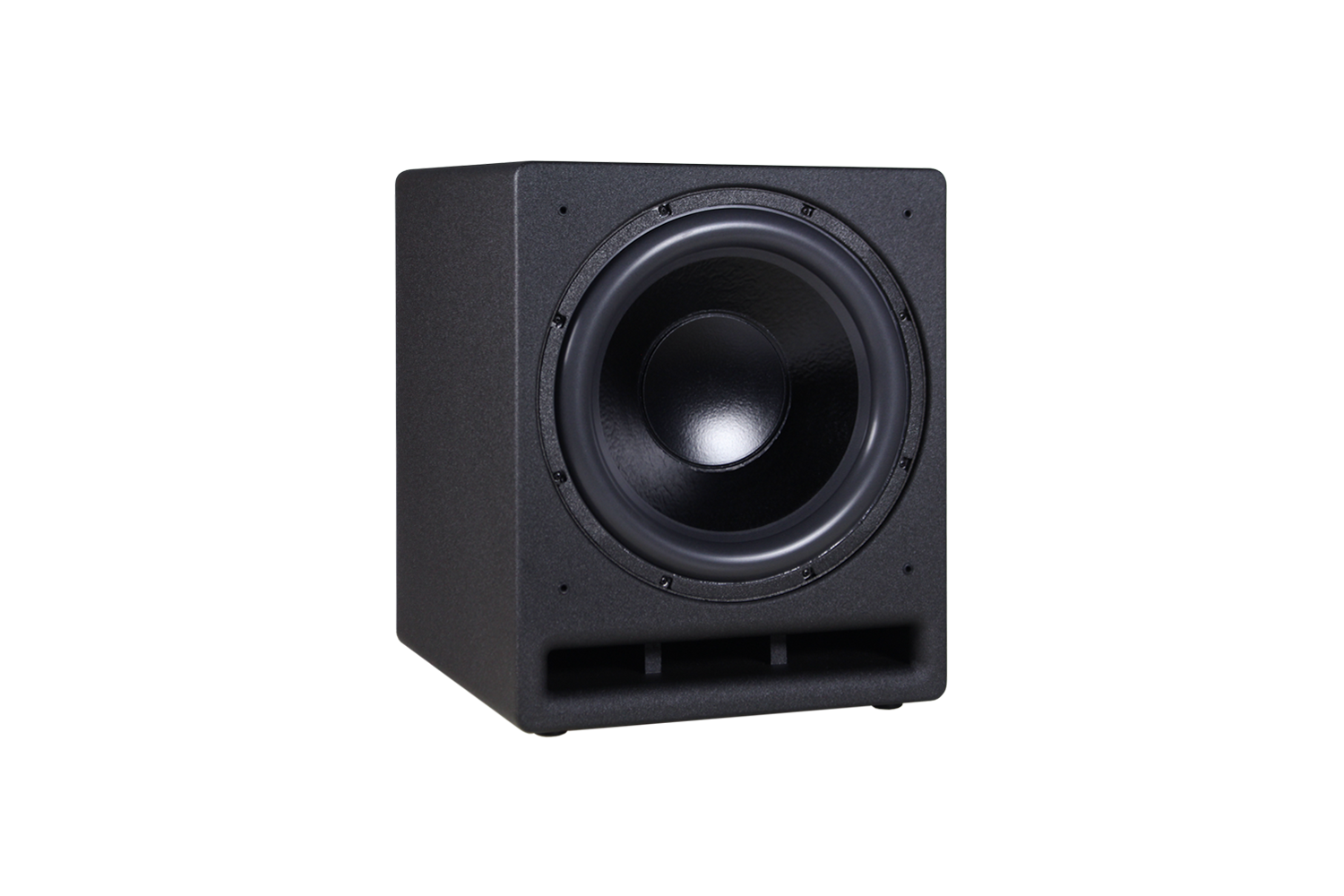

-The V1811 contains a single 18 inch subwoofer driver, which is capable of moving massive amounts of air. The 1.75 inch surround and poly cotton semi-progressive, high excursion spider allow the cone to move more than 2 inches peak to peak. The cast aluminum frame is mounted to the extremely linear and dynamic motor system, which provides the power to drive the cone in a symmetrical motion.
Design Vented
Drivers 18" High Excursion
Powered Yes
Amp 960W RMS (2100W PEAK)
Enclosure CNC machined MDF
Frequency Response 16Hz-200Hz +/-3dB
In-Room Extension 11Hz-14Hz
Size (DxWxH) 22" x 20" x 24" with grille
Weight 108 lbs

Amp

  • ICEpower® audio technology
  • Amplifier Power: 960 watts
  • Inputs: Left and Right RCA
  • Inputs: Left and Right XLR
  • 12V Trigger
  • On, Auto, Off selector
  • Gain control
  • Time delay(phase) control
  • Crossover control
  • Room size control
  • Custom DSP(digital signal processing) enables superior engineering refinement
  • CE and FCC approved; EMC and safety pre-approved
  • Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
  • Patented HCOM modulation and control techniques for unparalleled audio accuracy
  • Sound optimized soft clipping
  • Soft start power up with mute/de-mute.
  • Thermal and over-current protection
  • Standby converter with low standby power consumption (less than 1 watt)
  • Universal mains operation (100-240 V, 50-60 Hz)
  • Standby power consumption 170 mW @ 230 V
  • ErP (1275/2008/EC) compliant
  • Energy Star®v3.0 compliant
  • 117 dBA dynamic range
  • THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
  • THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
  • CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
  • High output current limit of 30 A
  • Assembled by Power Sound Audio

  • Cabinet

  • Vented/Ported Enclosure
  • Massive slot port with edge radius
  • Front-firing driver
  • Acoustically transparent fabric grille cover
  • Super durable, black sand textured finish
  • Precision machined CNC panels
  • Rigid MDF baffles
  • Heavily braced
  • Rear mounted amplifier
  • USA manufactured rubber feet
  • Dimensions (DxWxH): 22"x20"x24" includes grille
  • Weight: 108 lbs
  • Made in the USA

  • Woofer

  • Power Sound Audio proprietary 18” driver
  • Extended and vented pole geometry
  • Vented back plate to maximize air flow
  • Extremely linear and dynamic motor system
  • Epoxy reinforced cone neck/apex joint
  • Concentric foam surround, treated for longevity
  • Highly treated, rigid paper cone body
  • Die-cast rigid aluminum frame
  • Three inch diameter, four layer copper voice coil wound on a rigid multi-layer aluminum former with Kapton heat shielding
  • Fatigue limiting designed, silver alloy lead wires
  • Single poly cotton semi-progressive, high excursion spider
  • Paper outer dust cap with acrylic coating
  • Mass loading cap that also strengthens the cone body
  • Under spider ventilation which aids power handling and improves power compression
  • Assembled in the USA

  • V1811 Frequency Response

    The frequency response graph shows how the subwoofer will sound for a given input frequency or tone. Accurate reproduction of the source material is achieved with a flat frequency response as shown in the graph.


    V1811 Compression

    The compression graph indicates how the output of the subwoofer changes as the input signal increases.


    16Hz - 25Hz: 120.1 dB
    31Hz - 50Hz: 129.5 dB
    63Hz - 100Hz: 129.6 dB
    16Hz - 100Hz: 127.4 dB
