S3600i
S3600i
S3600i
S3600i
S3600i

S3600i

Regular price$1,899.99
/

Quantity

DISCONTINUED

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

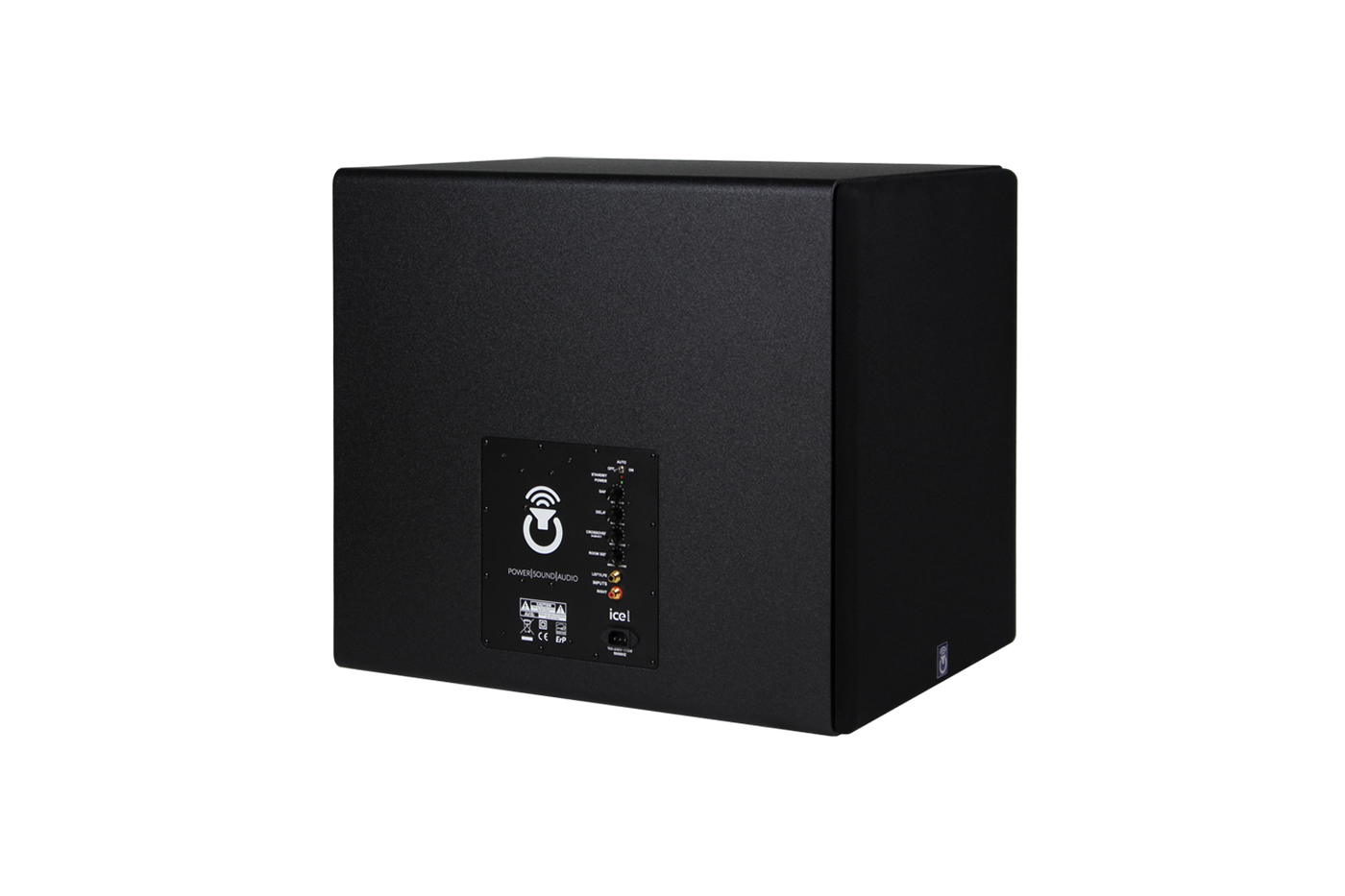

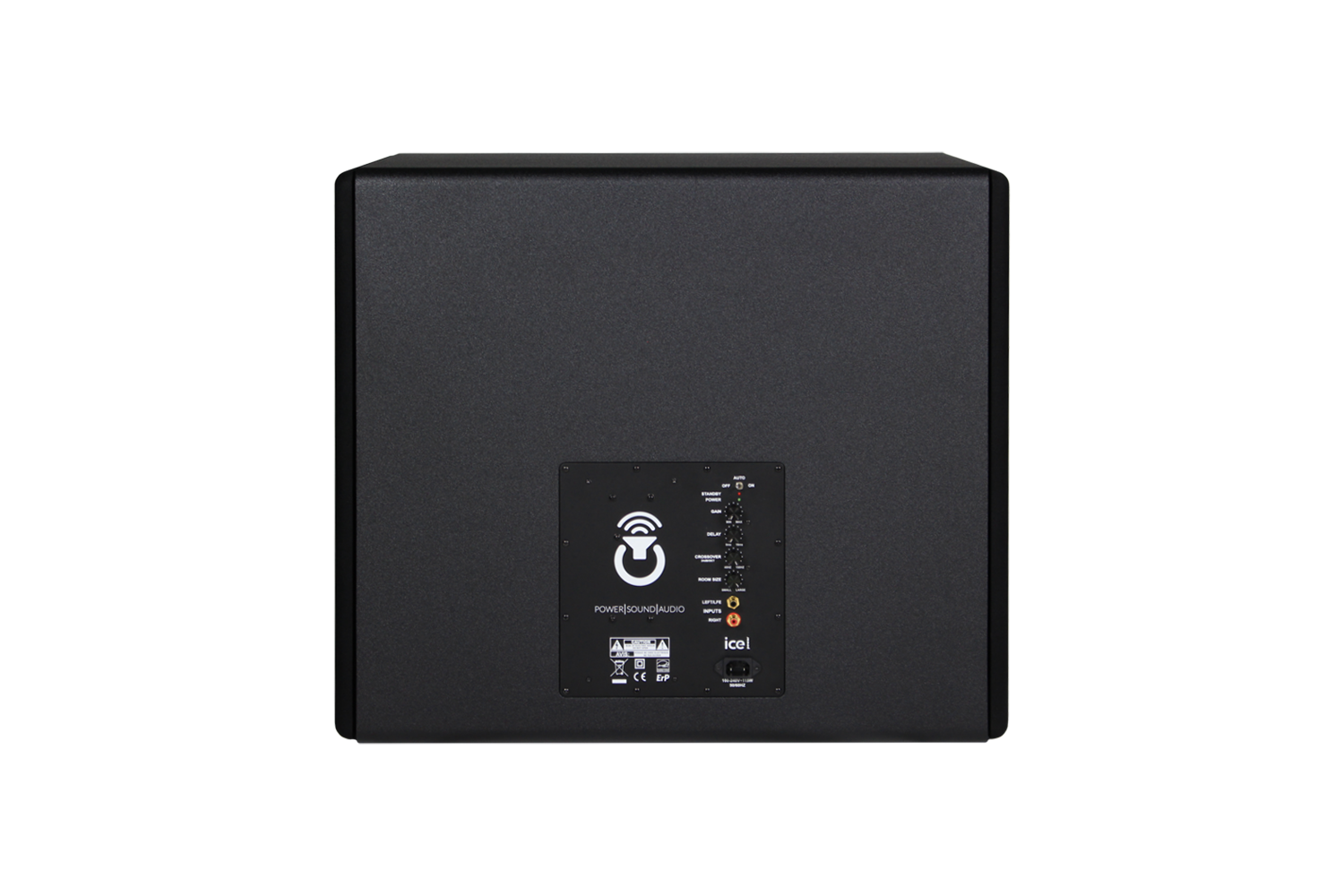

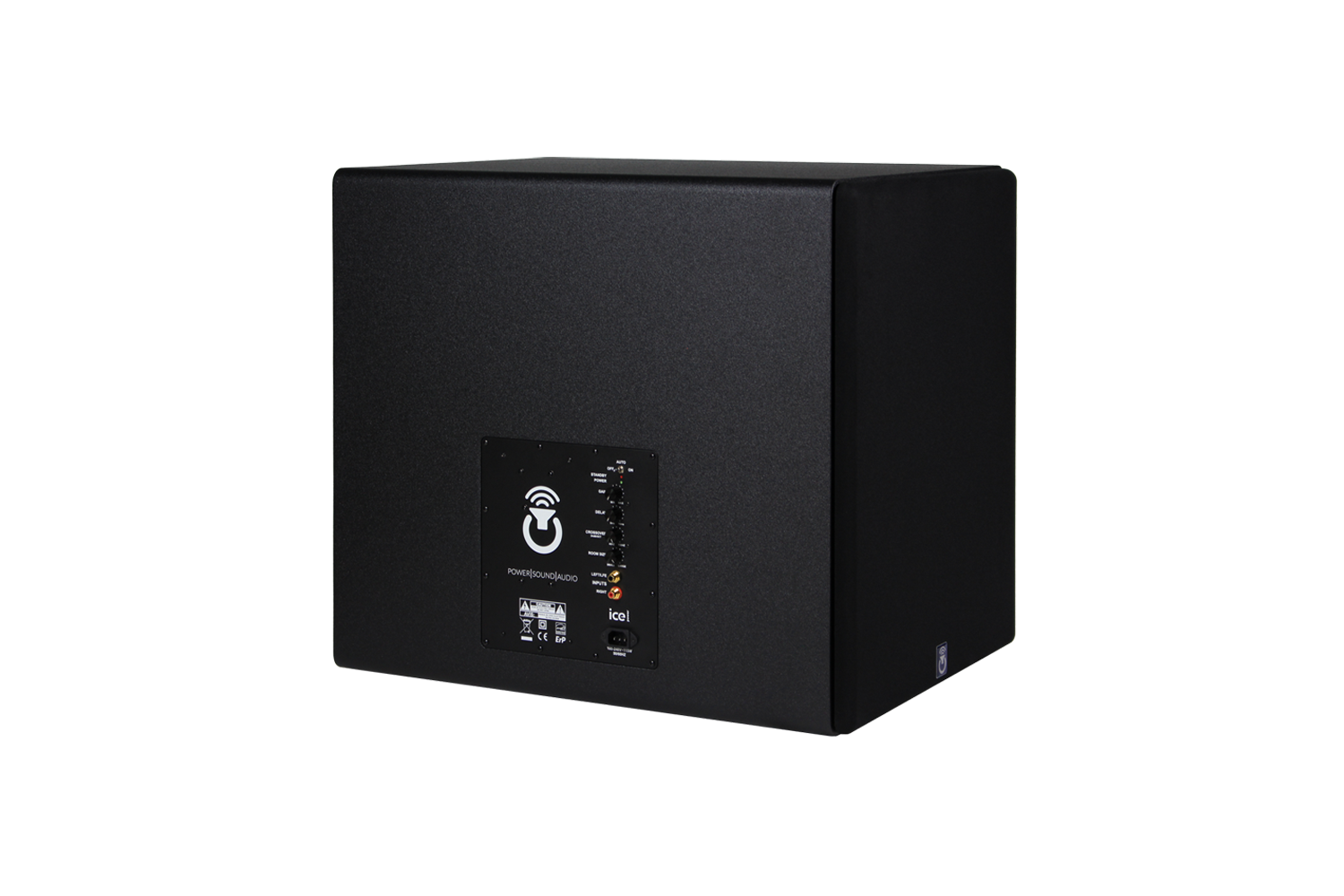

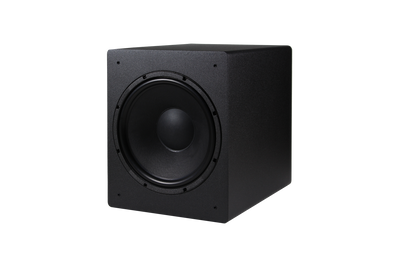

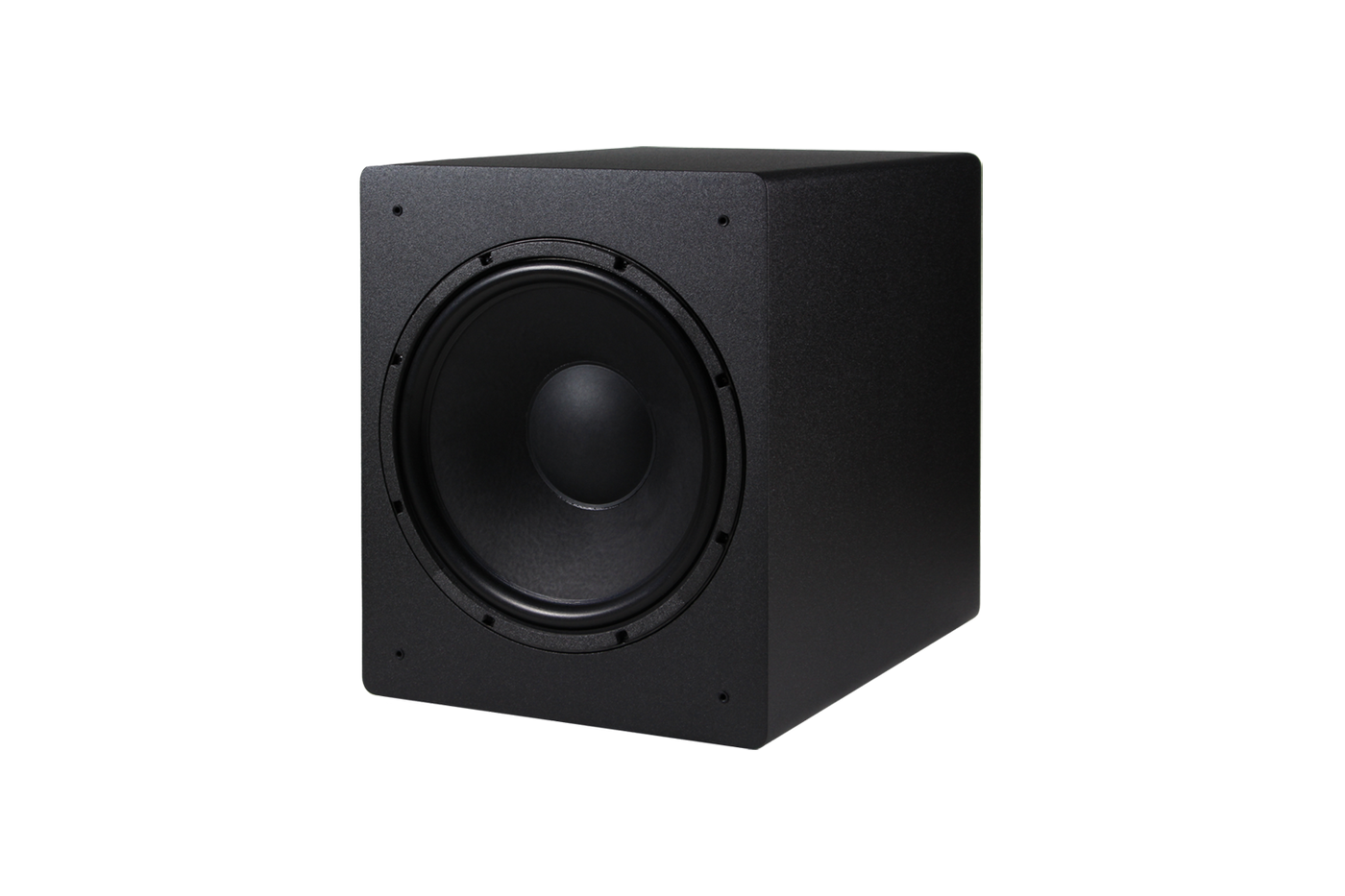

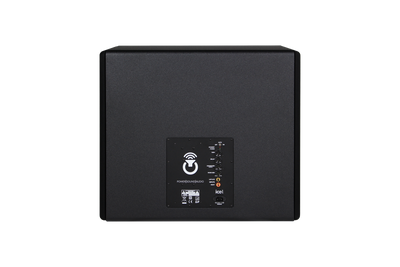

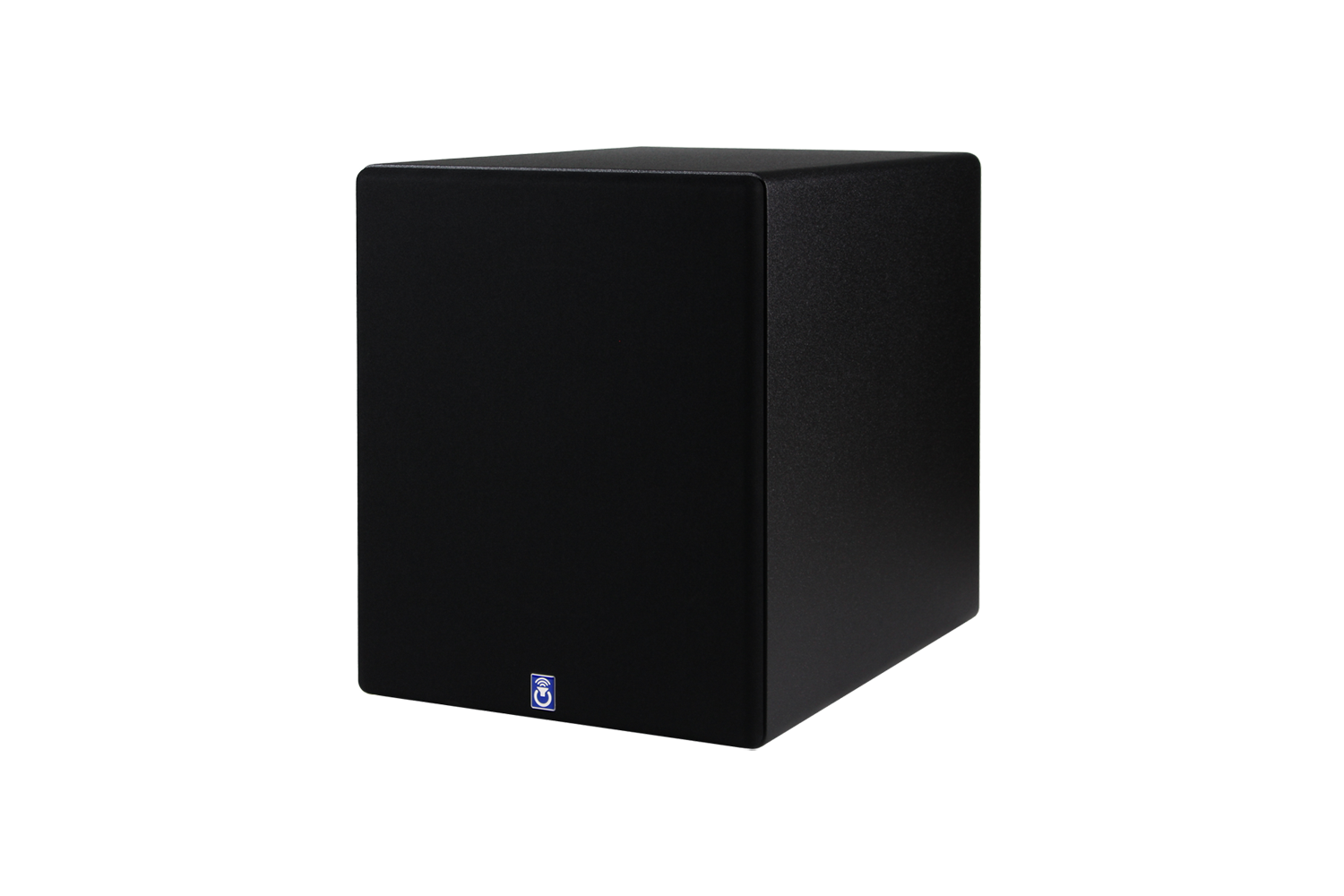

-The S3600i offers an unheard of value in the audio industry. Dual high efficiency 18" drivers, a conservatively rated 1700W amplifier with ICEpower® sound technology, and a brand new dual opposed enclosure that relies on Newton's third law of motion to completely cancel all reactive energy. The end result is a subwoofer that extends into the single digits in all but the largest of rooms, offers vision blurring mid and upper bass capabilities, and does all of this while remaining completely inert.
Design Sealed
Drivers Two, USA built, proprietary 18" drivers with powerful motor strength and efficiency.
Powered Yes
Amp Patented digital ICEpower® 1700W amplifier with DSP control
Enclosure CNC machined MDF
Frequency Response 17Hz-200Hz +/-3dB
In-Room Extension 7Hz-11Hz
Size (DxWxH) 45” x 48” x 35”
Weight 180 lbs

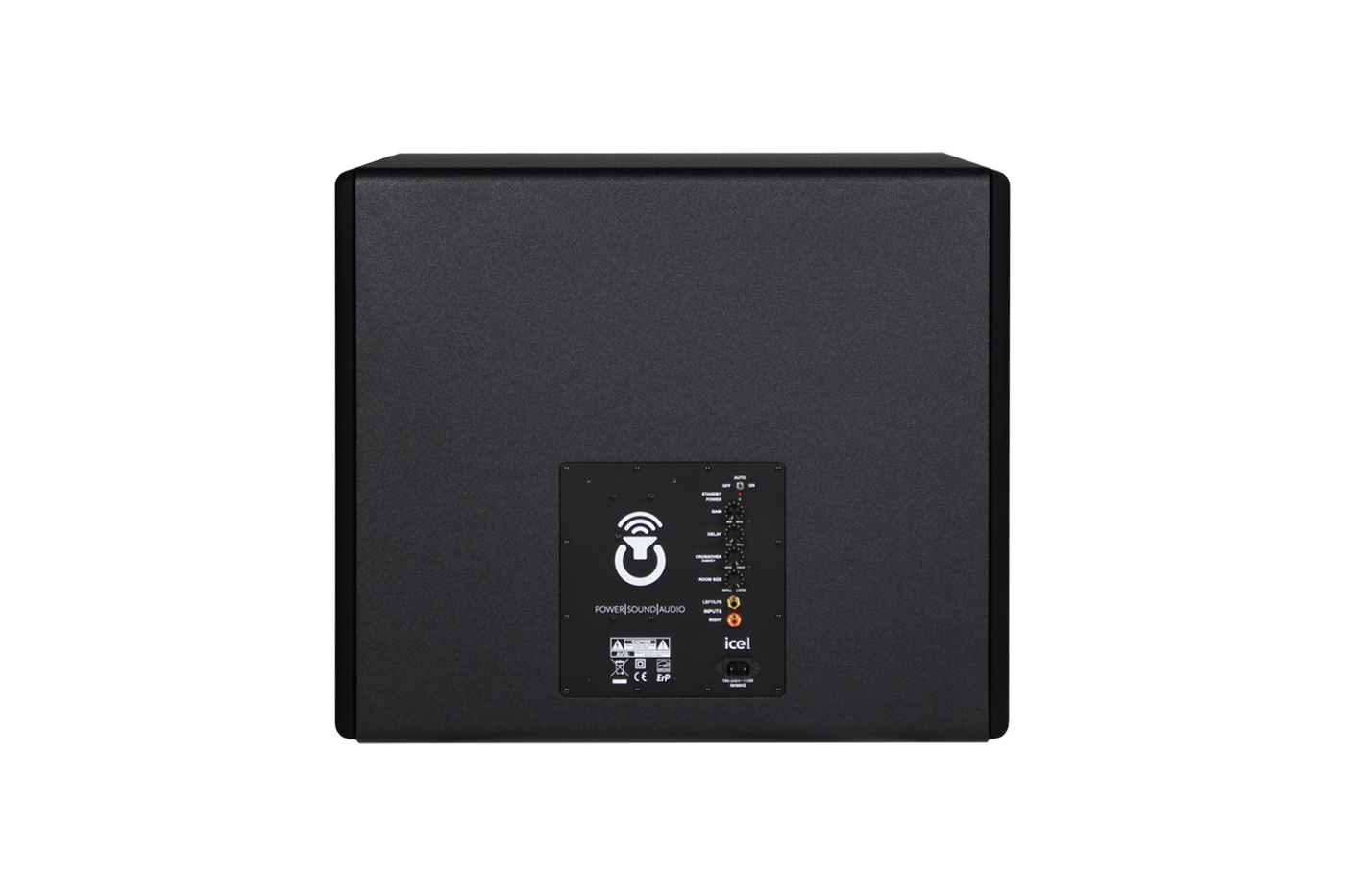

Amp

  • ICEpower® audio technology
  • Amplifier Power: 1700 watts
  • Inputs: Left and Right RCA inputs
  • On, Auto, Off selector
  • Gain control
  • Time delay(phase) control
  • Crossover control
  • Room size control
  • Custom DSP(digital signal processing) enables superior engineering refinement
  • CE and FCC approved; EMC and safety pre-approved
  • Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
  • Patented HCOM modulation and control techniques for unparalleled audio accuracy
  • Sound optimized soft clipping
  • Soft start power up with mute/de-mute.
  • Thermal and over-current protection
  • Standby converter with low standby power consumption (less than 1 watt)
  • Universal mains operation (100-240 V, 50-60 Hz)
  • Standby power consumption 170 mW @ 230 V
  • ErP (1275/2008/EC) compliant
  • Energy Star®v3.0 compliant
  • 117 dBA dynamic range
  • THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
  • THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
  • CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
  • High output current limit of 30 A

  • Cabinet

  • Sealed enclosure

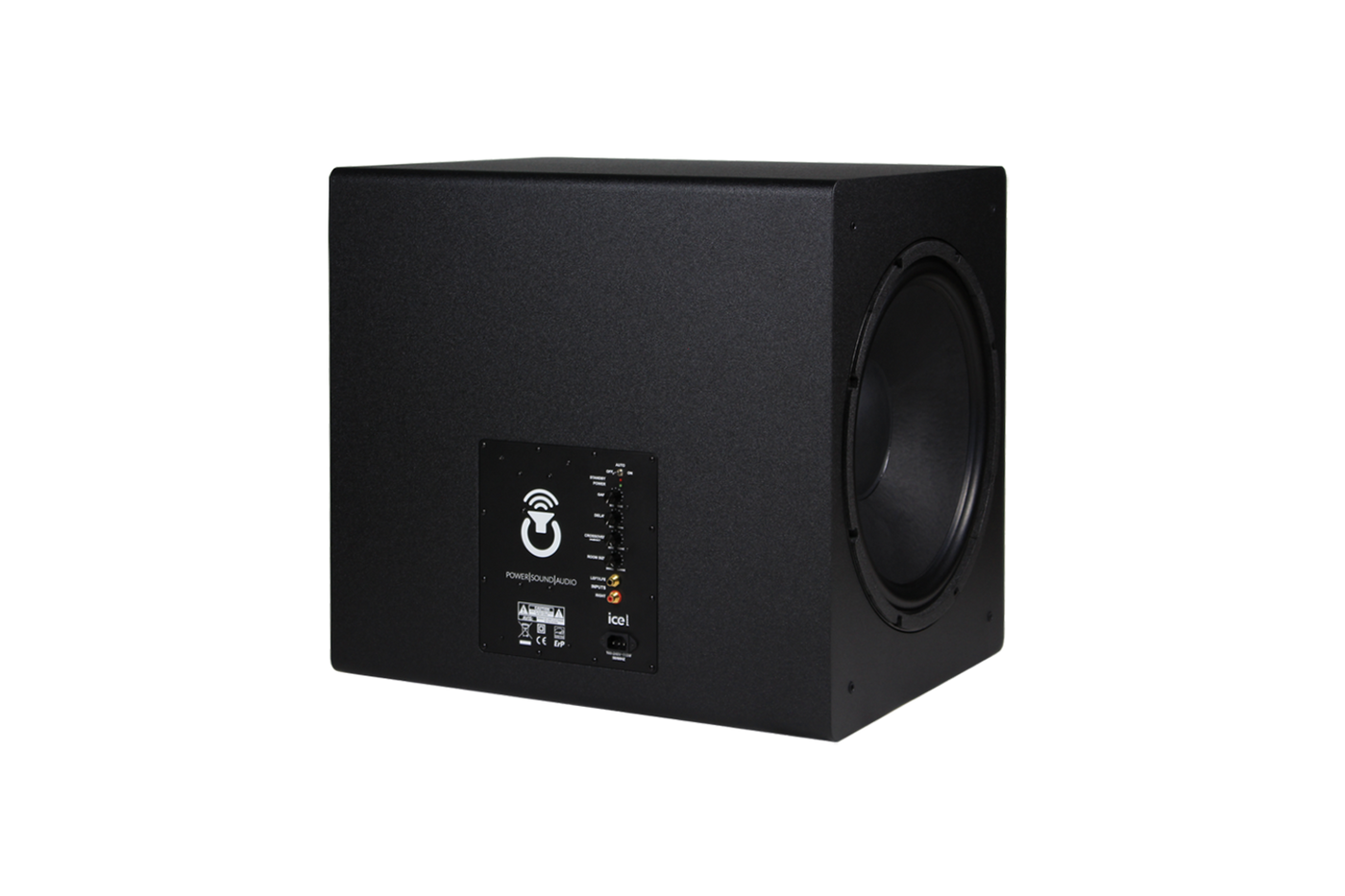

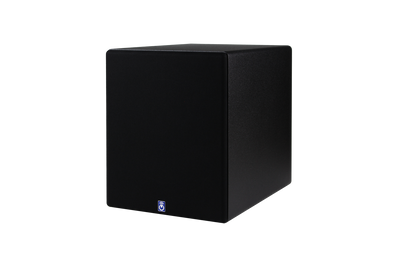

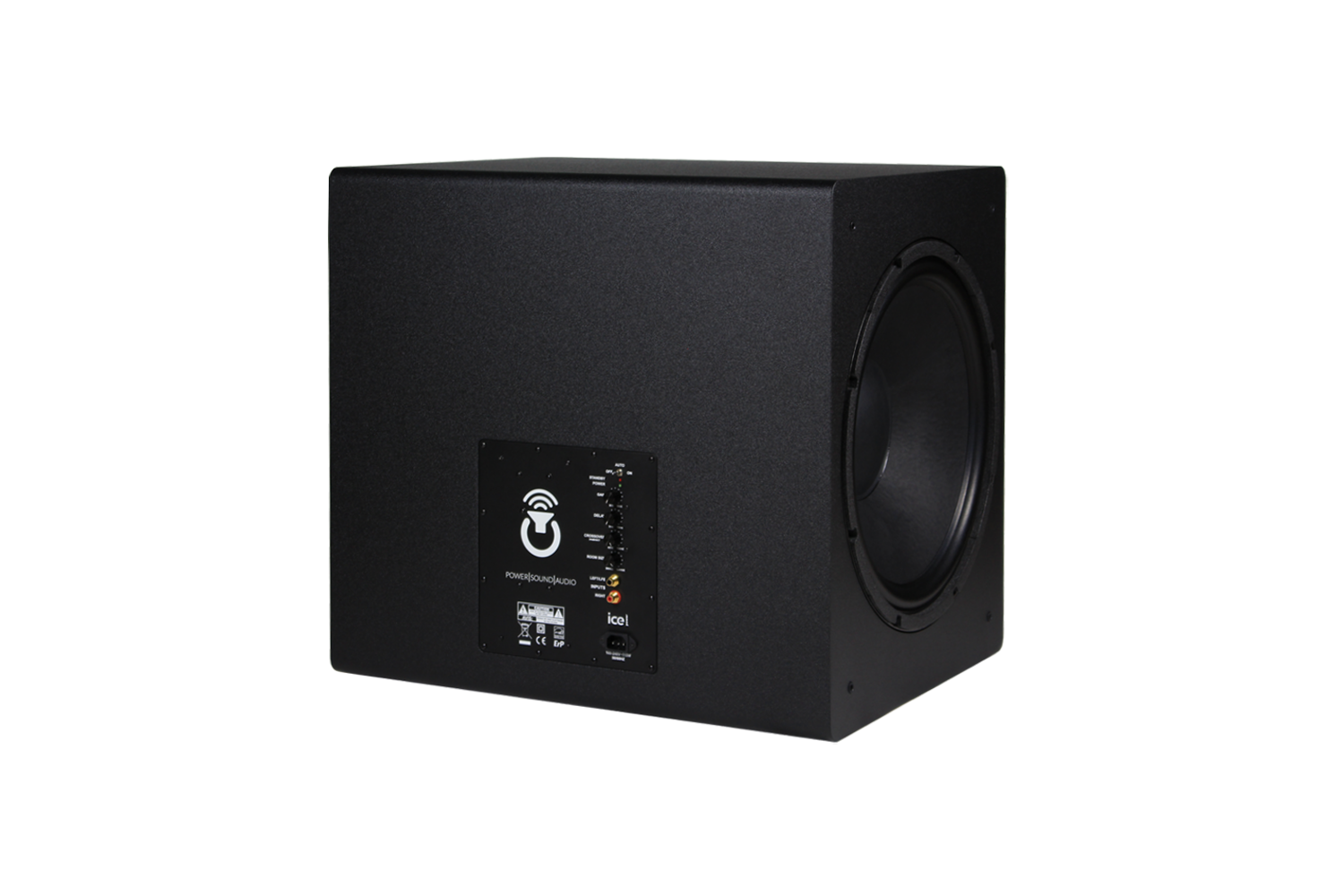

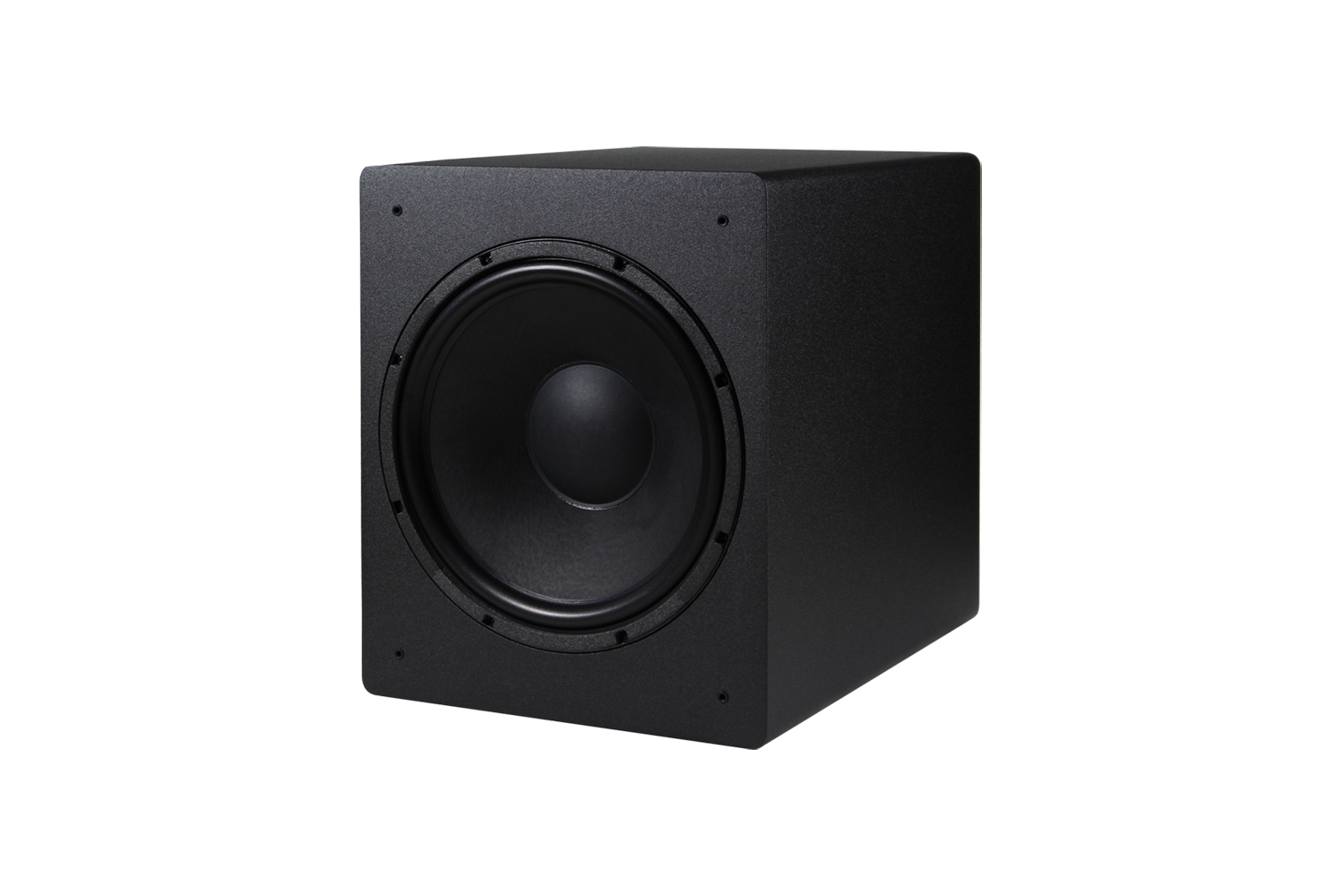

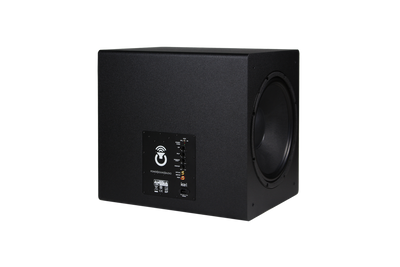

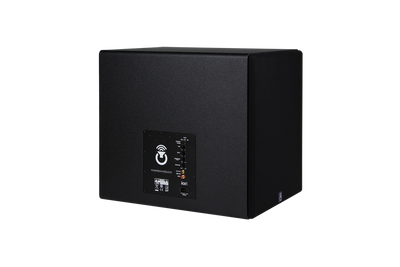

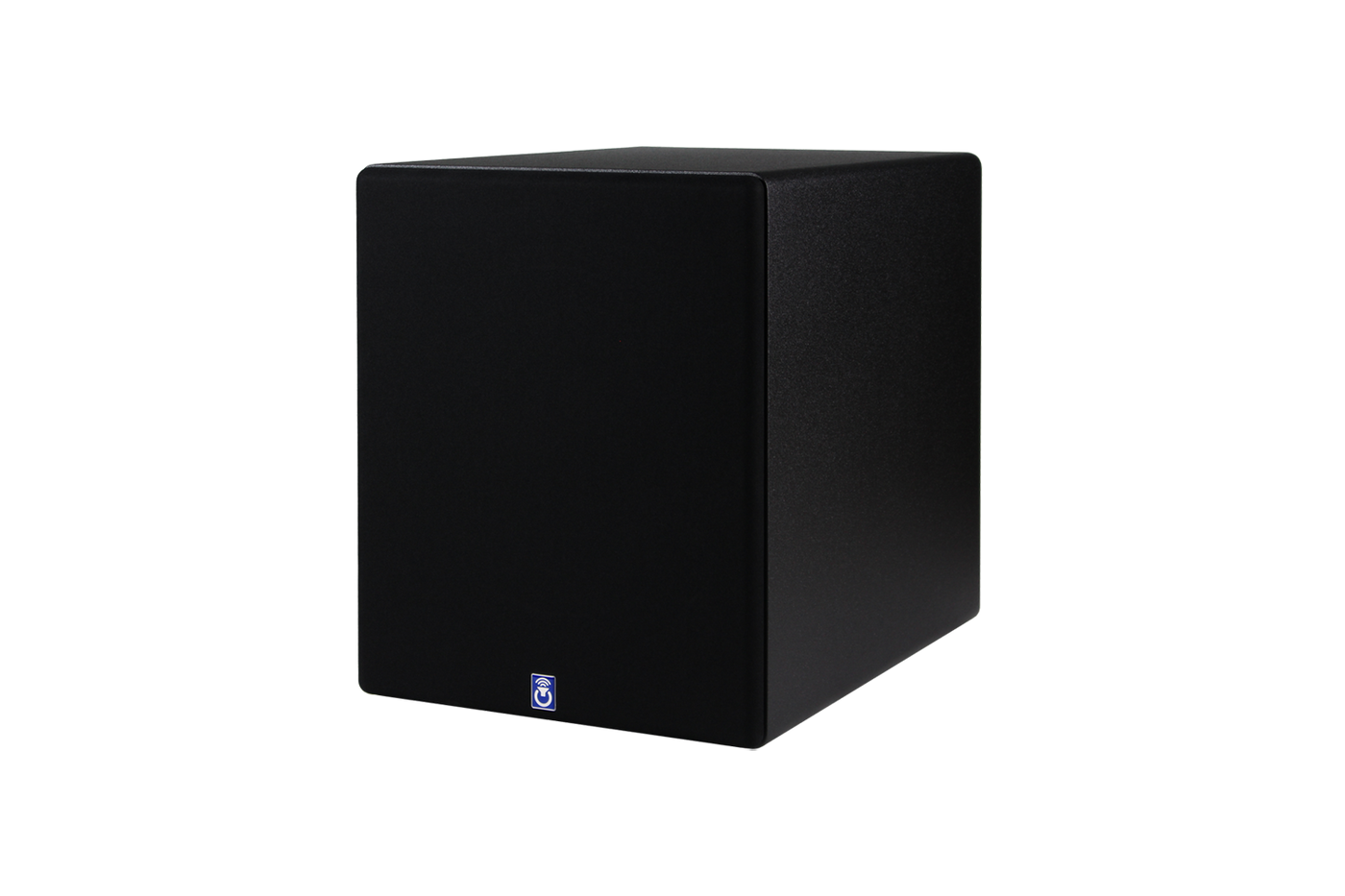

  • Dual opposed, side-firing drivers with grill covers
  • Super durable, black sand textured finish
  • Precision machined CNC panels for perfect fit of all components
  • Rigid MDF baffles
  • Dimensions (D x W x H): 20” x 28” x 24” includes grills
  • Weight: 137 lbs
  • Made in the USA

  • Woofer

  • Two Power Sound Audio proprietary 18” drivers
  • Extended and vented pole geometry
  • Vented back plate to maximize air flow
  • Extremely linear and dynamic motor system
  • Epoxy reinforced cone neck/apex joint
  • Concentric foam surround, treated for longevity
  • Highly treated, rigid paper cone body
  • Die-cast rigid aluminum frame
  • Three inch diameter, four layer copper voice coil wound on a rigid multi-layer aluminum former with Kapton heat shielding
  • Fatigue limiting designed, silver alloy lead wires
  • Single poly cotton semi-progressive, high excursion spider
  • Paper outer dust cap with acrylic coating
  • Inner Mass Loading Cap that also strengthens the cone body
  • Assembled in the USA

  • FREQUENCY RESPONSE

    * 2 meter ground plane (1/3 Octave smoothing)

    LONG TERM OUTPUT COMPRESSION

    The Power Sound Audio S3600i subwoofer showed me that, even after 25 years of reviewing audio products, I haven't heard everything. Nor have I lost my capacity to be surprised, delighted, and a little frightened by a subwoofer.

    In fact, I was surprised that this ability to capture any groove perfectly--or, as many audiophiles would say, get the pace and rhythm right--was one of the things I liked best about the S3600i.

    -Brent Butterworth


    Just a quck update, I was able to spend sometime with my S3600i and it did not disappoint. First off the build quality is top notch, I love the round edges, very classy PSA. I decided to throw some music at the S3600i and it performed like a top notch musical sub should, at first I was thinking there is no way a 18 inch sub should sound this precise with music, no matter the material the S3600i played it accurately with weight that I have never experience before. I then threw some demo movie scenes its way and I was floored by its output and accuracy, every action scene now sounded like it was happening in my room. The S3600i's performance will definitely draw you into the movie. Its output is second to none as action scenes felt like I was involved in a prize fight and my opponent was landing every punch he threw, very impressive. The S3600i will hit and shake you like no other. This sub hits HARD but can also be delicate when called upon.

    Anyone looking to upgrade from a XS30SE, I say go for it. The S3600i is a nicer looking sub with its classy rounded edges and its size is impressive but not too big. It's like a XS30SE on steroids, it just hits so hard and its accuracy\ pitch definition on music and movies are very impressive. Congrats PSA you did it again.

    Mike B. (S3600i) January 6, 2016

    Dual PSA S3600i vs. dual SVS PB13-Ultras – Finding bass nirvana and lessons learned

    I’ve had the good fortune of having a pair of dual SVS PB13-Ultras (with the BASH amps) in my 1,700 (12’ x 16’ x 9’ H) cubic foot room. I’ve run them extensively in 15 Hz, 20 Hz and sealed modes seeking bass bliss. The PB13 Ultras sound great, no denying that – however, I never quite found what I was looking for in a room much, much smaller than most rooms that run with PB13-Ultras in a dual configuration. I’d read so many posts on the various forums describing how dual ultras shook the walls, produced incredible slam, knocked things off shelves in other rooms, completely pressurized the room, etc. Why wasn’t this happening for me?

    PROBLEM SOLVED! – Dual Power Sound Audio PSA S3600i subs

    WOW! I finally found what I was looking for and more. These subs truly rock my room. I finally felt the tactile impact I was looking for with great sound, full room pressurization and a shelf even fell off a cabinet in an adjoining room!

    I was very fortunate to have a couple of true “bassheads” come to my home to demo the S3600is and help compare them with my dual Ultras. These guys have had exposure to some of the best commercial and DIY subs available and have built some awesome subs of their own including the THT, Gjallahorn and Othorn 21”.

    When they arrived, I had the room setup with dual PSA S3600is in a nearfield configuration next to my theater chairs and one of the PB13-Ultras in the front corner of the room running in sealed mode (not it’s optimum mode but I was trying to see if it would blend in as best as possible). With the master volume at -12 dB and the subwoofers with +10 dB gain (-2 dB from reference level bass), we put the “Edge of Tomorrow” Blu-Ray in and hit play. The opening sequence starts with its wave of 30 Hz, 20 Hz and 10 Hz tones with room and sub-wrecking bass to start. Within seconds, we hit the mute button as the PB13-Ultra had reached its limits and we knew it had no chance to hang with the dual S3600is.

    We immediately disconnected the PB13-Ultra knowing that it would be the limiting factor to the whole system, and as part of the system, would never allow us to explore the potential of the S3600is. I asked the question “Why didn’t my dual PB13-Ultras give me the performance I wanted in this room when so many people suggested they would be overkill for such a small room?” Our discussion led us to believe that being on a concrete floor on a lower level took away much of the performance from the Ultras. One of the guys mentioned another person who loved the Ultras on his main floor as they really rocked the house. Later, this same person had to move the system to the lower level on a concrete floor, and was completely disappointed with their performance in the new space. One of the lessons I learned was that with a theater on a concrete floor rather than on a wood floor or riser setup, you will need much more subwoofer capability to give the impact and slam most people here on the forums desire. The other lesson I learned was that there is no substitute for raw displacement. There was simply no way a single 13.5” PB13-Ultra driver is going to keep up with the dual 18” drivers found in each S3600i sub. What was also interesting was that the form factor of the subs was nearly identical in terms of size and footprint which made it very easy to me for sub placement.

    Now that the PB13-Ultra was “knocked out”, we decided to keep pushing to see how far the S3600s would go. We went back to Edge of Tomorrow and kept cranking it up a couple dB at a time. The S3600s weren’t even breaking a sweat when I think we were at Reference +4 dB “hot” on the bass and we tripped the circuit breaker. I found out that a 15-amp circuit does not support a single light bulb, a projector and two S3600s.

    I found an extension cord and another circuit for one of the S3600s, put the projector and the other S3600l on another circuit and the rest of my audio gear on a third circuit and we got back to testing the 3600s. I don’t recall how far we pushed it with the other movies we tried but the sound and room pressurization were incredible for everything we played. At no time did it even seem we were close to the limits of these subs in my room. We put our hands next to the cones of the subwoofers and didn’t feel things heating up and found the amp starting to warm up but not overly hot. I think we had a long way to go in pushing them with plenty of headroom to play with if I so choose.

    We then decided to dive into some music. We started off with the Eagle’s Farewell – Live From Melbourne on Blu-Ray with Hotel California. For this, we dialed the bass way, way back to a level suitable for music. The S3600s kept up very nicely with the music and sounded great. We then moved onto some solid bass demo music. Now it was time to seriously crank up the bass. It was absolutely crazy as the room began to shake, the pressurization further increased, the chest slam was coming hard and we began to laugh as the image from my projector started to bounce around and go in and out of focus – hilarious! While my friends had experienced this (and more) previously, I had never experienced such crazy bass. We kept pumping up the volume to master level 0 dB with the subs gain at +10 dB. The subs still weren’t breaking a sweat and my fellow bassheads kept coaxing me on with a thumbs up to turn up the volume. We kept going a to master level 0 dB, sub gain +10 dB and trims +4 dB when my Denon AVR-X4100 went into protective mode and shut down as I was probably driving my other 5 main, center and surround speakers too hard. After already tripping the breakers earlier, we started laughing as we still hadn’t found the limits of the S3600s. Unbelievable!

    By this time, we had been at it nearly 3 hours and we had to finish. I think we all left feeling that PSA had put together a tremendous sub for the money, that sounded great and was a wonderful fit for my room. I wanted to make sure I wasn’t going to ever have further sub envy and we discussed a number of other competitive subs and agreed that short of a much larger commercial or DIY sub, the S3600 was an incredible value and tough to beat. The dual 3600s are about 20% less expensive than a set of new dual PB13-Ultras and simply left them in the dust performance wise. Tom Vodhanel from Power Sound Audio was wonderful in answering the many questions I had prior to purchasing the subs and even managed to ship the subs the same day I ordered them. Great customer service! Top this all off with a 30-day trial period and a 5-year warranty – that’s hard to beat.

    My hunt for subs is now over – the dual S3600i subs are incredible and give me everything I could ask for. I am absolutely thrilled with them and highly recommend them!

    Rich (2-S3600i) April 25, 2016
