Regular price$2,799.99
/

Quantity
Auto Subwoofer EQ

DISCONTINUED

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.


-Dual opposing 18 inch drivers fire from each side of the S3612 to produce dynamic levels of bass that will fill your home theater with cinema-quality sound. Prepare to awe your friends and family with the S3612 home audio powered subwoofer.

-The S3612 subwoofer is powered by a 1920W RMS (4300W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. Two acoustically transparent fabric grilles cover each side-firing 18 inch subwoofer driver. The amplifier is mounted on the rear baffle.

-The S3612 contains two 18 inch neodymium subwoofer drivers from B&C in Italy. This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is more energy in the gap, less heat, higher sensitivity, higher power handling, lower distortion and better overall performance.
Design Vented
Drivers Two 18" Extreme Duty Woofers
Powered Yes
Amp 1920W RMS (4300W PEAK)
Enclosure CNC machined MDF
Frequency Response 17Hz-200Hz Anechoic (+/-3dB)
In-Room Extension 7Hz-11Hz
Size (DxWxH) 20" x 28" x 24" with grilles
Weight 137 lbs

Amp

  • ICEpower® audio technology
  • Amplifier Power: 1920 watts
  • Inputs: Left and Right RCA
  • Inputs: Left and Right XLR
  • 12V Trigger
  • On, Auto, Off selector
  • Gain control
  • Time delay(phase) control
  • Crossover control
  • Room size control
  • Custom DSP(digital signal processing) enables superior engineering refinement
  • CE and FCC approved; EMC and safety pre-approved
  • Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
  • Patented HCOM modulation and control techniques for unparalleled audio accuracy
  • Sound optimized soft clipping
  • Soft start power up with mute/de-mute.
  • Thermal and over-current protection
  • Standby converter with low standby power consumption (less than 1 watt)
  • Universal mains operation (100-240 V, 50-60 Hz)
  • Standby power consumption 170 mW @ 230 V
  • ErP (1275/2008/EC) compliant
  • Energy Star®v3.0 compliant
  • 117 dBA dynamic range
  • THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
  • THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
  • CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
  • High output current limit of 30 A
  • Assembled by Power Sound Audio

  • Cabinet

  • Sealed Enclosure
  • Side-firing drivers
  • Reactive force canceling driver array
  • Acoustically transparent fabric grille covers
  • Super durable, black sand textured finish
  • Precision machined CNC panels
  • Rigid MDF baffles
  • Heavily braced

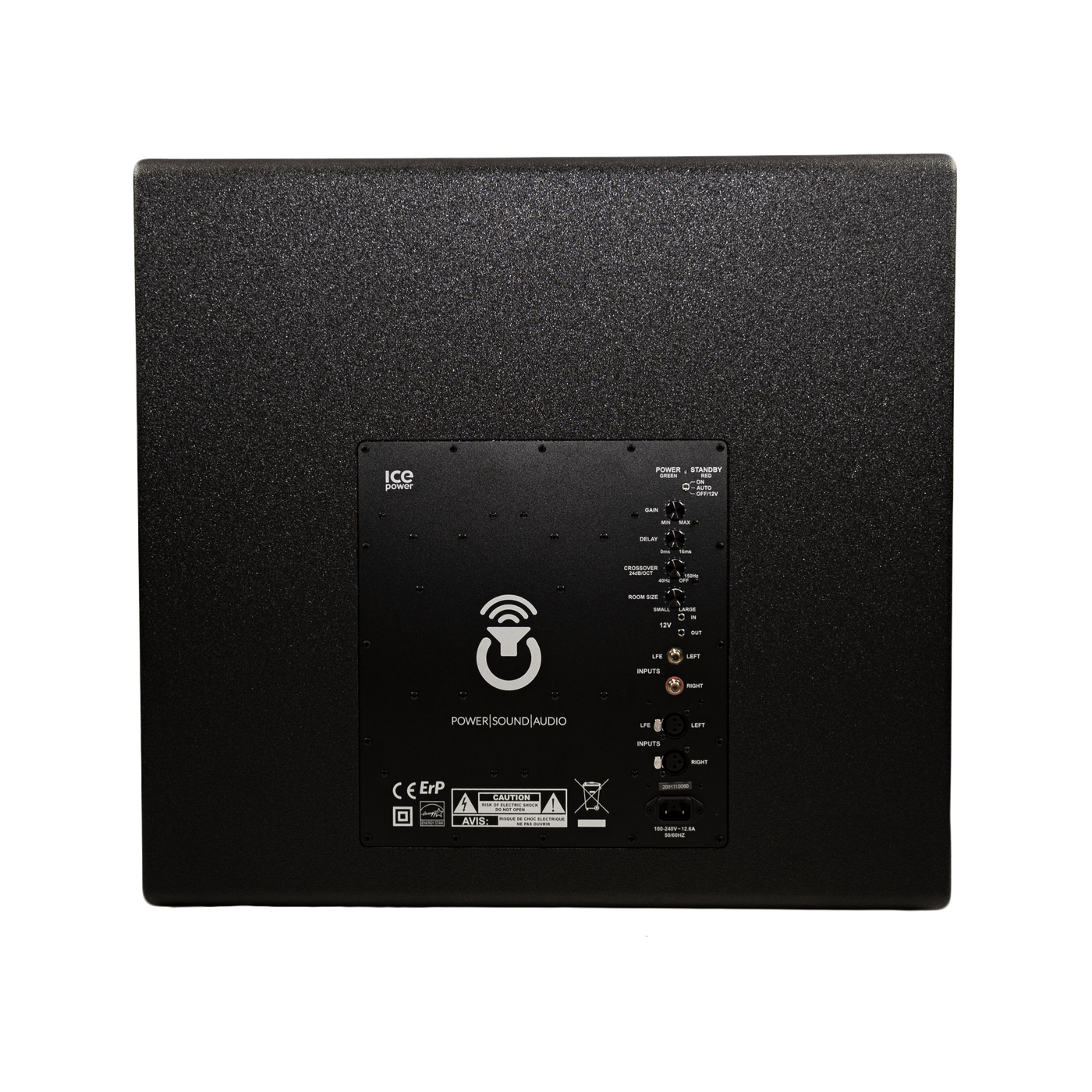

  • Rear mounted amplifier
  • USA manufactured rubber feet
  • Dimensions (DxWxH): 20"x28"x24" includes grilles
  • Weight: 137 lbs
  • Cabinet Made in the USA

  • Woofer

  • 3000 W continuous program power capacity
  • 100mm (4 in.) four layer aluminum voice coil
  • 98 dB sensitivity
  • Neodymium magnet allows a very high force factor and linear excursion
  • Double silicon spider with optimized compliance
  • Ventilated voice coil gap for reduced power compression
  • Aluminium demodulation ring for very low distortion
  • 18ds115%20000%20etc%2001
