The V1510 powered home theater subwoofer will satisfy your cravings for deep accurate bass. Feel the impact the potent V1510 subwoofer delivers during your favorite Hollywood action flick.
Design Vented Driver 15" High Excursion Powered Yes Amp 960W RMS (2100W PEAK) Enclosure CNC machined MDF Frequency Response 16Hz-200Hz +/-3dB In-Room Extension 11Hz-14Hz Size (DxWxH) 24" x 17" x 25" Weight 86 lbs
The V1510 subwoofer is powered by a 960W RMS (2100W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

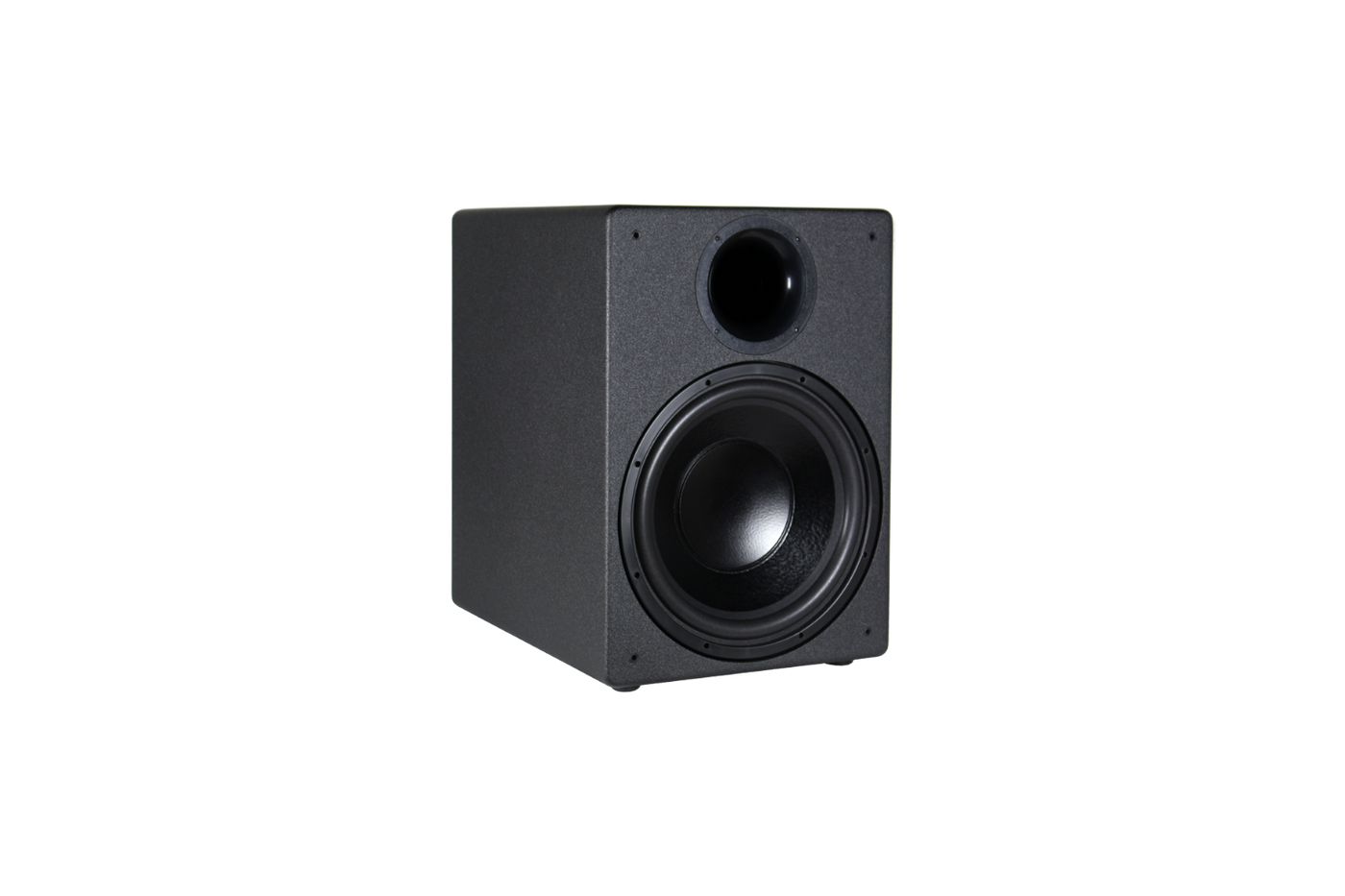

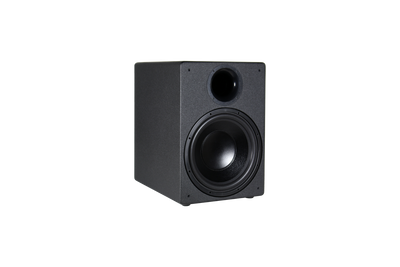

The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. The front-firing 15 inch subwoofer driver and 4 inch Precision Port™ are mounted to the front baffle of the enclosure, and covered with an acoustically transparent grille. The amplifier mounted to the rear baffle.
The V1510 contains a 15 inch subwoofer driver, which is capable of moving massive amounts of air. The 1 inch surround and poly cotton semi-progressive, high excursion spider allow the cone to move more than 2 inches peak to peak. The cast aluminum frame is mounted to the extremely linear and dynamic motor system, which provides the power to drive the cone in a symmetrical motion.
- ICEpower® audio technology
- Amplifier Power: 960 watts
- Inputs: Left and Right RCA
- Inputs: Left and Right XLR
- 12V Trigger
- On, Auto, Off selector
- Gain control
- Time delay(phase) control
- Crossover control
- Room size control
- Custom DSP(digital signal processing) enables superior engineering refinement
- CE and FCC approved; EMC and safety pre-approved
- Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
- Patented HCOM modulation and control techniques for unparalleled audio accuracy
- Sound optimized soft clipping
- Soft start power up with mute/de-mute.
- Thermal and over-current protection
- Standby converter with low standby power consumption (less than 1 watt)
- Universal mains operation (100-240 V, 50-60 Hz)
- Standby power consumption 170 mW @ 230 V
- ErP (1275/2008/EC) compliant
- Energy Star®v3.0 compliant
- 117 dBA dynamic range
- THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
- THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
- CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
- High output current limit of 30 A
- Assembled by Power Sound Audio
- Vented Enclosure
- Front-firing driver
- Acoustically transparent grille
- Front mounted 4 inch Precision Port™
- Super durable, black sand textured finish
- Precision machined CNC panels
- Rigid MDF baffles
- Heavily braced
- Rear mounted amplifier
- USA manufactured rubber feet
- Dimensions (DxWxH): 24"x17"x25"
- Weight: 86 lbs
- Made in the USA
- Power Sound Audio proprietary 15” driver
- Extended and vented pole geometry
- Vented back plate to maximize air flow
- Double stacked 80oz. ferrite magnets
- Extremely linear and dynamic motor system
- Epoxy reinforced cone neck/apex joint
- Concentric foam surround, treated for longevity
- Highly treated, Kevlar-reinforced rigid paper cone body
- Die-cast, twelve spoke, rigid aluminum frame with under spider cooling vents
- Three inch diameter, four layer copper voice coil wound on a rigid multi-layer aluminum former with Kapton heat shielding
- Fatigue limiting designed, silver alloy lead wires
- Single poly cotton semi-progressive, high excursion spider
- Paper outer dust cap with acrylic coating
- Assembled in the USA
V1510 Frequency Response
The frequency response graph shows how the subwoofer will sound for a given input frequency or tone. Accurate reproduction of the source material is achieved with a flat frequency response as shown in the graph.
The compression graph indicates how the output of the subwoofer changes as the input signal increases.
16Hz - 25Hz: 116.7 dB 31Hz - 50Hz: 124.5 dB 63Hz - 100Hz: 126.7 dB 16Hz - 100Hz: 123.8 dB
