DISCONTINUED
Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

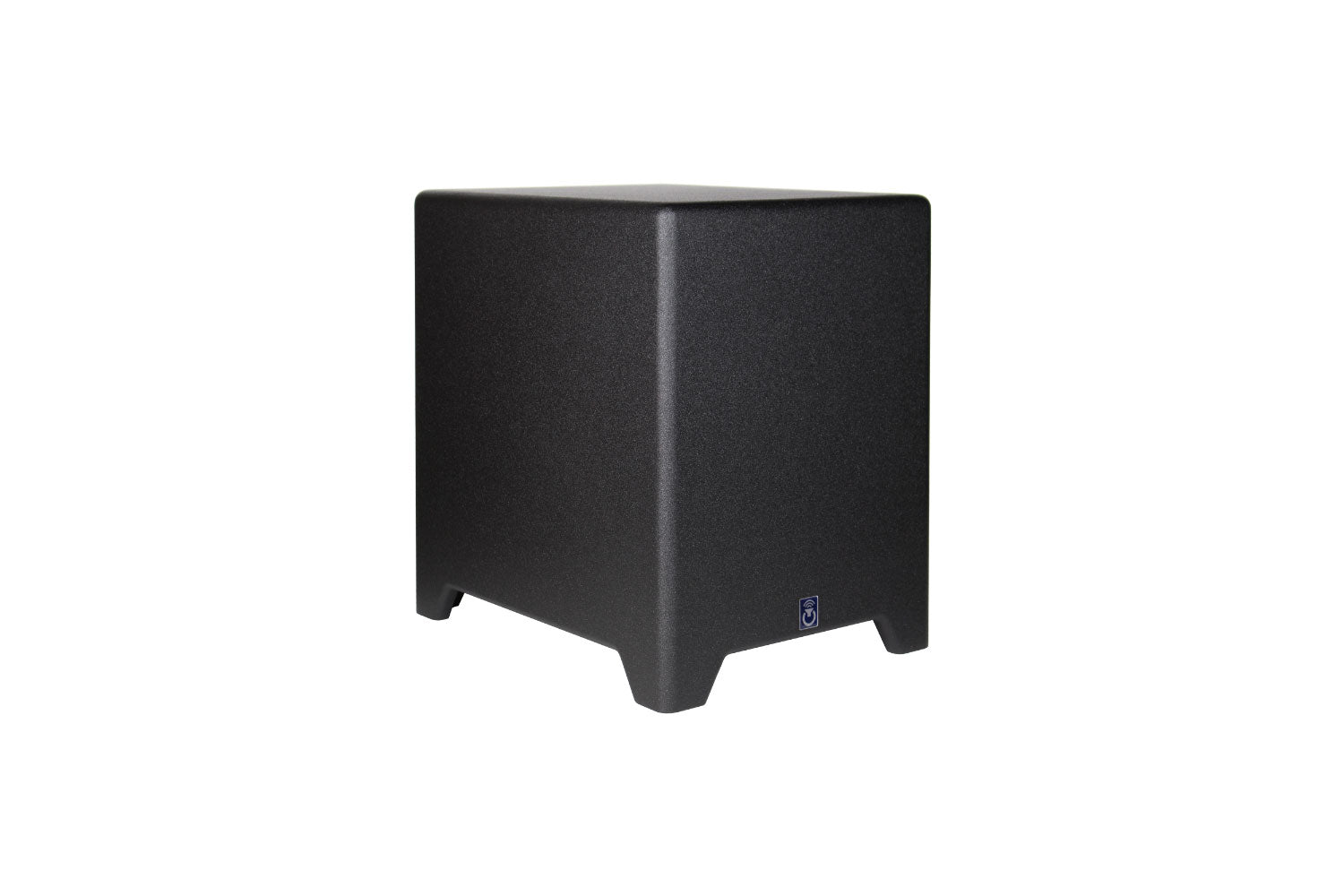

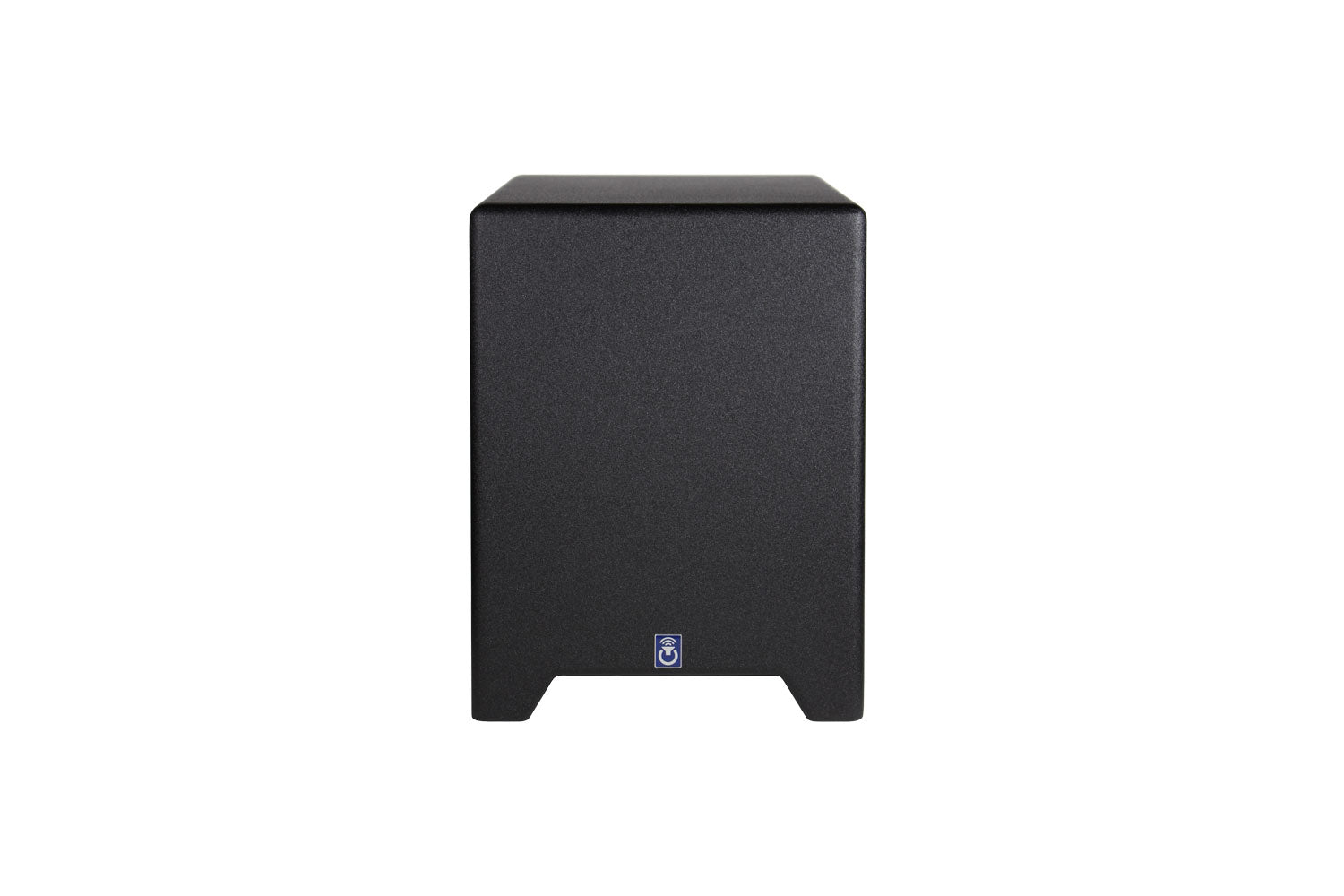

-The V1510DF powered home theater subwoofer is a class leader when compared to subwoofers priced under $1000. Bring your music and movie collection to the next level with the V1510DF subwoofer.
-The V1510DF subwoofer is powered by a 960W RMS (2100W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.
-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. The down-firing 15 inch subwoofer driver is mounted to the bottom baffle of the enclosure, with the port and amplifier mounted to the rear baffle.
-The V1510DF contains a 15 inch subwoofer driver, which is capable of moving massive amounts of air. The 1 inch surround and poly cotton semi-progressive, high excursion spider allow the cone to move more than 2 inches peak to peak. The cast aluminum frame is mounted to the extremely linear and dynamic motor system, which provides the power to drive the cone in a symmetrical motion.
| Design | Vented |
|---|---|
| Drivers | 15" High Excursion |
| Powered | Yes |
| Amp | 960W RMS (2100W PEAK) |
| Enclosure | CNC machined MDF |
| Frequency Response | 18Hz-200Hz +/-3dB |
| In-Room Extension | 14Hz-16Hz |
| Size (DxWxH) | 22" x 17.25" x 23" |
| Weight | 79 lbs |
Amp
-ICEpower® audio technology-Amplifier Power: 960 watts
-Inputs: Left and Right RCA
-Inputs: Left and Right XLR
-12V Trigger
-On, Auto, Off selector
-Gain control
-Time delay(phase) control
-Crossover control
-Room size control
-Custom DSP(digital signal processing) enables superior engineering refinement
-CE and FCC approved; EMC and safety pre-approved
-Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
-Patented HCOM modulation and control techniques for unparalleled audio accuracy
-Sound optimized soft clipping
-Soft start power up with mute/de-mute.
-Thermal and over-current protection
-Standby converter with low standby power consumption (less than 1 watt)
-Universal mains operation (100-240 V, 50-60 Hz)
-Standby power consumption 170 mW @ 230 V
-ErP (1275/2008/EC) compliant
-Energy Star®v3.0 compliant
-117 dBA dynamic range
-THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
-THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
-CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
-High output current limit of 30 A
-Assembled by Power Sound Audio
Cabinet
-Vented Enclosure-Down-firing driver
-Rear mounted 4 inch Precision Port™
-Super durable, black sand textured finish
-Precision machined CNC panels
-Rigid MDF baffles
-Heavily braced
-Rear mounted amplifier
-USA manufactured rubber feet
-Dimensions (DxWxH): 22"x17.25"x23"
-Weight: 79 lbs
-Made in the USA
Woofer
-Power Sound Audio proprietary 15” driver-Extended and vented pole geometry
-Vented back plate to maximize air flow
-Double stacked 80oz. ferrite magnets
-Extremely linear and dynamic motor system
-Epoxy reinforced cone neck/apex joint
-Concentric foam surround, treated for longevity
-Highly treated, Kevlar-reinforced rigid paper cone body
-Die-cast, twelve spoke, rigid aluminum frame with under spider cooling vents
-Three inch diameter, four layer copper voice coil wound on a rigid multi-layer aluminum former with Kapton heat shielding
-Fatigue limiting designed, silver alloy lead wires
-Single poly cotton semi-progressive, high excursion spider
-Paper outer dust cap with acrylic coating
-Assembled in the USA
V1510DF Frequency Response
The frequency response graph shows how the subwoofer will sound for a given input frequency or tone. Accurate reproduction of the source material is achieved with a flat frequency response as shown in the graph.
V1510DF Compression
The compression graph indicates how the output of the subwoofer changes as the input signal increases.
| 16Hz - 25Hz: | 115.8 dB |
|---|---|
| 31Hz - 50Hz: | 124.0 dB |
| 63Hz - 100Hz: | 126.3 dB |
| 16Hz - 100Hz: | 123.2 dB |
