DISCONTINUED
Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.
-Push your theater to its limits with the V3612 home theater powered subwoofer. This powerful vented home theater subwoofer delivers clean dynamic output deep into the lowest frequencies. You will stop wondering if you bought enough subwoofer once you hear the V3612.
-The V3612 subwoofer is powered by a 1920W RMS (4300W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

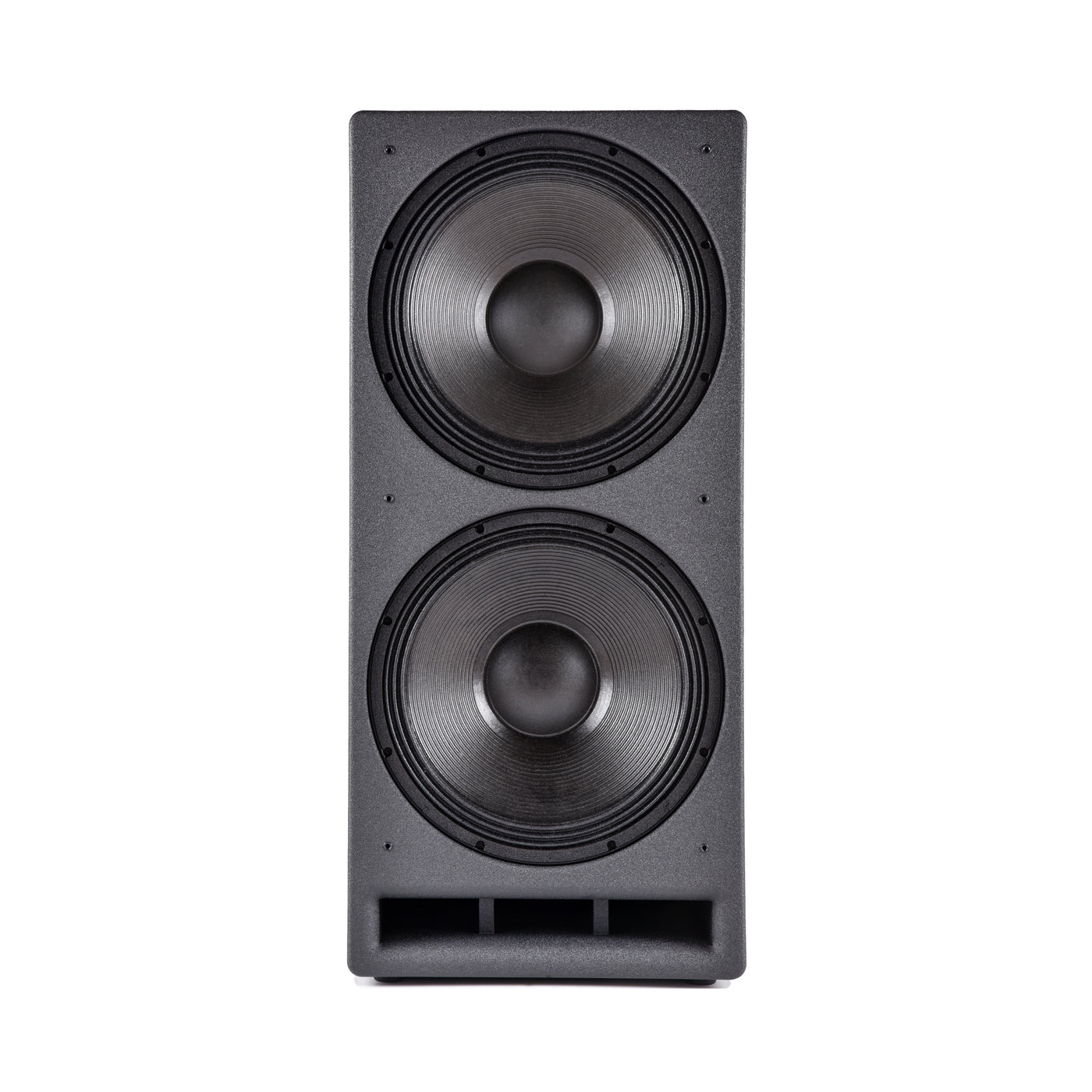

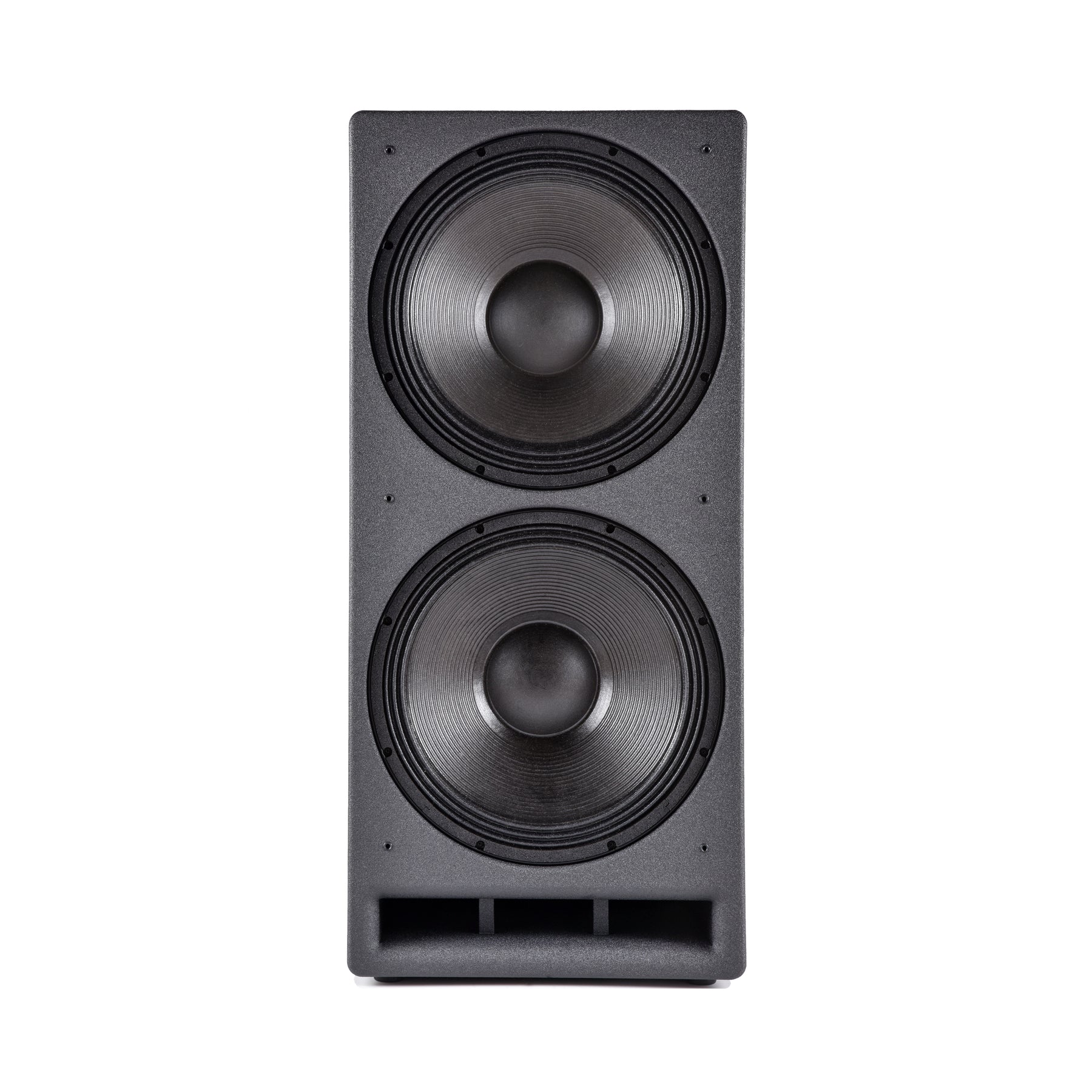

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. An acoustically transparent fabric grille covers both front-firing 18 inch subwoofer drivers. A high flow slot port with an egde radius is located just below the bottom driver on the front baffle. The amplifier is mounted on the rear baffle.
-The V3612 contains two 18 inch neodymium subwoofer drivers from B&C in Italy. This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is more energy in the gap, less heat, higher sensitivity, higher power handling, lower distortion and better overall performance.
| Design | Vented |
|---|---|
| Drivers | Two 18" Extreme Duty Woofers |
| Powered | Yes |
| Amp | 1920W RMS (4300W PEAK) |
| Enclosure | CNC machined MDF |
| Frequency Response | 16Hz-200Hz Anechoic (+/-3dB) |
| In-Room Extension | 11Hz-14Hz |
| Size (DxWxH) | 25" x 20" x 44" with grille |
| Weight | 196 lbs |
Amp
-ICEpower® audio technology-Amplifier Power: 1920 watts
-Inputs: Left and Right RCA
-Inputs: Left and Right XLR
-12V Trigger
-On, Auto, Off selector
-Gain control
-Time delay(phase) control
-Crossover control
-Room size control
-Custom DSP(digital signal processing) enables superior engineering refinement
-CE and FCC approved; EMC and safety pre-approved
-Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
-Patented HCOM modulation and control techniques for unparalleled audio accuracy
-Sound optimized soft clipping
-Soft start power up with mute/de-mute.
-Thermal and over-current protection
-Standby converter with low standby power consumption (less than 1 watt)
-Universal mains operation (100-240 V, 50-60 Hz)
-Standby power consumption 170 mW @ 230 V
-ErP (1275/2008/EC) compliant
-Energy Star®v3.0 compliant
-117 dBA dynamic range
-THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
-THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
-CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
-High output current limit of 30 A
-Assembled by Power Sound Audio
Cabinet
-Vented Enclosure-Front-firing drivers
-Massive slot port with edge radius

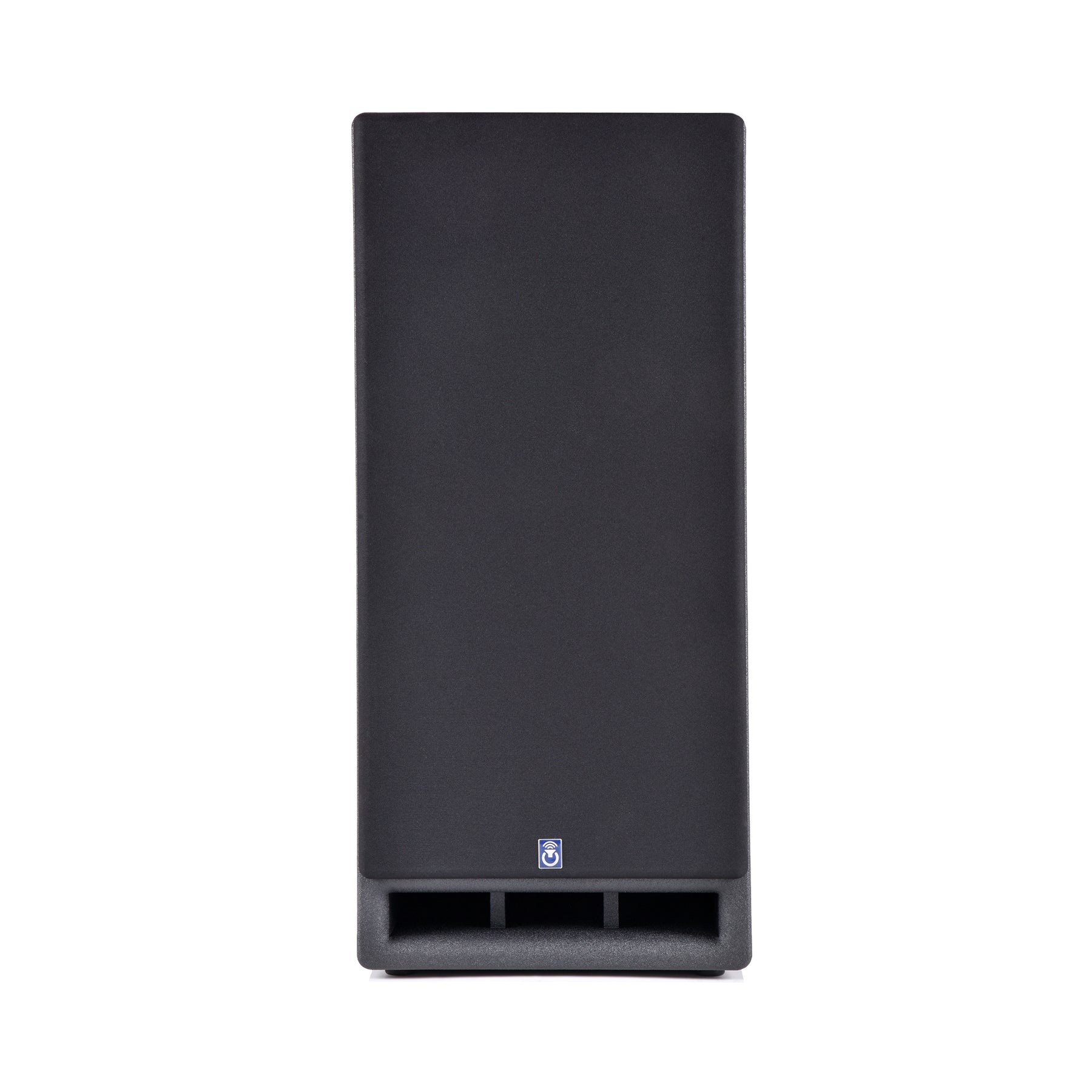

-Acoustically transparent fabric grille cover
-Super durable, black sand textured finish
-Precision machined CNC panels
-Rigid MDF baffles
-Heavily braced

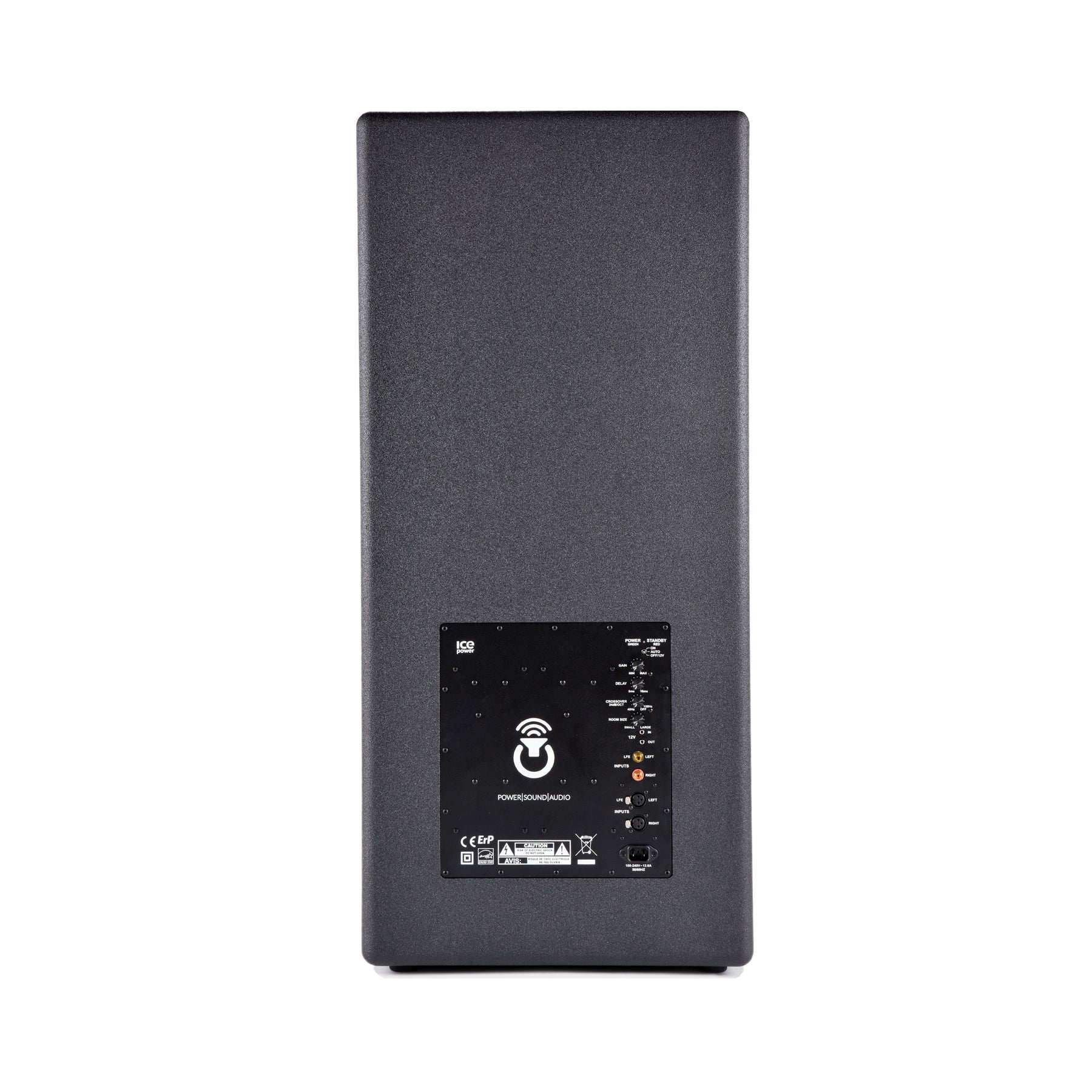

-Rear mounted amplifier
-USA manufactured rubber feet
-Dimensions (DxWxH): 25"x20"x44" includes grille
-Weight: 196 lbs
-Cabinet Made in the USA
Woofer
-3000 W continuous program power capacity-100mm (4 in.) four layer aluminum voice coil
-98 dB sensitivity
-Neodymium magnet allows a very high force factor and linear excursion
-Double silicon spider with optimized compliance
-Ventilated voice coil gap for reduced power compression
-Aluminium demodulation ring for very low distortion
