DISCONTINUED
Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.
-The XS30 is moderately sized with a midbass "slam" factor that will leave you gasping for breath. In all but very large rooms, the XS30 will extend into single digits, creating a realistic sound field from almost any source material.
-The XS30 subwoofer is powered by a 725W RMS (1450W PEAK) built-in amplifier with BASH® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

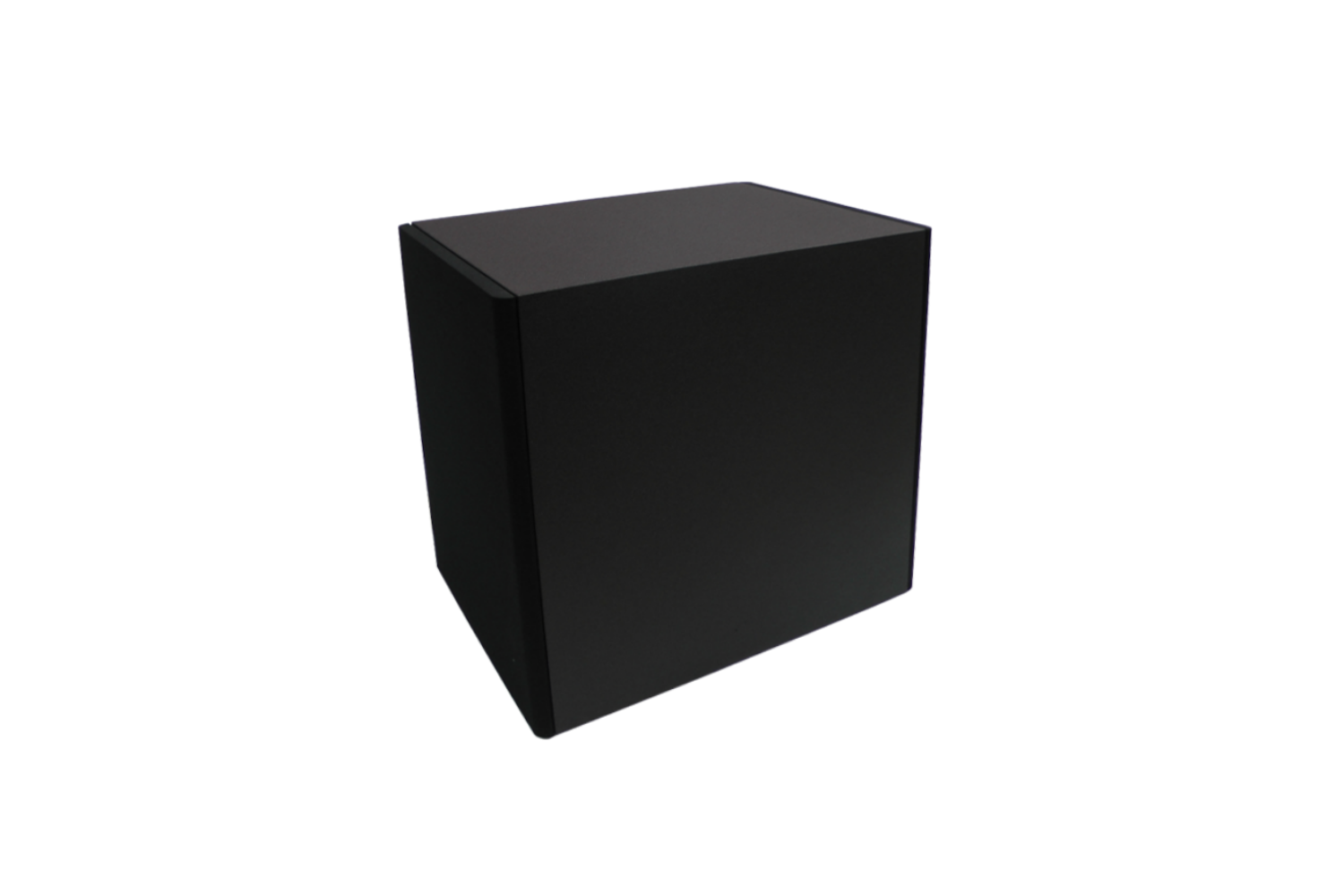

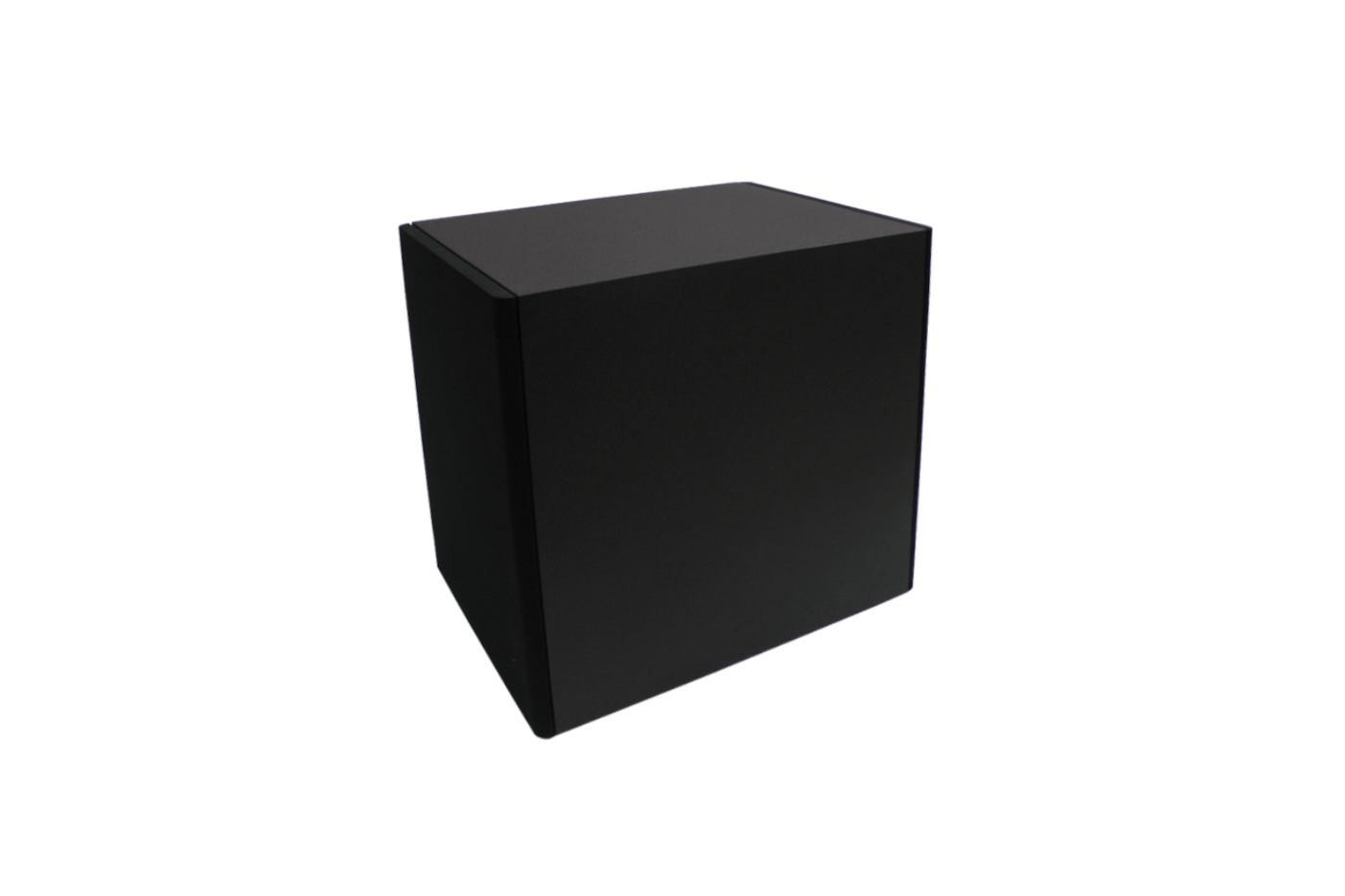

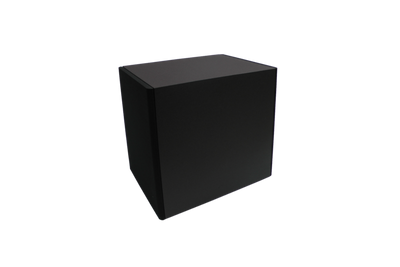

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. Two acoustically transparent fabric grilles cover each side-firing 15 inch subwoofer driver. The amplifier is mounted on the rear baffle.

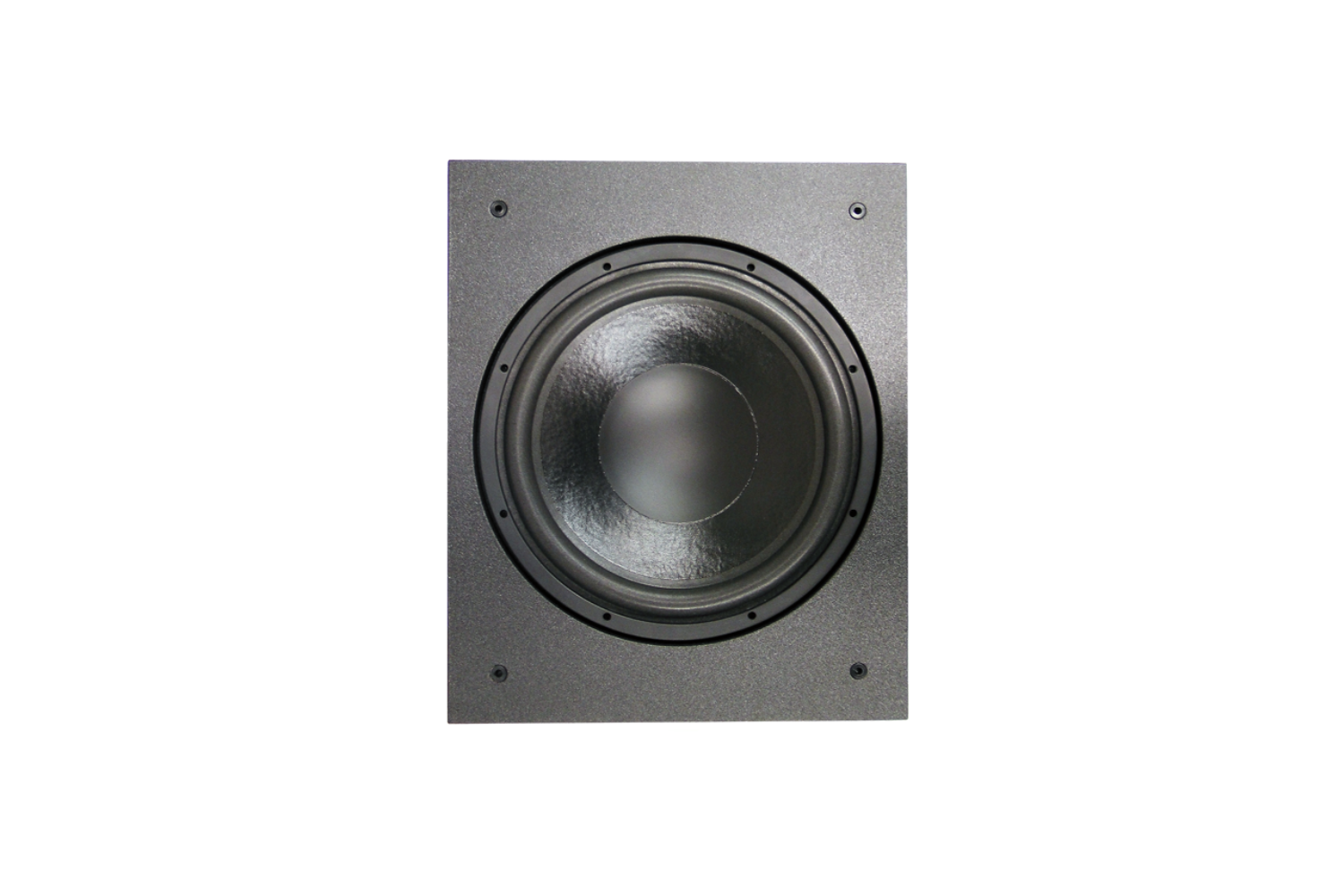

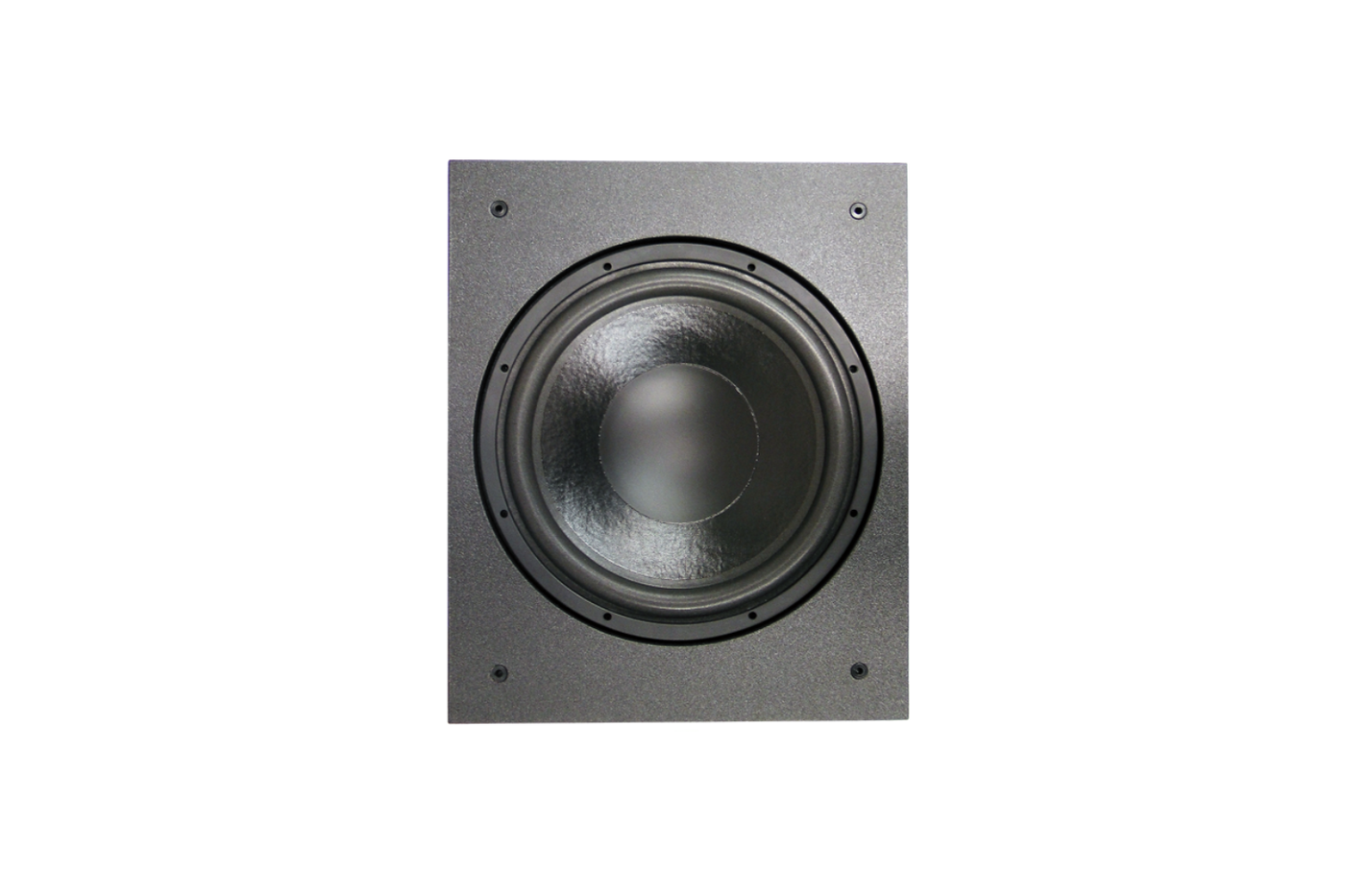

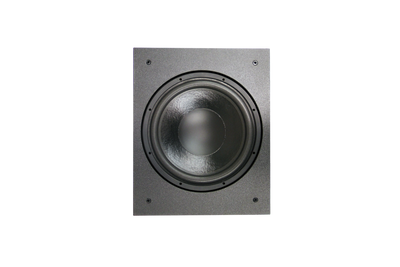

-The XS30 contains two 15 inch subwoofer drivers, which are capable of moving massive amounts of air. The 1 inch surround and poly cotton semi-progressive, high excursion spider allow the cone to move more than 2 inches peak to peak. The cast aluminum frame is mounted to the extremely linear and dynamic motor system, which provides the power to drive the cone in a symmetrical motion.
| Design | Sealed |
|---|---|
| Drivers | Two 15" High Excursion |
| Powered | Yes |
| Amp | 725W RMS (1450W PEAK) |
| Enclosure | CNC machined MDF |
| Frequency Response | 19Hz-200Hz +/-3dB |
| In-Room Extension | 9Hz-14Hz |
| Size (DxWxH) | 18" x 24" x 22.5" with grilles |
| Weight | 107 lbs |
Amp
-Amplifier Power: 725W RMS (continuous), 1450W Peak (dynamic)-Amplifier Topology: PS BASH® - Patented hybrid amplifier uses best of Class D and Class AB
-Precision analog control through DSP (digital signal processing)
-Inputs: Left (LFE) and Right RCA connections
-0o to 180o Continuous Phase Control
-40Hz-150Hz/LFE Variable Crossover
-Off/Auto/On Selector
-Voltage: 100-120V/220-240V~50/60Hz (6.3A) with auto-switching
-Stand-By Power: Less than 1W
-Temperature sensing protection
-Driver voltage monitoring with DC offset protection
-Driver current monitoring with overload, short circuit, and load protection.
-Primary voltage monitoring to control dynamic and average power limits
-Soft limiting protection
-Frequency dependent compressors
-Energy Star compliant
Cabinet
-Sealed Enclosure-Side-firing drivers
-Reactive force canceling driver array
-Acoustically transparent fabric grille covers
-Super durable, black sand textured finish
-Precision machined CNC panels
-Rigid MDF baffles
-Heavily braced

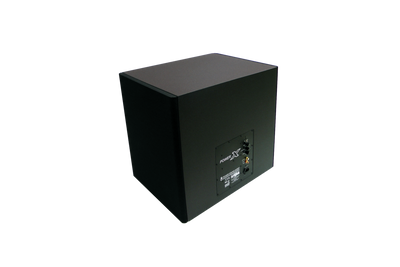

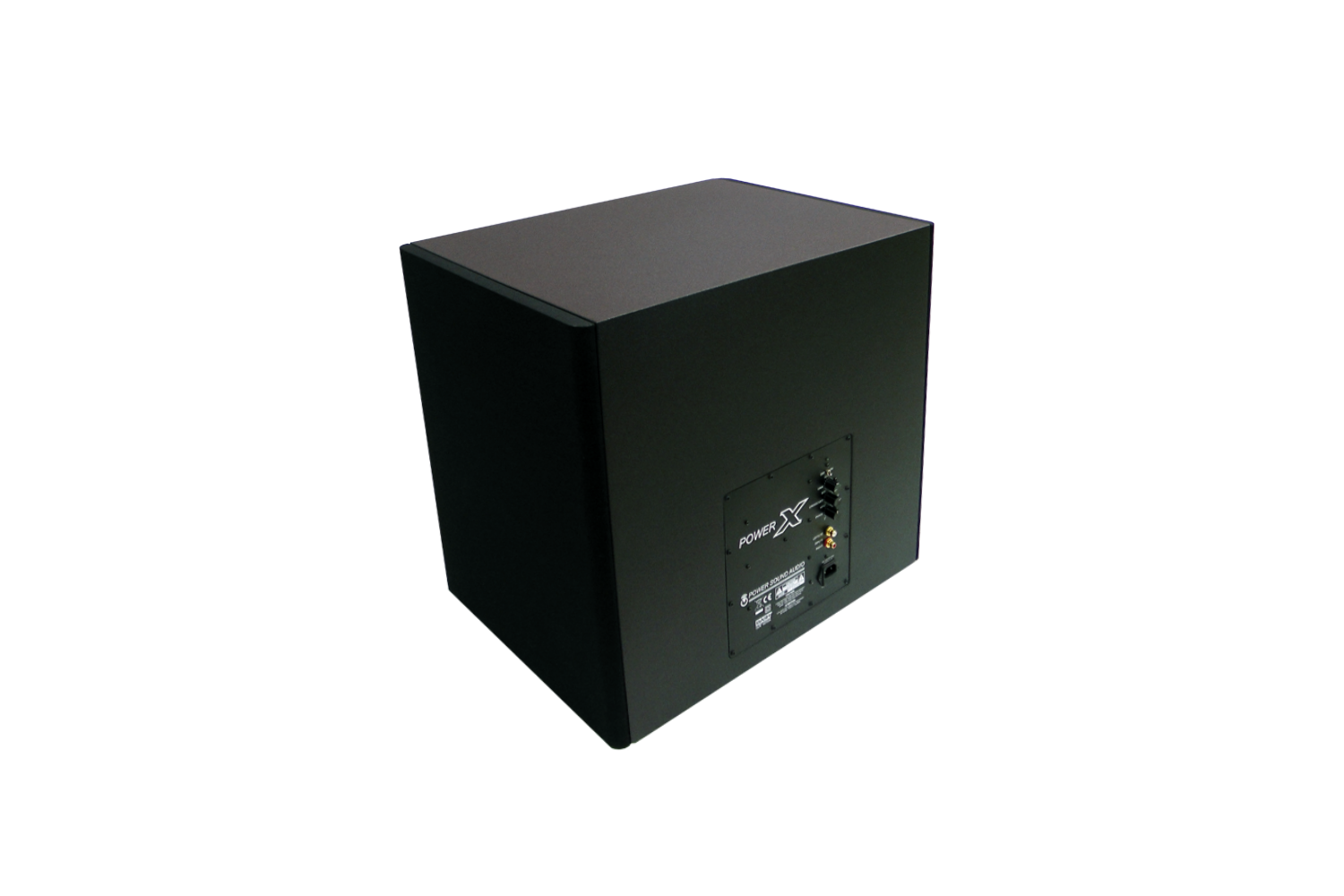

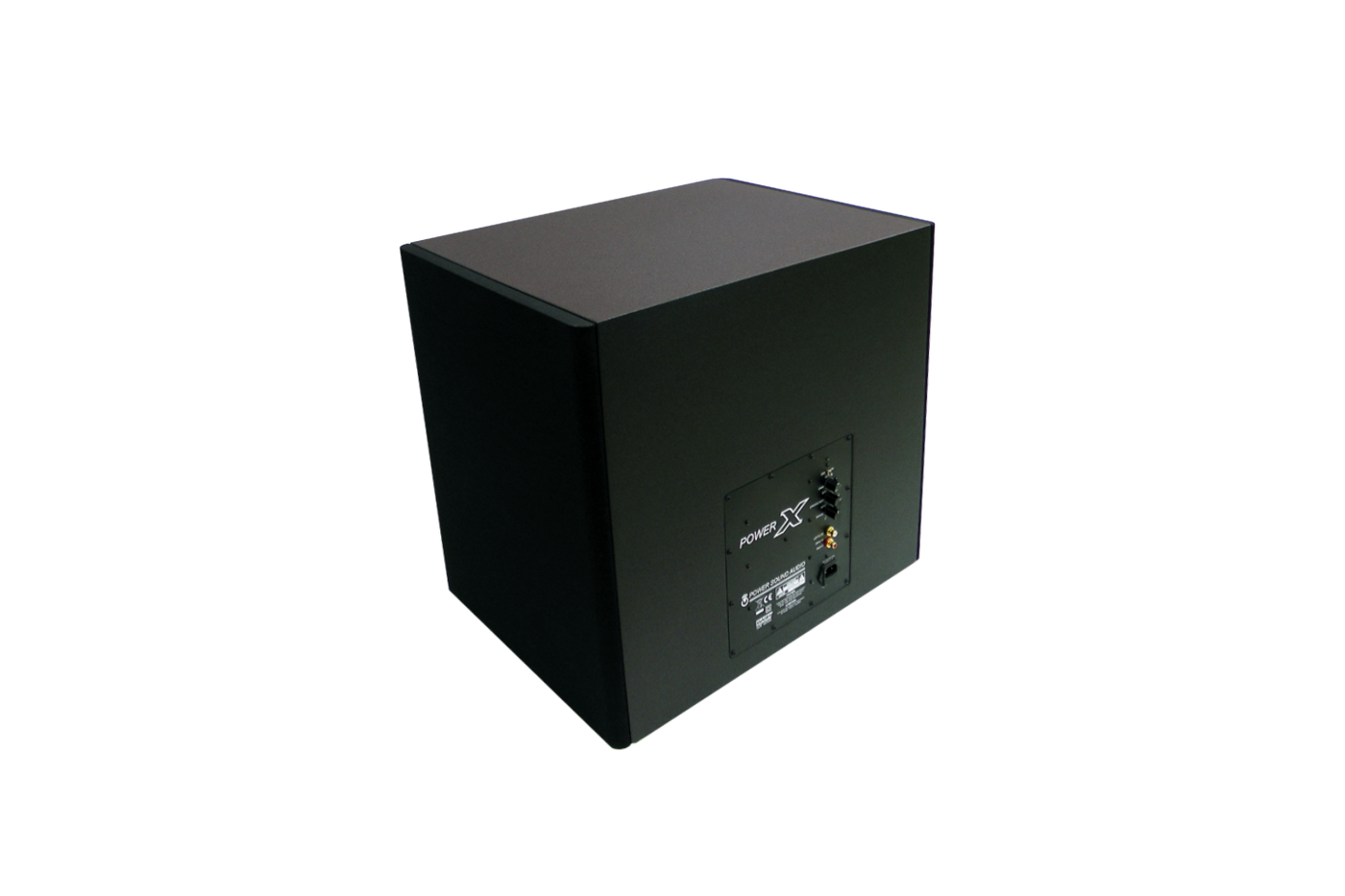

-Rear mounted amplifier
-USA manufactured rubber feet
-Dimensions (DxWxH): 18"x24"x22.5" includes grilles
-Weight: 107 lbs
-Made in the USA
Woofer
-Power Sound Audio proprietary 15” driver-High excursion capabilities (2" peak to peak)
-Optimized motor using Finite Element Analysis (FEA)
-Low carbon steel motor structure for optimized flux flow
-Aero vented pole geometry for quiet operation and efficient cooling
-Triple stack of Y35 grade magnets
-Reinforced curvilinear kraft pulp cone
-Rubatek foam surround
-Twelve spoke aluminum frame for a rigid foundation
-Flat wound copper coil on a black anodized former allowing for effective heat dissipation and rigidity
-Single poly cotton semi-progressive, high excursion spider
-Fatigue limiting designed, forty-eight tinsel count lead wire
-Assembled in the USA
XS30 Frequency Response
The frequency response graph shows how the subwoofer will sound for a given input frequency or tone. Accurate reproduction of the source material is achieved with a flat frequency response as shown in the graph.
XS30 Compression
The compression graph indicates how the output of the subwoofer changes as the input signal increases.
| 20Hz - 31Hz: | 116.6 dB |
|---|---|
| 40Hz - 63Hz: | 131.2 dB |
| 20Hz - 63Hz: | 126.7 dB |
