Unleash your home theater
Anti-Mode 2.0 Dual Core is DSPeaker's award-winning loudspeaker optimization system capable of perfecting the acoustic performance of any full-range stereo audio system.
Speaker-room interaction is typically the most important performance-limiting factor of any high-end audio system. Every listening space introduces errors that can be in the magnitude of dozen decibels or even more. These errors are most pronounced at the bass and lower midrange regions, where the classic acoustic treatment loses its effectiveness.
Anti-Mode 2.0 Dual Core is DSPeaker's award-winning loudspeaker optimization system capable of perfecting the acoustic performance of any full-range stereo audio system. It is based on our new Anti-Mode 2.0 algorithm which refines the popular Anti-Mode algorithm even further.

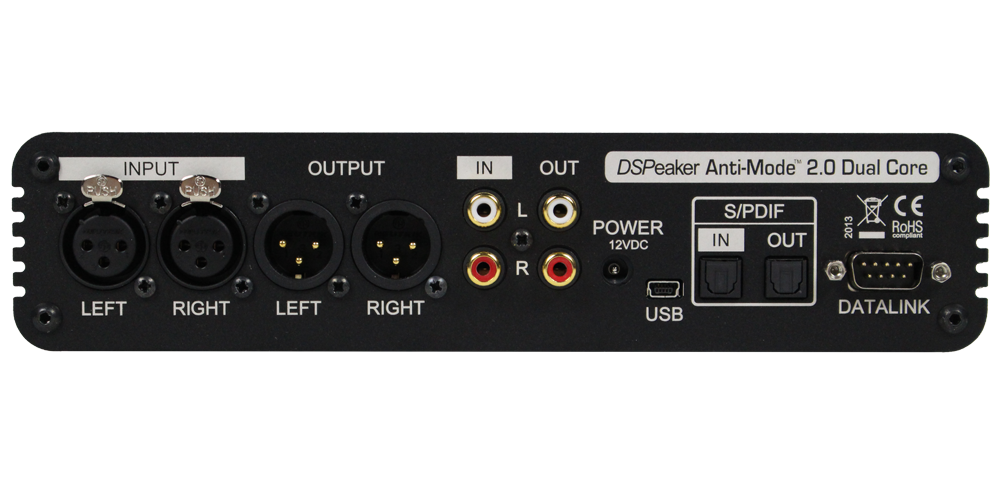

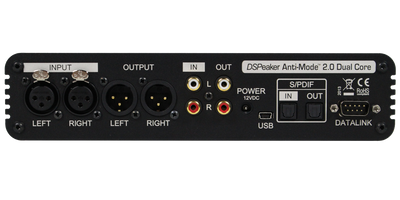

Connections
- 2 x RCA inputs
- 2 x XLR inputs
- 2 x RCA outputs
- 2 x XLR outputs
- Toslink S/PDIF digital input
- Toslink S/PDIF digital output
- USB
- Datalink
- Microphone jack
- 12VDC power connector
Digital Specifications
DSP Cores:
- 1 x VS1000 (GUI&USB).
- 2 x VS8053 IceDragon (Audio).
Processing:
- 40-bit, 2-channels.
DSP Filters:
- Anti-Mode 2.0 Multi-Rate (FIR & IIR).
- House Curve filter.
- Linear-Phase Tilt.
- Parametric EQs.
- Adjustable Infrasonic.
- Adjustable cross-over.
Analog specifications (2013 revision)
- Dynamic Range: > 108dB.
- Volume Control Steps: 0.5dB.
- Input Sensitivity XLR: 3.9/7.9 Vrms, RCA: 2.5/5.0 Vrms.
- Output Voltage Unbalanced RCA: 7.2 V(RMS) max.
- Output Voltage Balanced XLR: 14.4 V(RMS) max.
- ADC: 6.144 MHz oversampling dual per channel.
- DAC: 6.144 MHz oversampling dual per channel, local clocking, buffering.
Dimensions
- 236 x 55 x 146 mm (9¼" x 2" x 5½").
