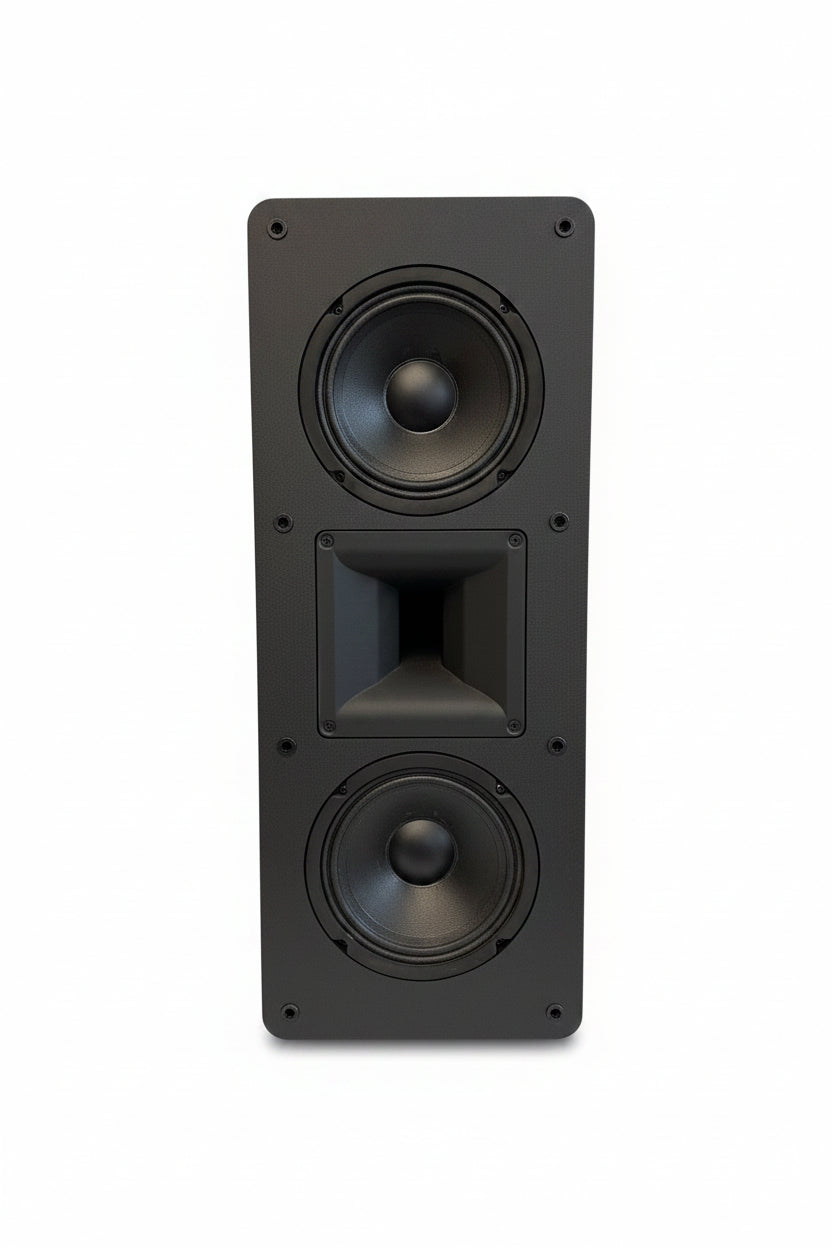

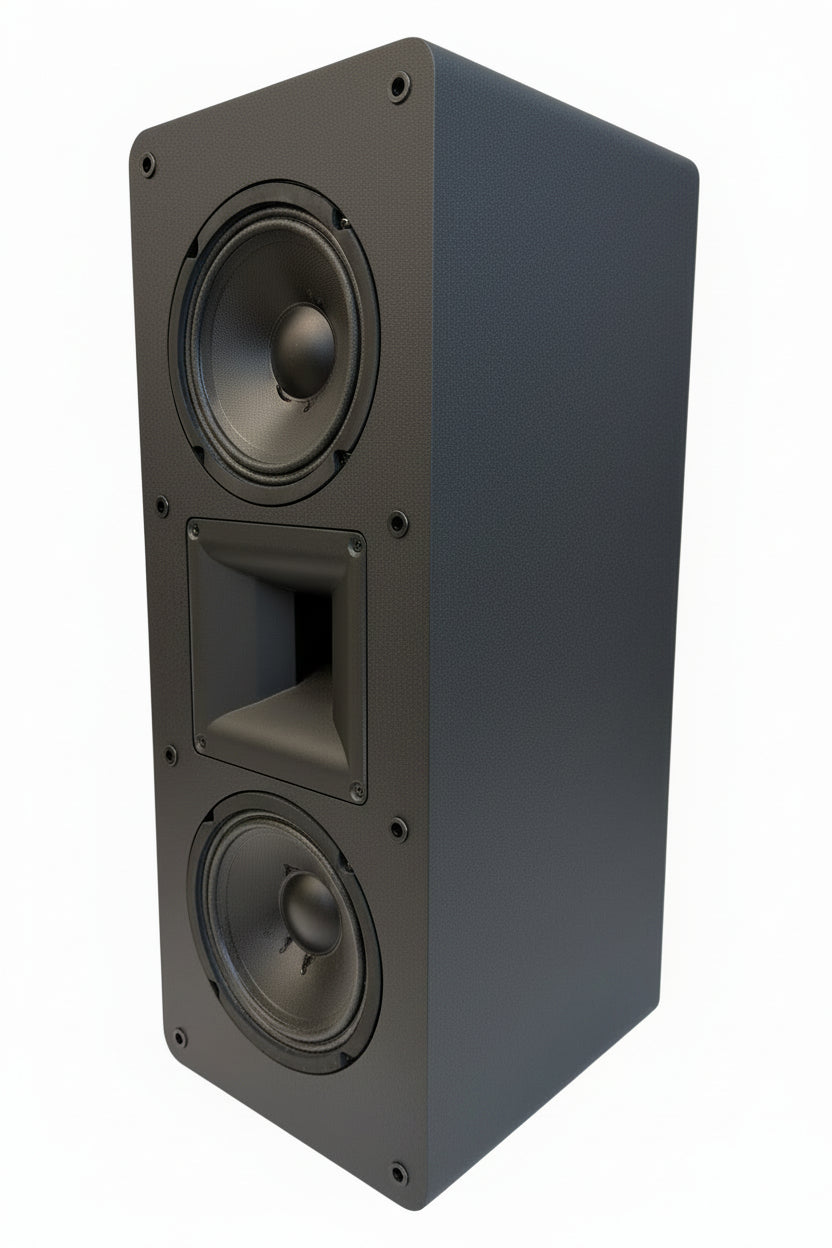

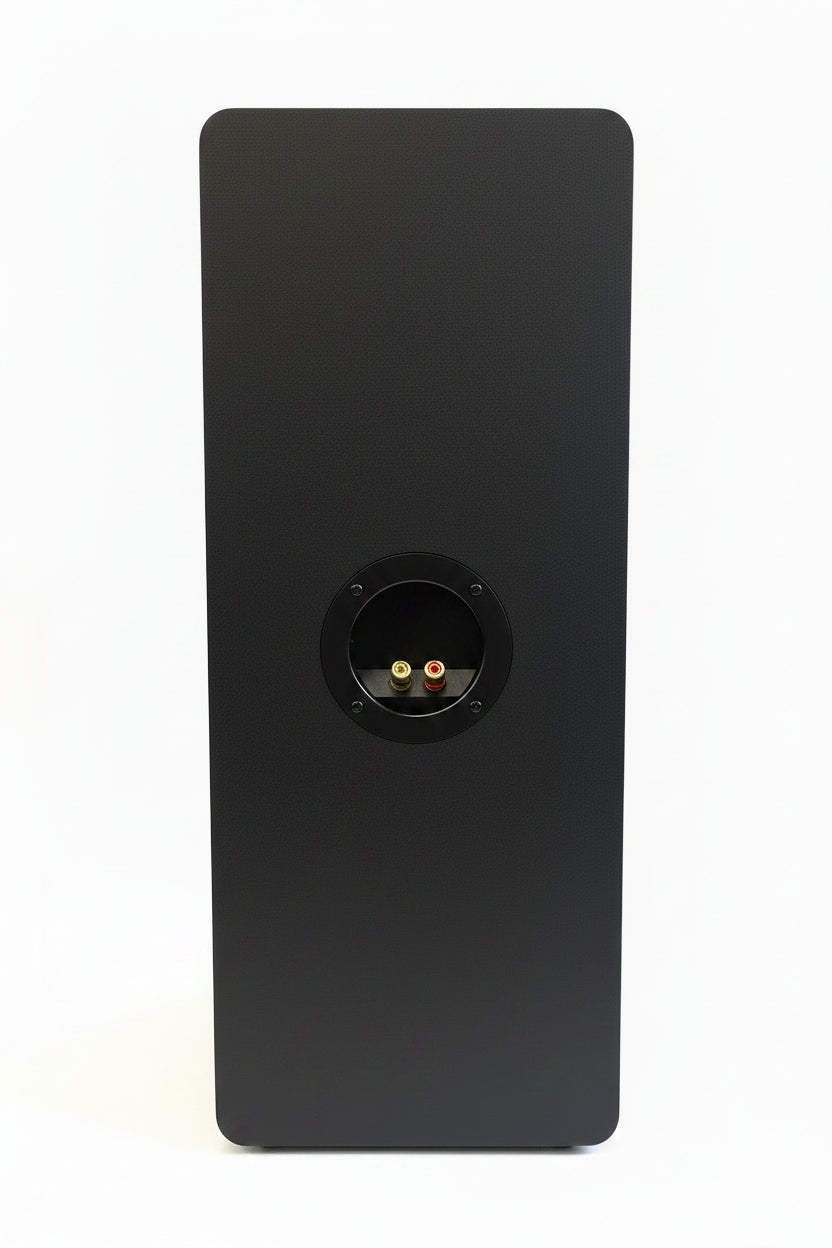

MTM26K-M
The MTM26K-M (K=klippel optimized and M=matte finish) is designed to provide incredible dynamics for both film and music enjoyment.
-Like all Power Sound Audio products the MTM26K-M is assembled by hand in our Ohio facility. Each speaker is measured before boxing to ensure a quality control experience far beyond industry standards.
| Design Optimization | Klippel Near Field Scanner |
|---|---|
| Cabinet Design | Sealed |
| Frequency Response | 100hz-18kHz |
| Sensitivity | 95dB (IEC Standard, 2.83v, 1 meter, Anechoic) |
| Power Needed for 108dB@10ft | 178 Watts |
| Nominal Impedance | 4 Ohms |
| Woofer |
(Two) 6.5", Ciare PM160
|
| Tweeter | B&C DE250 |
| Horn |
B&C ME20
|
| Power Handling |
175 Watts Program (Music or Movies)
|

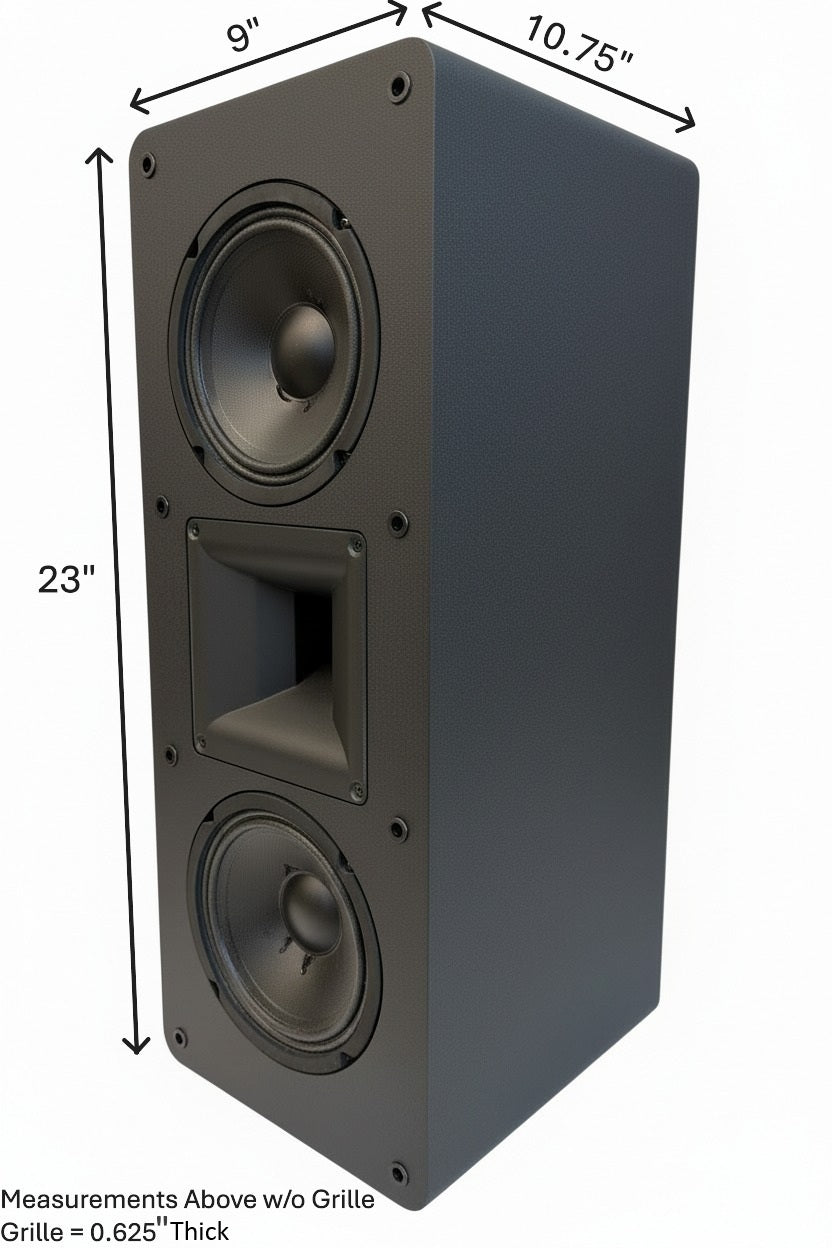

| Unboxed Size (DxWxH) |
10.75" x 9" x 23" With Grille
|
| Boxed Size (DxWxH) |
tbd" x tbd" x tbd"
|
| Unboxed Weight | 38 lbs |
| Boxed Weight | tbd |
Dual 6.5-inch Woofers
-Ciare Speaker's PM160-Magnet ~ Ferrite
-1.5-inch Voice Coil Diameter
-Former ~ Kapton
-Xmax ~ 1.8mm
-Cone ~ Treated/Pressed Paper
Compression Tweeter
-B&C DE250-Type ~ 1-inch High Performance Compression Tweeter
-Diaphragm Material ~ Polyimide
-Voice Coil Size ~ 1.7-inch
-Voice Coil Winding Material ~ Aluminium
-Frequency Range (upper limit) 18kHz

Horn
-B&C ME20-Coverage ~ 90x60
-Type ~ Exponential

Crossover
-Klippel Near Field Scanner optimized and completely designed in house at Power Sound Audio
