Special Order Only - Contact Before Purchase
Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

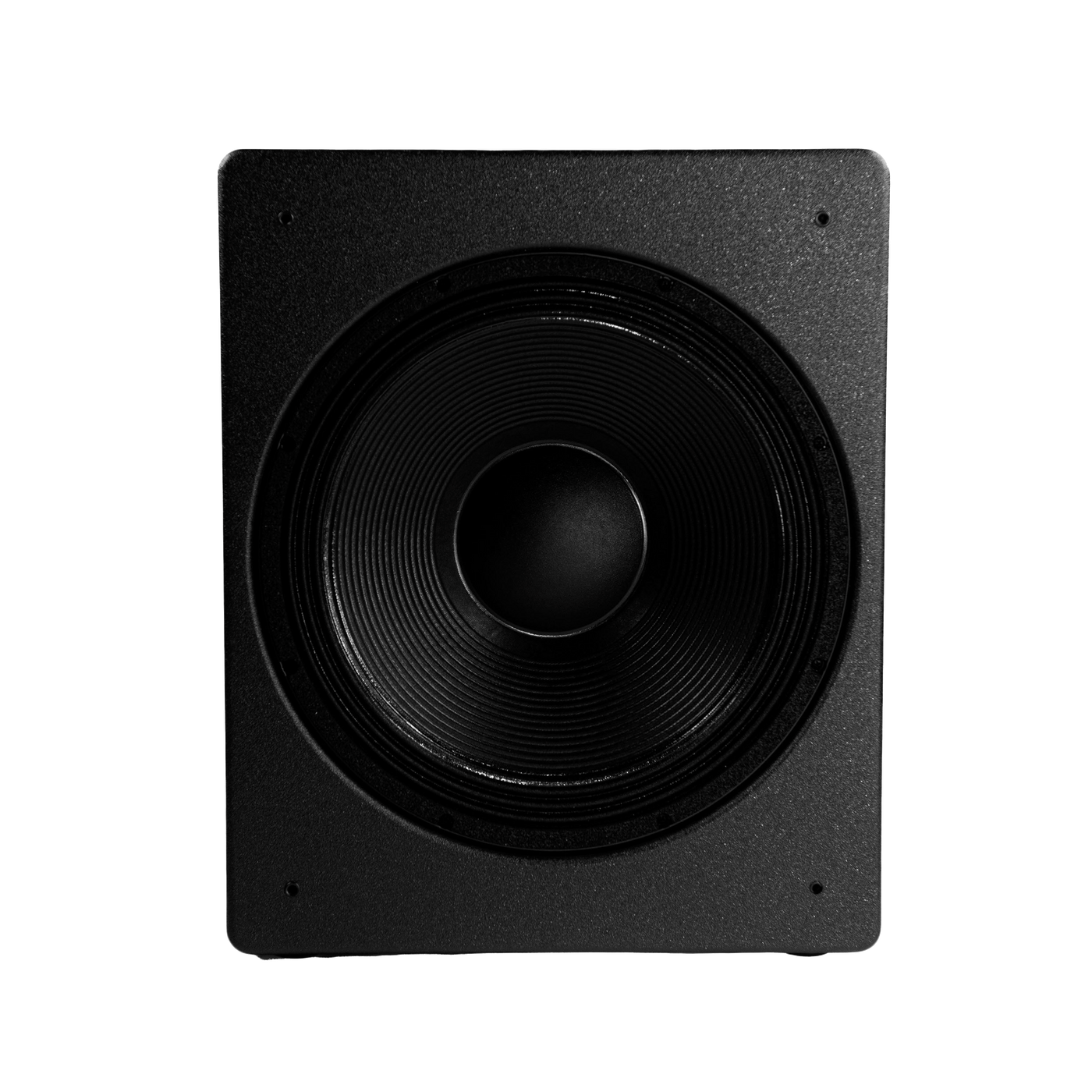

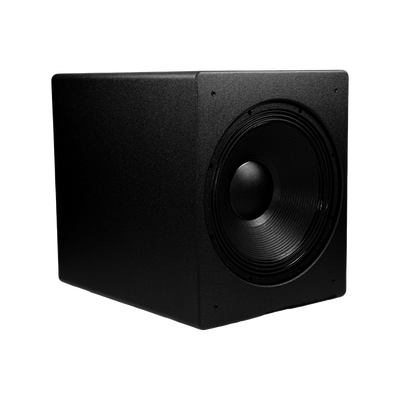

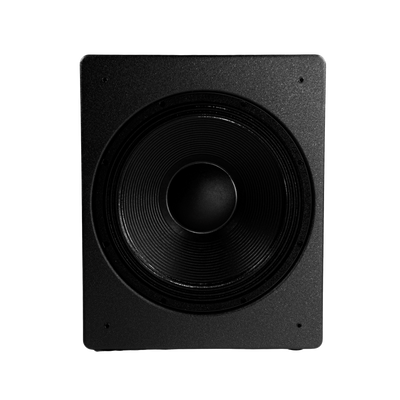

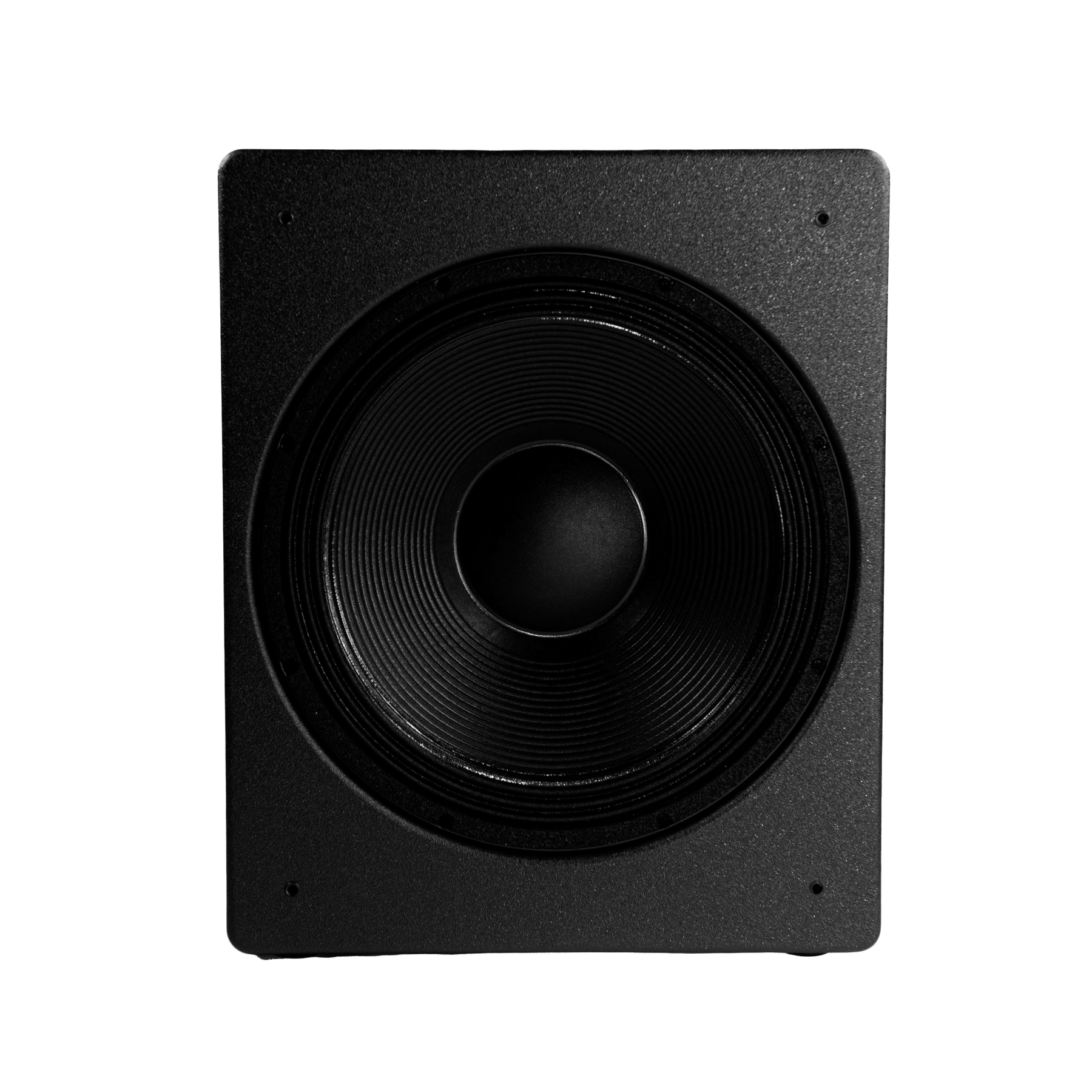

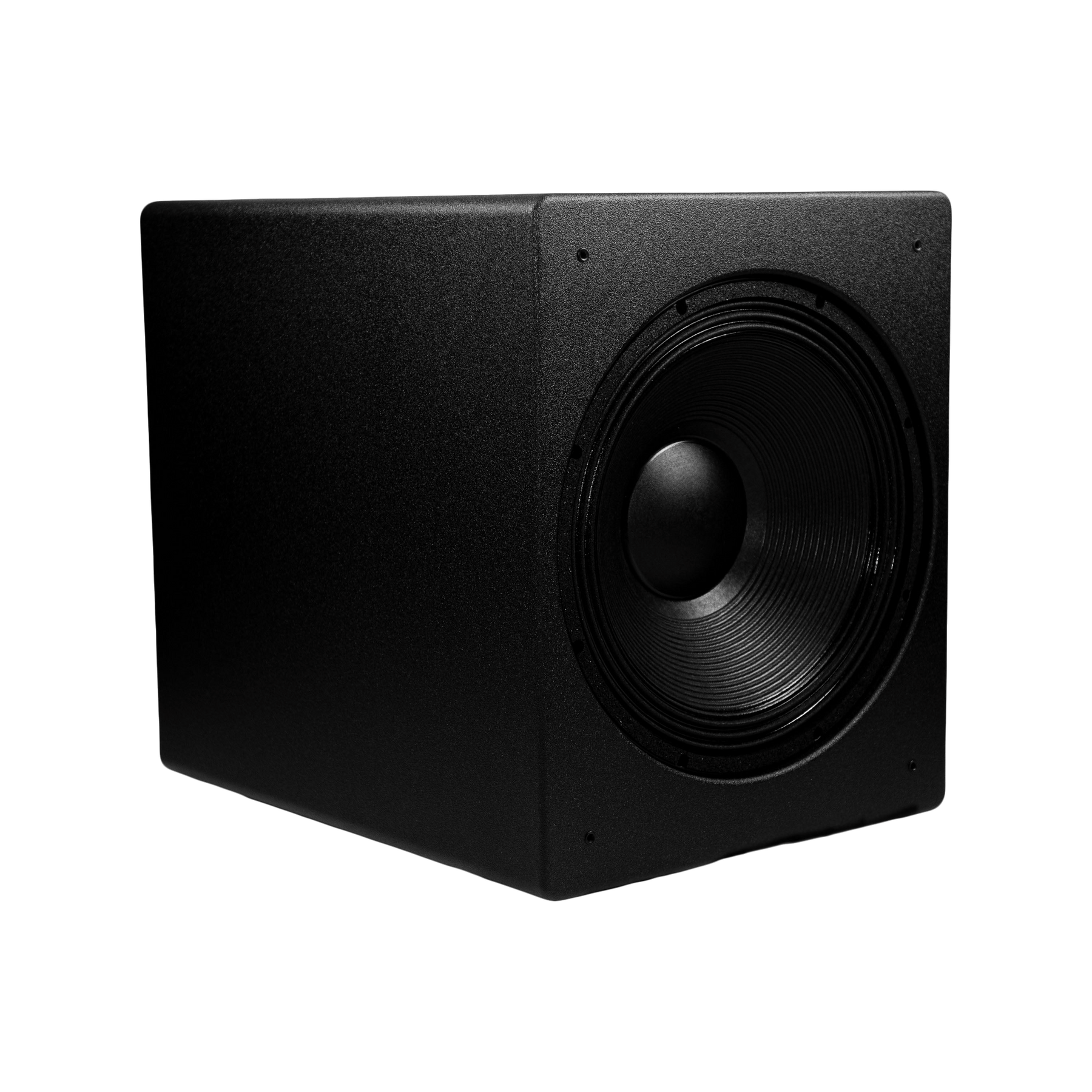

-Dual opposing 18 inch drivers fire from each side of the S3613 to produce dynamic levels of bass that will fill your home theater with cinema-quality sound. Prepare to awe your friends and family with the S3613 home audio powered subwoofer.
-The S3613 subwoofer is powered by a 4000W RMS (6000W PEAK) cabinet mounted amplifier. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

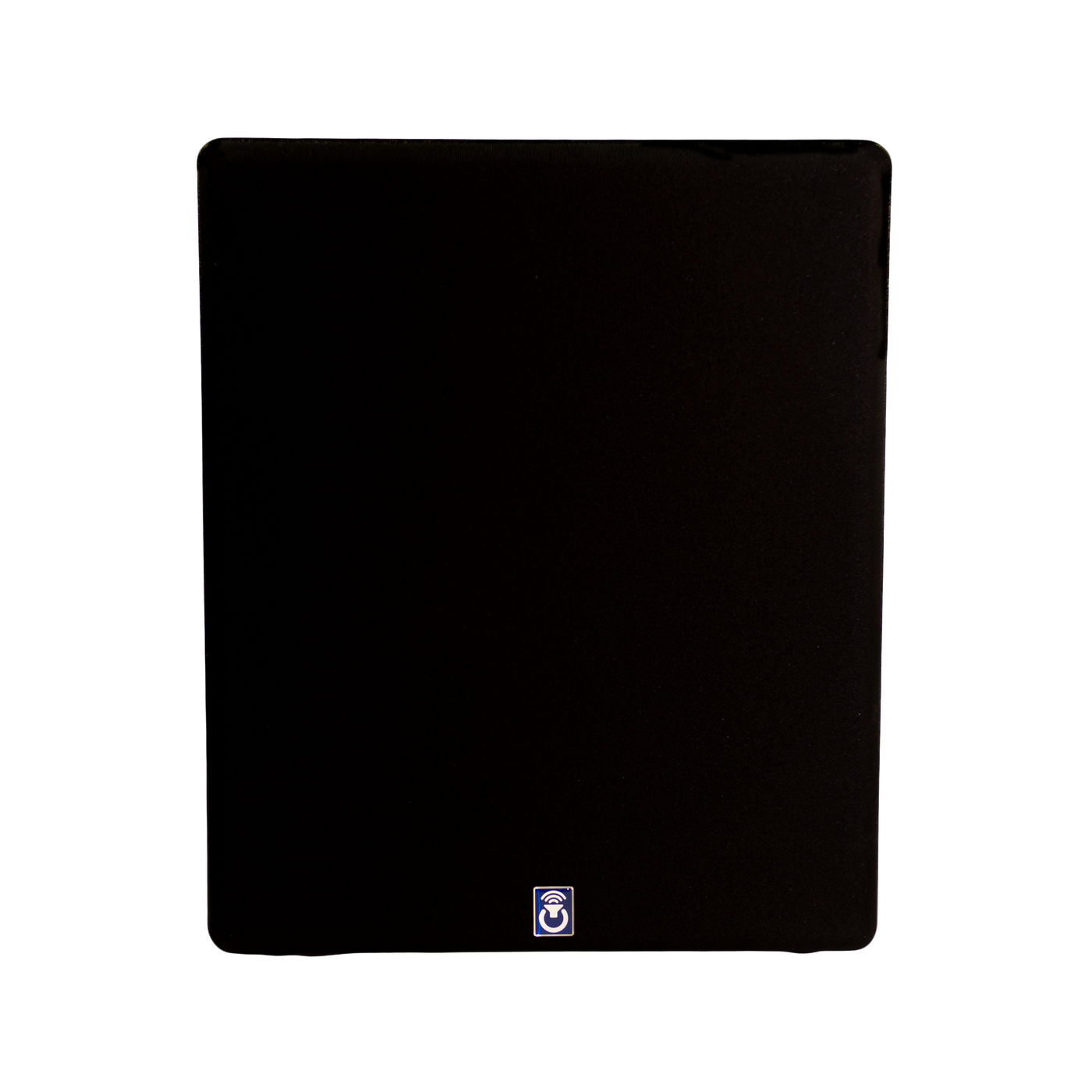

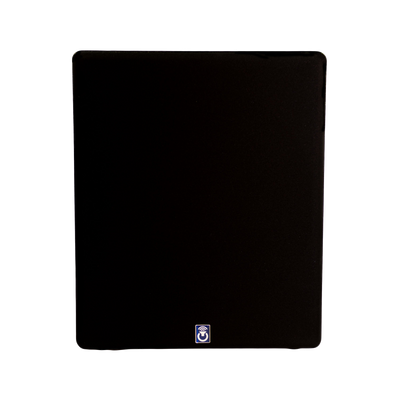

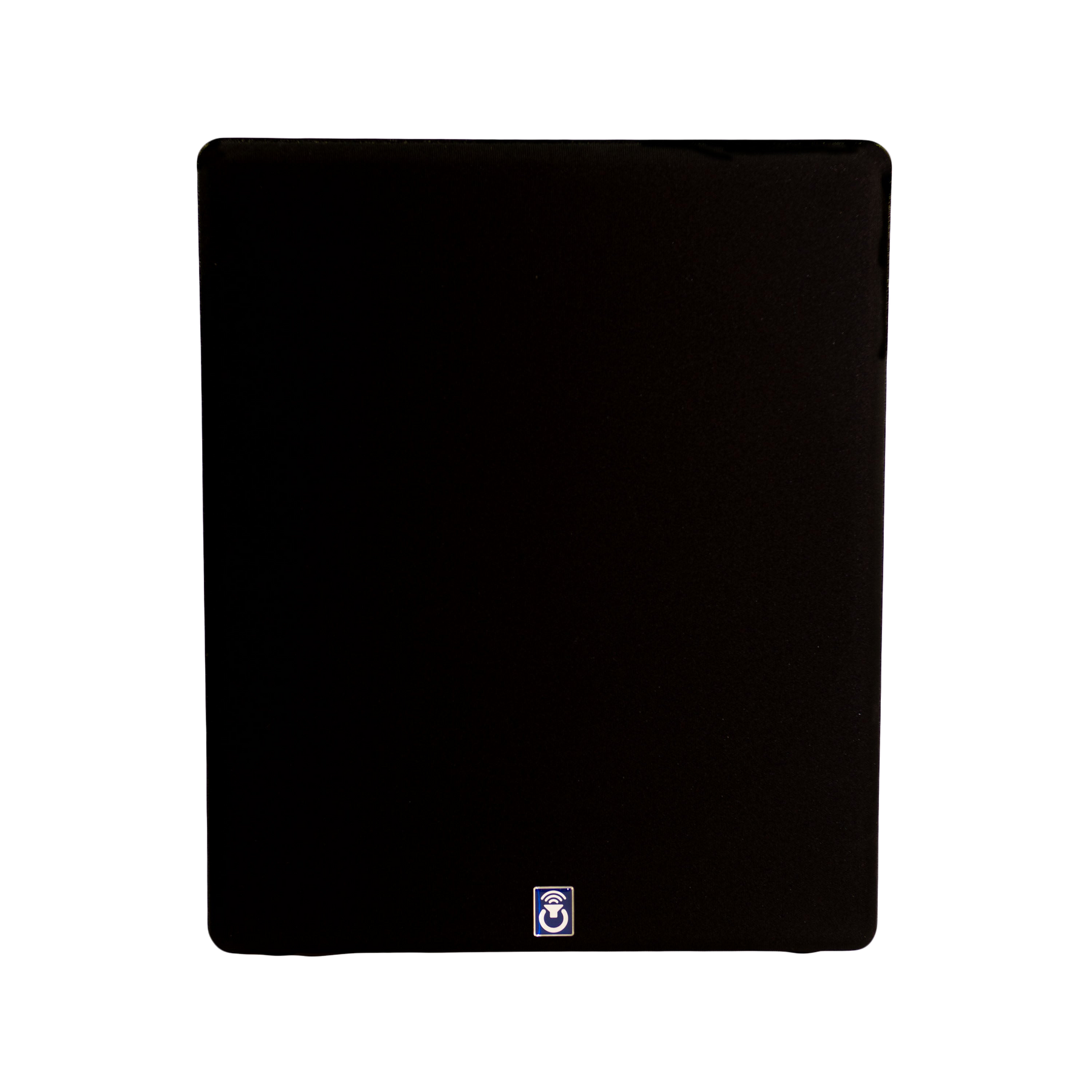

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. Two acoustically transparent fabric grilles cover each side-firing 18 inch subwoofer driver. The amplifier is mounted on the rear baffle.

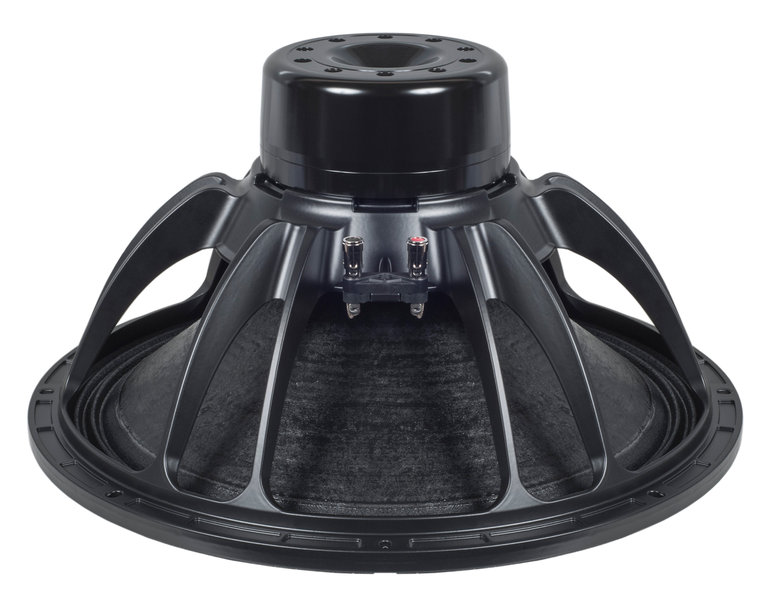

-The S3613 contains two 18 inch neodymium subwoofer drivers from B&C in Italy that were developed exclusively for PSA. This new woofer technology is based on a dual voice coil motor design with extraordinary motor strength, thermal handling, and sensitivity.
||Two 18" Italian Neodymium High BL Woofers
4000W RMS (6000W PEAK)
||CNC machined MDF
17Hz-200Hz Anechoic (+/-3dB)
20" x 28" x 24" with grilles
Included In The Box
One S3613 powered subwoofer
One owner's manual
One 6' AC power cord
Four furniture (carpet) sliders
Amplifier Power: 4000W RMS 6000W Peak
Amplifier Topology: Innovative post-filter feedback class-D topology, achieves ruler-flat frequency response, low distortion and very high damping across the whole audio band
Uses latest generation power MOSFET transistors and highly optimized output stage for up to 95% efficiency, allowing quiet fan-less operation up to unprecedented power levels
Full featured protection: DC, overload, low impedances, shorts, under/over-voltage, overheating, etc.
Includes gentle soft-start and long-term power limiter to reduce the chances of tripping breakers
120VAC (optional 120VAC-240VAC for an additional charge)

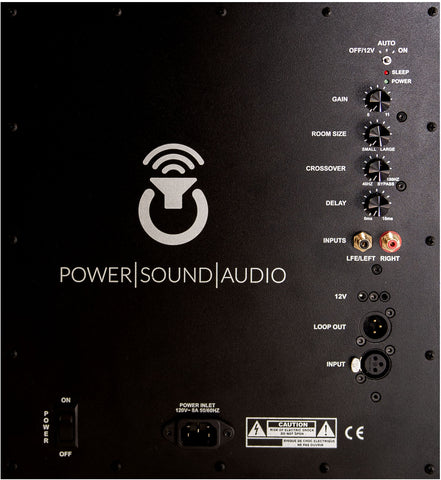

Unbalanced Inputs: Left and Right RCA
Balanced Input/Output: XLR input and XLR loop output.
On, Auto, Off selector
Time delay(phase) control
Room size control
Custom DSP(digital signal processing) enables superior engineering refinement
LED indicators for standby and power mode
Reactive force canceling driver array
Acoustically transparent fabric grille covers
Satin black finish
Precision machined CNC panels
Rigid MDF baffles
Rear mounted amplifier
USA manufactured rubber feet
Dimensions (DxWxH): 20"x28"x24" includes grilles
Weight: 137 lbs
Cabinet Made in the USA
3000 W continuous program power capacity
100mm (4 in.) four layer aluminum voice coil
98 dB sensitivity
Neodymium magnet allows a very high force factor and linear excursion
Double silicon spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Aluminum demodulation ring for very low distortion
Performance coming soon!
