Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

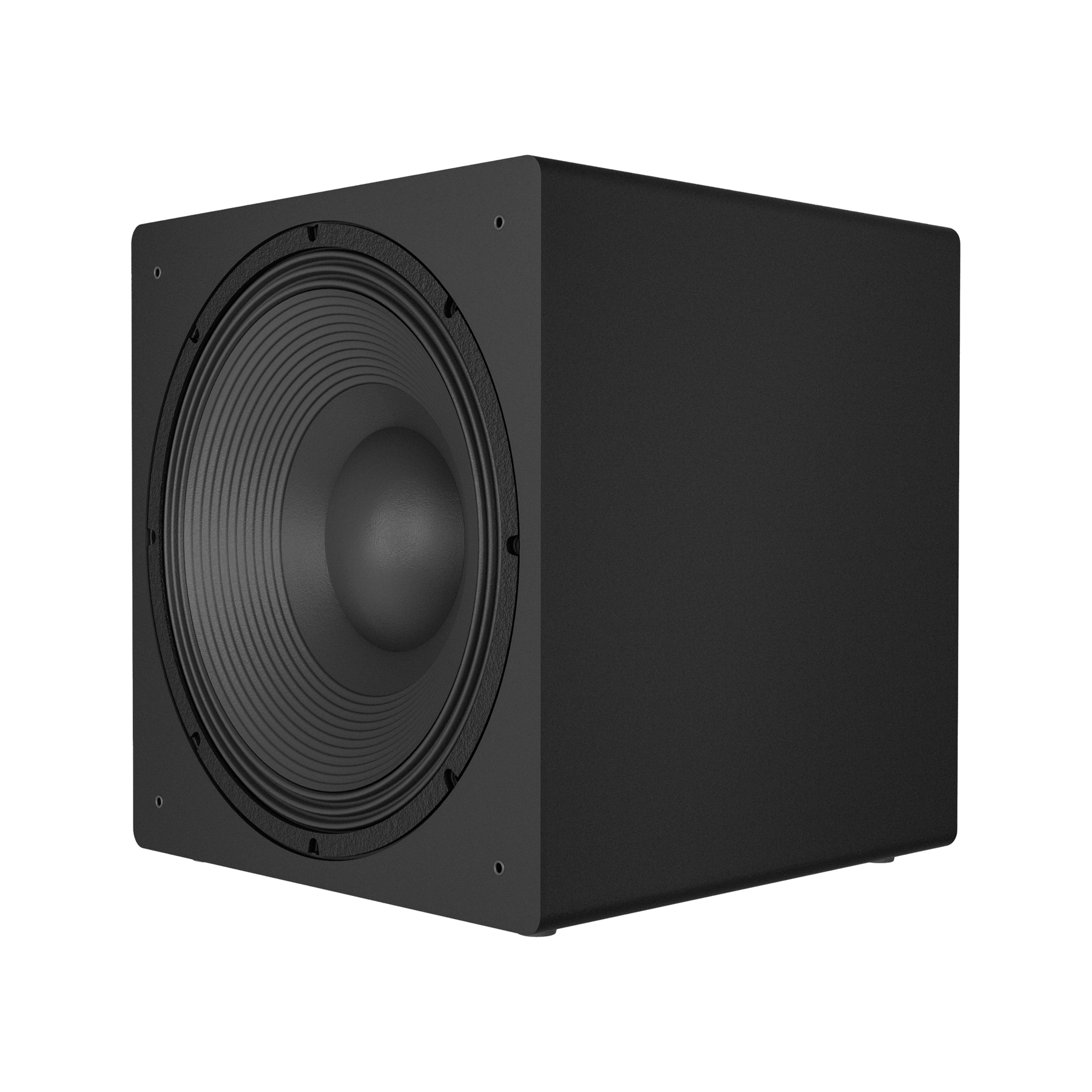

-Developed for the discerning audiophile, the S1813M powered home theater subwoofer is ready to pound your chest and rattle your windows. The S1813M is a relatively compact subwoofer with the power reserves to pack a serious punch.
-The S1813M subwoofer is powered by a 1920W RMS (4300W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

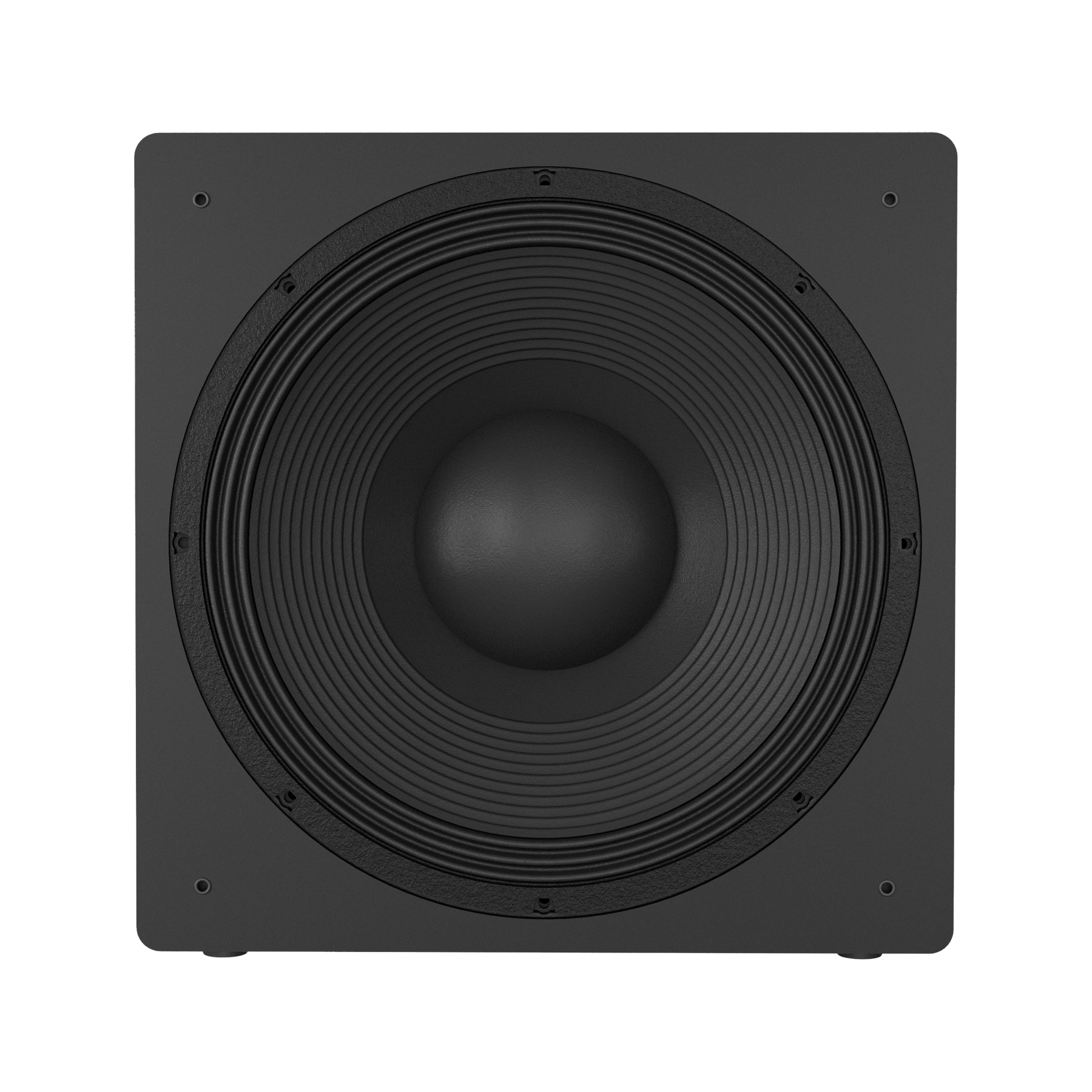

-The MDF enclosure is well braced with a double thickness woofer baffle. The enclosure is finished with a non-reflective matte covering. An acoustically transparent fabric grille covers the front-firing 18 inch subwoofer driver. The amplifier is mounted on the rear baffle.
-The S1813M contains a single 18 inch neodymium subwoofer driver from B&C in Italy that was developed exclusively for PSA. This new woofer technology is based on a dual voice coil motor design with extraordinary motor strength, thermal handling, and sensitivity.
||18" Italian Neodymium High BL Woofer
1920W RMS (4300W PEAK)
||CNC machined MDF
17Hz-200Hz Anechoic (+/-3dB)
22" x 20" x 20.5" with grille
ICEpower® audio technology
Amplifier Power: 1920 watts
Inputs: Left and Right RCA
Inputs: Left and Right XLR
On, Auto, Off selector
Time delay(phase) control
Room size control
Custom DSP(digital signal processing) enables superior engineering refinement
CE and FCC approved; EMC and safety pre-approved
Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
Patented HCOM modulation and control techniques for unparalleled audio accuracy
Sound optimized soft clipping
Soft start power up with mute/de-mute.
Thermal and over-current protection
Standby converter with low standby power consumption (less than 1 watt)
Universal mains operation (100-240 V, 50-60 Hz)
Standby power consumption 170 mW @ 230 V
ErP (1275/2008/EC) compliant
Energy Star®v3.0 compliant
117 dBA dynamic range
THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
High output current limit of 30 A
Assembled by Power Sound Audio
Acoustically transparent fabric grille cover
Non-reflective matte black finish
Precision machined CNC panels
Rigid MDF baffles
Rear mounted amplifier
Dimensions (DxWxH): 22"x20"x20.5" with grille
Weight: 79 lbs
3000 W continuous program power capacity
100mm (4 in.) four layer aluminum voice coil
98 dB sensitivity
Neodymium magnet allows a very high force factor and linear excursion
Double silicon spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Aluminium demodulation ring for very low distortion
Performance coming soon!
