Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.
-The TV126 powered home theater subwoofer is a perfect choice for the bass enthusiast. Designed to accurately reproduce source material at extremely high levels, the TV126 delivers concussive output during the most intense action movie, and accurate musical definition like you've never heard from a vented subwoofer.
-The TV126-T subwoofer is powered by a 8000W RMS (10000W PEAK) built-in amplifier. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

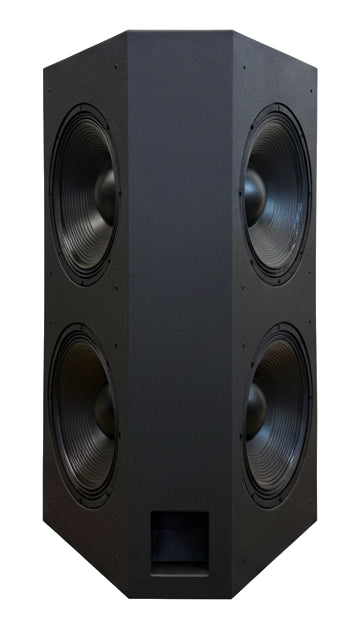

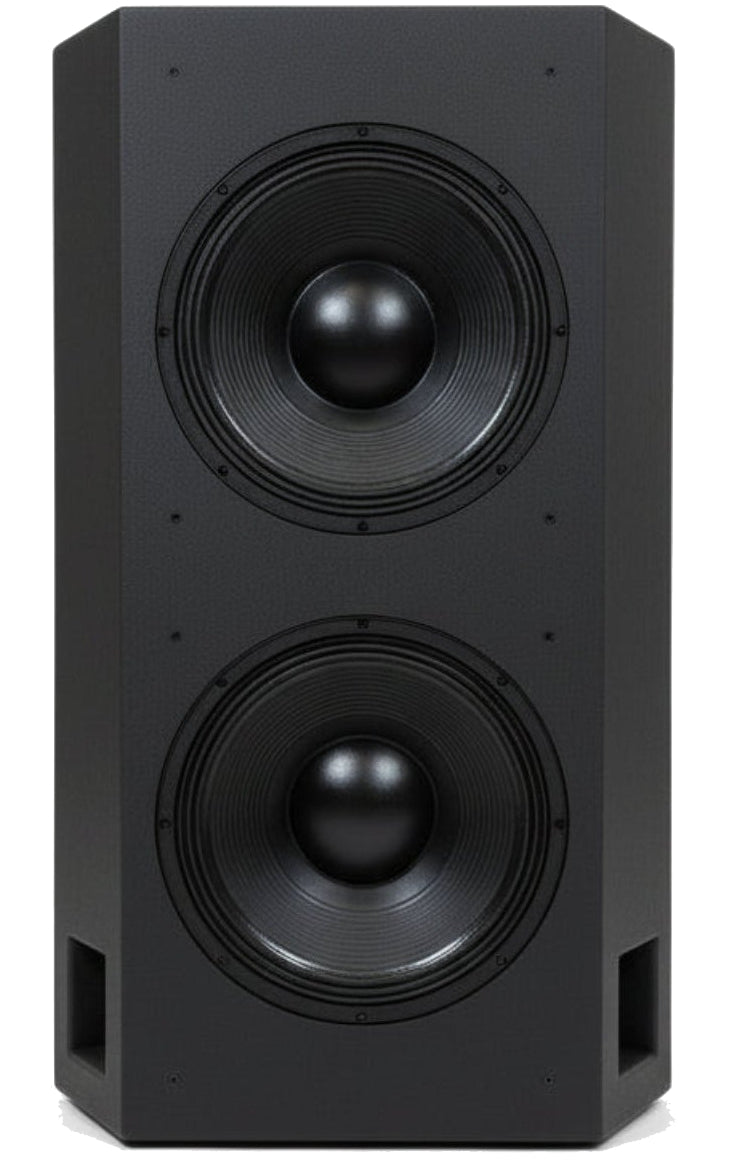

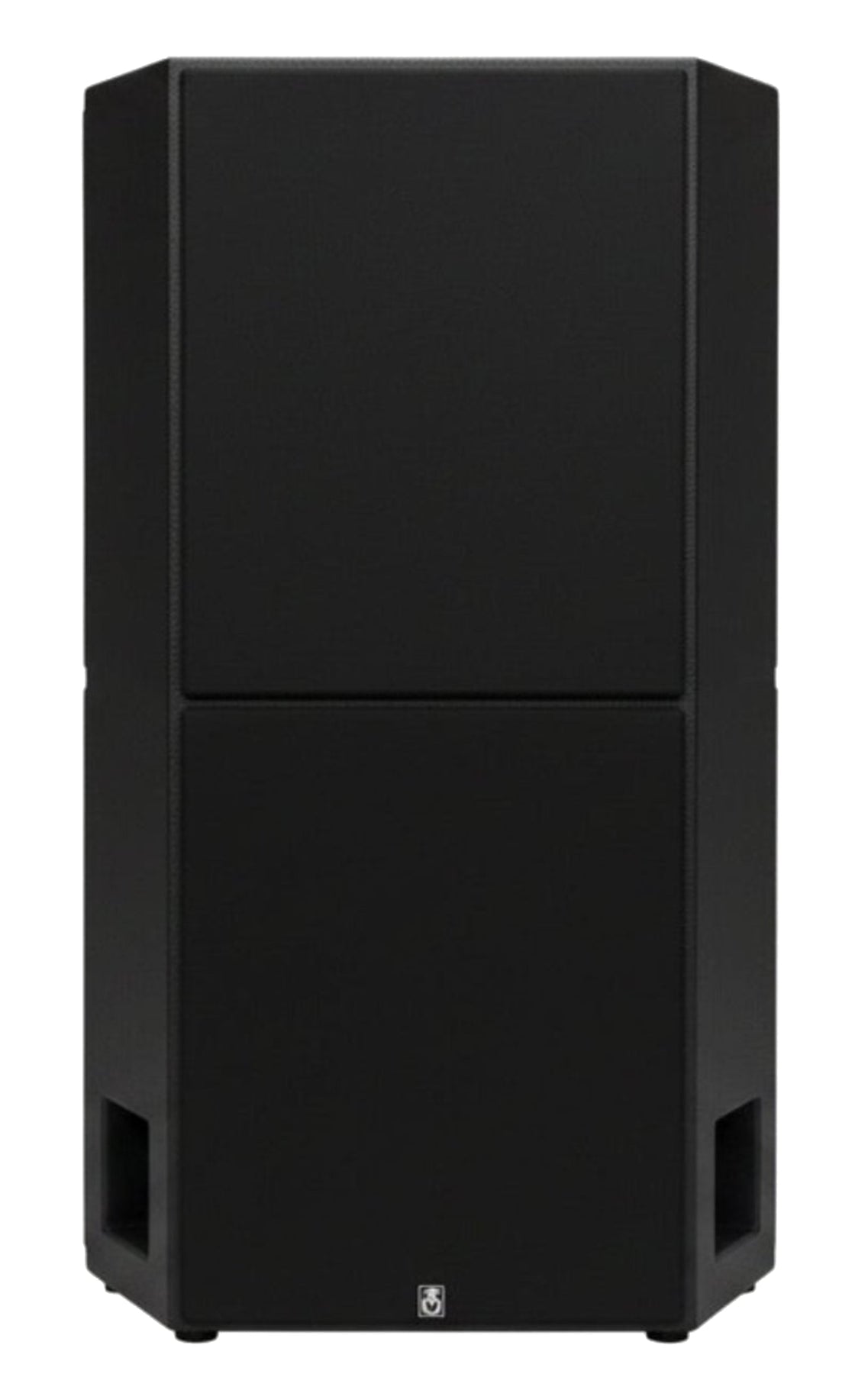

-MDF enclosure that is finished with a non-reflective matte finish. Acoustically transparent fabric grille(s) cover the six 21-inch subwoofer drivers. The amplifier is mounted on the rear baffle.
-The TV126-T contains six 21 inch neodymium drivers that were developed exclusively for PSA. This new woofer technology is based on a dual voice coil motor design that prioritizes motor strength, thermal handling, and sensitivity. Three of the most important attributes that lead to optimal sound quality.
| Design | Vented |
|---|---|
| Drivers | Six 21 inch Neodymium High BL Woofer |
| Powered | Yes |
| Amp | 8000W(iPal version-12000W) |
| Enclosure | CNC machined MDF |
| Frequency Response | 5hz-150Hz Anechoic (+/-3dB) |
| In-Room Extension | 7Hz-9Hz |

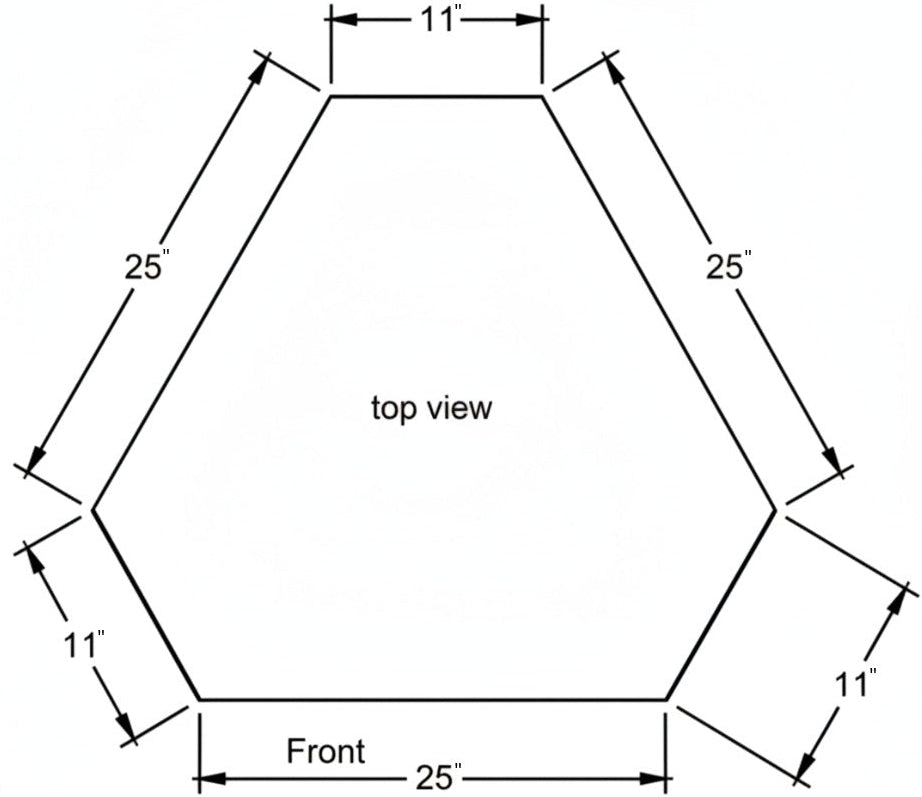

| Unboxed Size (DxWxH) | 31.875" x 37.25" x 60.125" with grille |
| Boxed Size (DxWxH) | 66" x 38" x 42.5" |
| Unboxed Weight | 400 lbs(iPal version-550 lbs) |
| Boxed Weight | 450 lbs(iPal version-600 lbs) |
Included In The Box
-One TV126-T powered subwoofer-Six Grilles
-One owner's manual
-One 6' AC power cord
-Eight furniture(carpet) sliders
Amp
-Amplifier Power: 8000W RMS (iPal version-12000W))
-Amplifier Topology: Innovative post-filter feedback class-D topology, achieves ruler-flat frequency response, low distortion and very high damping across the whole audio band
-Uses latest generation power MOSFET transistors and highly optimized output stage for up to 95% efficiency, allowing quiet fan-less operation up to unprecedented power levels
-Full featured protection: DC, overload, low impedances, shorts, under/over-voltage, overheating, etc.
-Includes gentle soft-start and long-term power limiter to reduce the chances of tripping breakers
-120VAC (optional 120VAC-240VAC for an additional charge)
-Unbalanced Inputs: Left and Right RCA
-Balanced Input/Output: XLR input and XLR loop output.
-On, Auto, Off selector
-Gain control
-Time delay(phase) control
-Crossover control
-Room size control
-Custom DSP(digital signal processing) enables superior engineering refinement
-LED indicators for standby and power mode
Cabinet

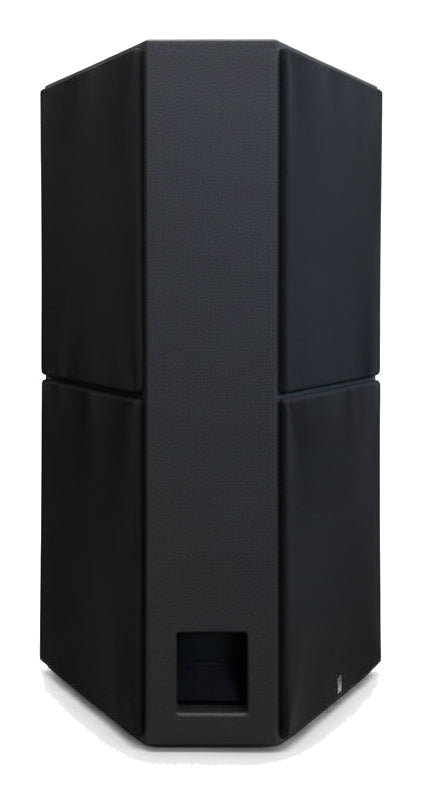

-Elaborate slot port design offers a unique blend of extension and laminar air flow-Super durable, black sand textured finish
-Precision machined CNC panels
-Heavily braced

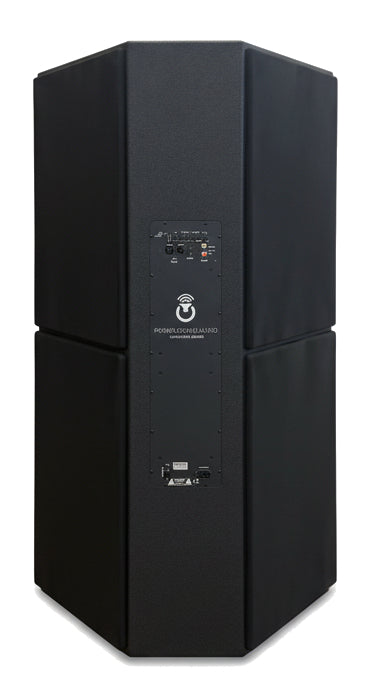

-Rear mounted amplifier
-Dimensions (DxWxH): 31.875" x 37.25" x 60.125" with grilles
Woofer
-2800 W continuous program power capacity-100mm (4 in.) four layer aluminum voice coil
-96.5 dB sensitivity
-Neodymium motor with high weight/BL(magnet flux) ratio.
-Double silicon spider with optimized compliance
-Ventilated voice coil gap for reduced power compression
-Aluminum demodulation ring for very low distortion
-Made in Italy
-Test
Performance coming soon!
Testimonials yet to come!
Assembled with pride in Mineral Ridge, ohio
