Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

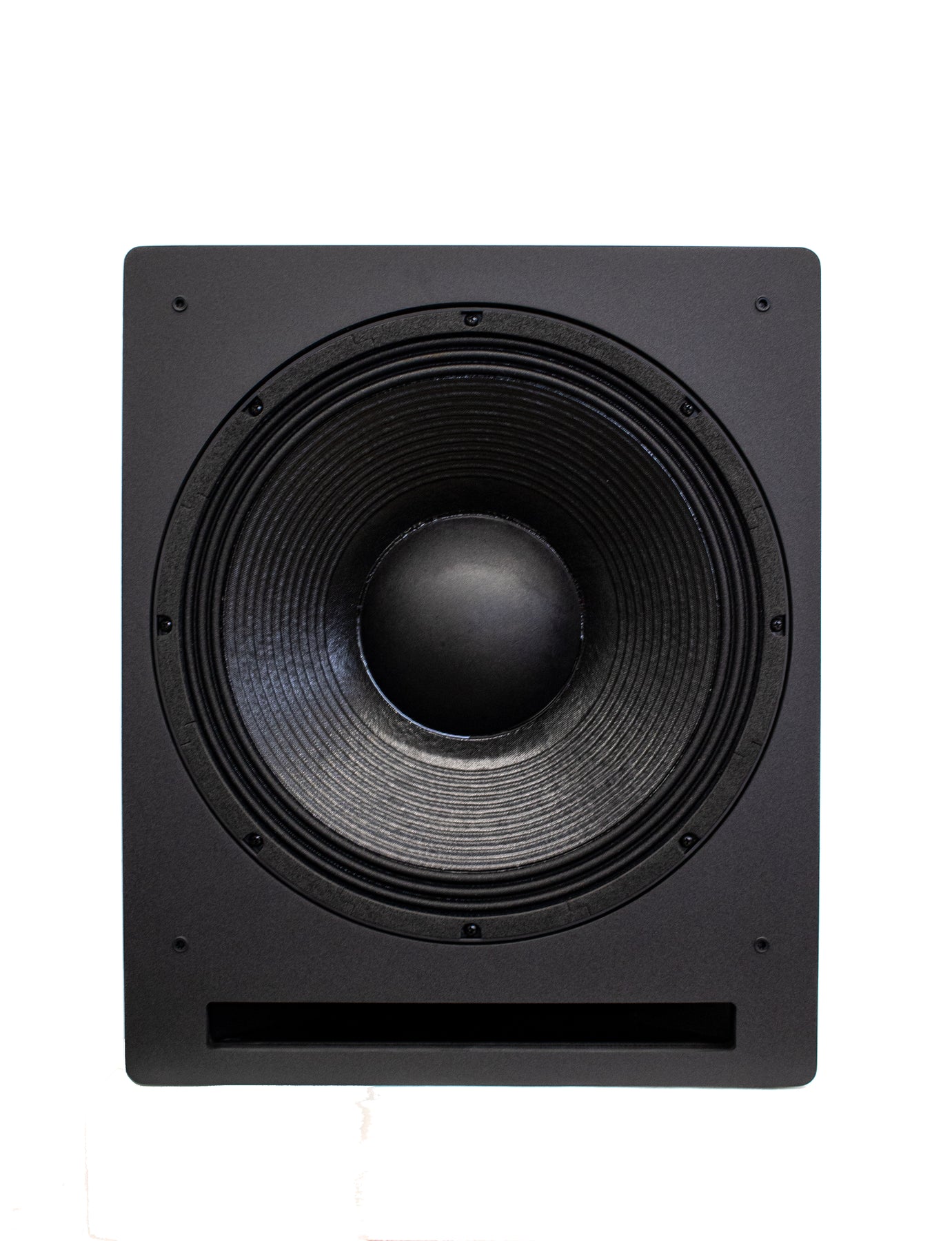

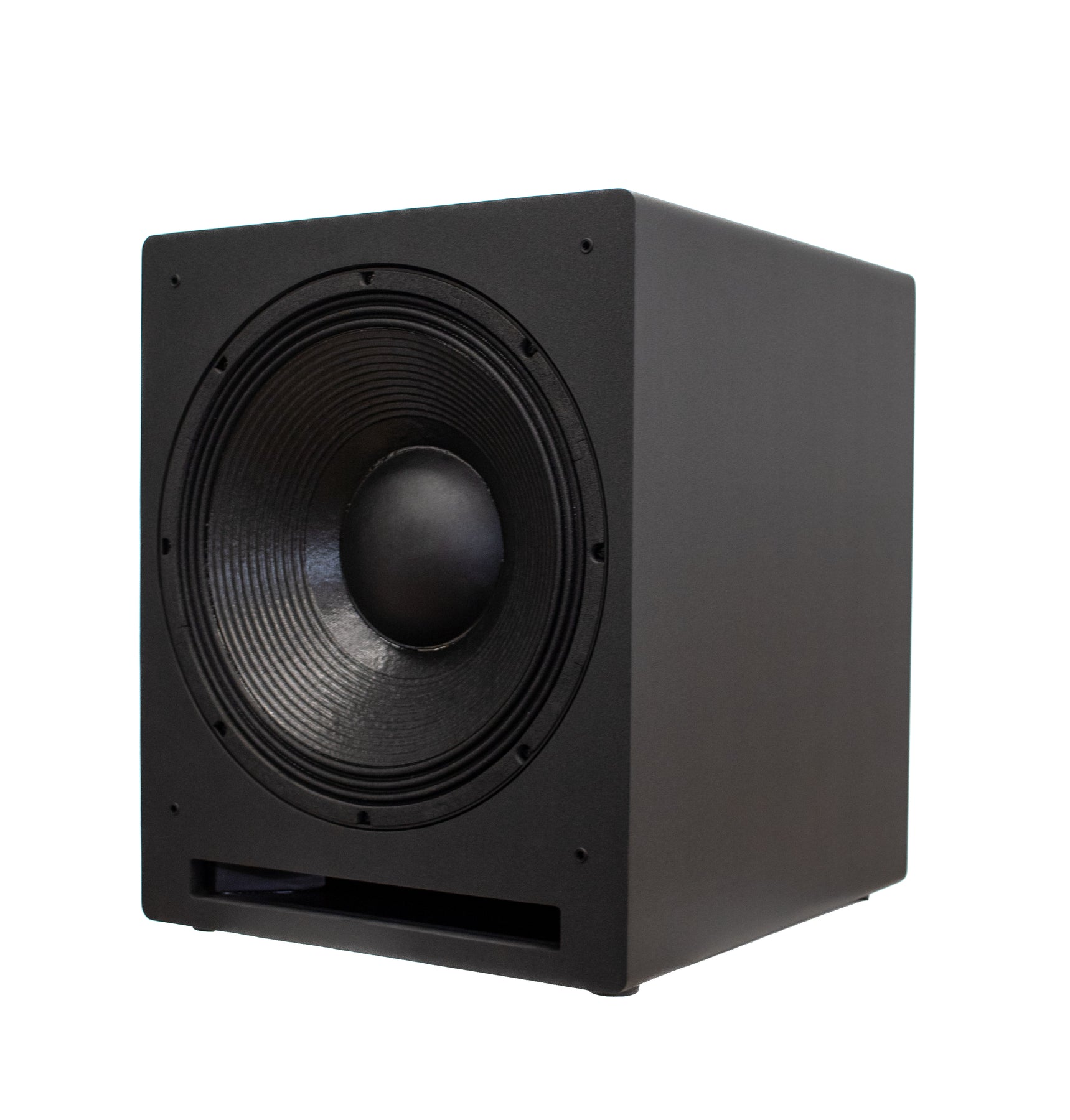

-The TV21neo-M epitomizes the phrase "bang for the buck". A 21-inch Neodymium woofer, our 1920w ICE amplifier platform, and a unique cabinet+port design all combine for true 10-12hz in room extension while also providing concussive mid and upper bass punch. Like all Power Sound Audio products, the TV21neo-M subwoofer is assembled, tested, boxed, and shipped from Ohio.
Design | Vented |
---|---|
Drivers | 21" Neodymium High BL Woofer |
Powered | Yes |
Amp | 1920W RMS (4300W PEAK) |
Enclosure | CNC machined MDF |
Frequency Response | 14hz-170hz Anechoic (+/-3dB) |
In-Room Extension | 10Hz-12Hz |
Unboxed Size (DxWxH) | 27" x 24" x 28.5" with grille |
Boxed Size (DxWxH) | 33" x 30" x 35" |
Unboxed Weight | 150 lbs |
Boxed Weight | 170 lbs |
Included In The Box
-One TV21NEO-M powered subwoofer
-Grille
-One owner's manual
-One 6' AC power cord
-Four furniture (carpet) sliders
Amp
-ICEpower® audio technology
-Amplifier Power: 1920 watts
-Inputs: Left and Right RCA
-Inputs: Left and Right XLR12V Trigger
-On, Auto, Off selector
-Gain control
-Time delay(phase) control
-Crossover control
-Room size control
-Custom DSP(digital signal processing) enables superior engineering refinement
-CE and FCC approved; EMC and safety pre-approved
-Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
-Patented HCOM modulation and control techniques for unparalleled audio accuracy
-Sound optimized soft clippingSoft start power up with mute/de-mute
-Thermal and over-current protection
-Standby converter with low standby power consumption (less than 1 watt)
-Universal mains operation (100-240 V, 50-60 Hz)
-Standby power consumption 170 mW @ 230 VErP (1275/2008/EC) compliant
-Energy Star®v3.0 compliant
-117 dBA dynamic range
-THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
-THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
-CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
-High output current limit of 30 A
-Assembled by Power Sound Audio
Cabinet
-Vented/Ported Enclosure
-Elaborate slot port design offers a unique blend of extension and laminar air flow
-Front-firing driver
-Acoustically transparent grille
-Non-reflective matte black finish
-Precision machined CNC panels
-Rigid MDF baffles
-Heavily braced
-Rear mounted amplifier
-Dimensions (DxWxH): 27"x24"x28.5" with grille
Woofer
-Country of origin: China
-3500 W continuous program power capacity
-120 mm (4.7 in) voice coil
-96 dB sensitivity
-Neodymium based motor for highest possible strength to weight ratio
-Double spider design with optimized compliance
-Ventilated voice coil gap for reduced power compression
-Aluminum demodulating ring
