Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.
-At just 21"(D) x 15"(W) x 30"(H) but housing dual 12-inch high BL neodymium woofers and our proprietary 960 watt ICEpower® amplifier the new TV24 Neo-M subwoofer packs a big punch into an unconventional form factor. A lean 15 inches in width gives the TV24 Neo-M unheard of placement flexibility for its performance capabilities.
-The TV24 Neo-M subwoofer is powered by a 960W RMS (2100W PEAK) built-in amplifier with ICEpower® audio technology. The amplifier is assembled in Ohio using proprietary software and hardware.

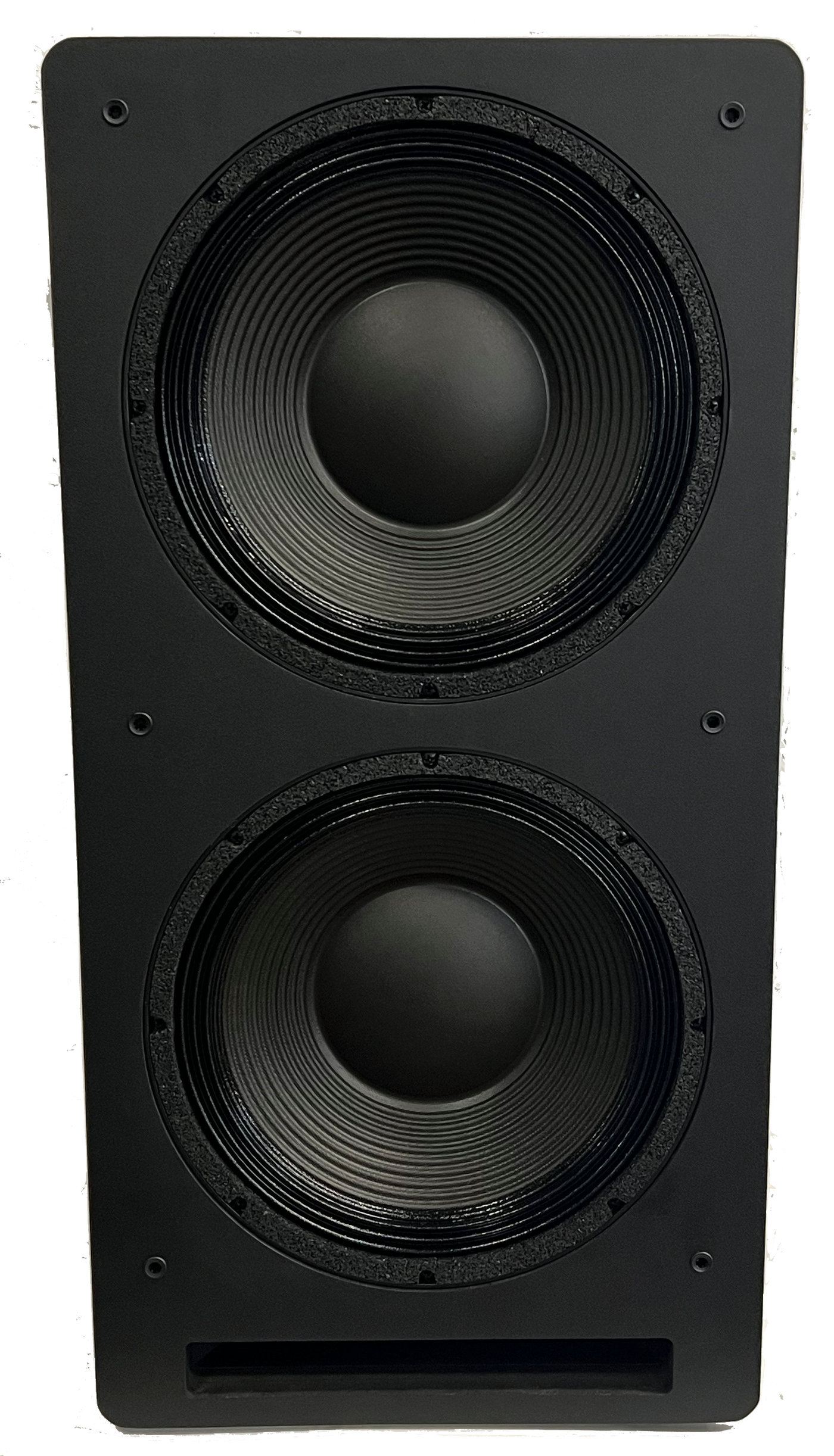

-The MDF enclosure is well braced with a double thickness woofer baffle. The enclosure is finished with a non-reflective matte covering. The acoustically transparent fabric grille covers the dual front firing 12 inch Neodymium woofers. The amplifier is mounted on the rear baffle.
| Design | Vented/Ported |
|---|---|
| Drivers | Two 12" Neodymium Woofers |
| Powered | Yes |
| Amp | 960W RMS (2100W PEAK) |
| Enclosure | CNC machined MDF |
| Frequency Response | 14hz-170Hz Anechoic (+/-3dB) |
| In-Room Extension | 10hz-12Hz |
| Unboxed Size (DxWxH) | 21" x 15" x 30" with grille |
| Boxed Size (DxWxH) | 27" x 20" x 36" |
| Unboxed Weight | 105 lbs |
| Boxed Weight | 115 lbs |
Included In The Box
-One TV24 Neo-M powered subwoofer
-Grille
-One owner's manual
-One 6' AC power cord
Amp
-ICEpower® audio technology
-Amplifier Power: 960 watts
-Inputs: Left and Right RCA
-Inputs: Left and Right XLR12V Trigger
-On, Auto, Off selector
-Gain control
-Time delay(phase) control
-Crossover control
-Room size control
-Custom DSP(digital signal processing) enables superior engineering refinement
-CE and FCC approved; EMC and safety pre-approved
-Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
-Patented HCOM modulation and control techniques for unparalleled audio accuracy
-Sound optimized soft clipping
-Soft start power up with mute/de-mute
-Thermal and over-current protection
-Standby converter with low standby power consumption (less than 1 watt)
-Universal mains operation (100-240 V, 50-60 Hz) Standby power consumption 170 mW @ 230 VErP (1275/2008/EC) compliant
-Energy Star®v3.0 compliant
-117 dBA dynamic range
-THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
-High output current limit of 30 A
-Assembled by Power Sound Audio
Cabinet
-Vented/Ported Enclosure
-Elaborate slot port design offers a unique blend of extension and laminar air flow
-Dual front-firing 12" woofers

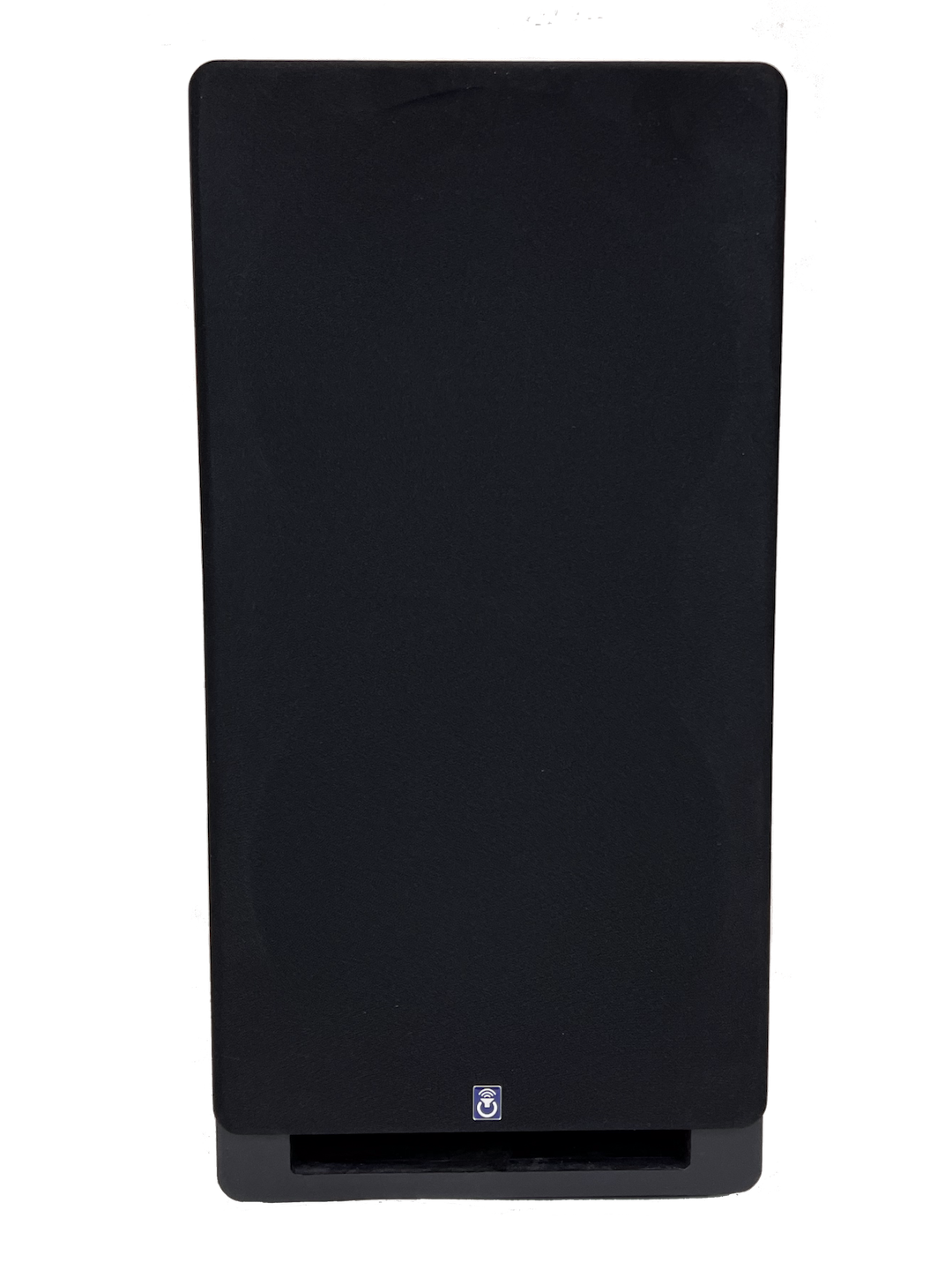

-Acoustically transparent fabric grille cover
-Non-reflective black matte finish
-Precision machined CNC panels
-Rigid MDF baffles
-Heavily braced

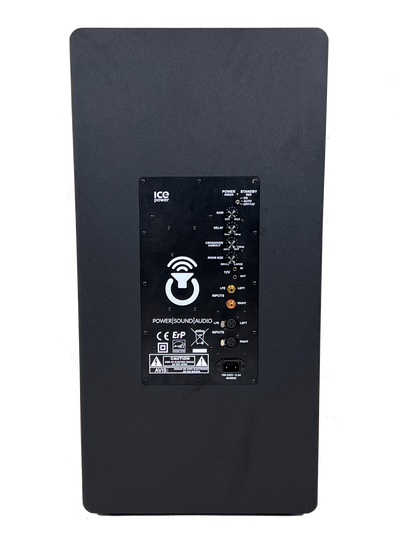

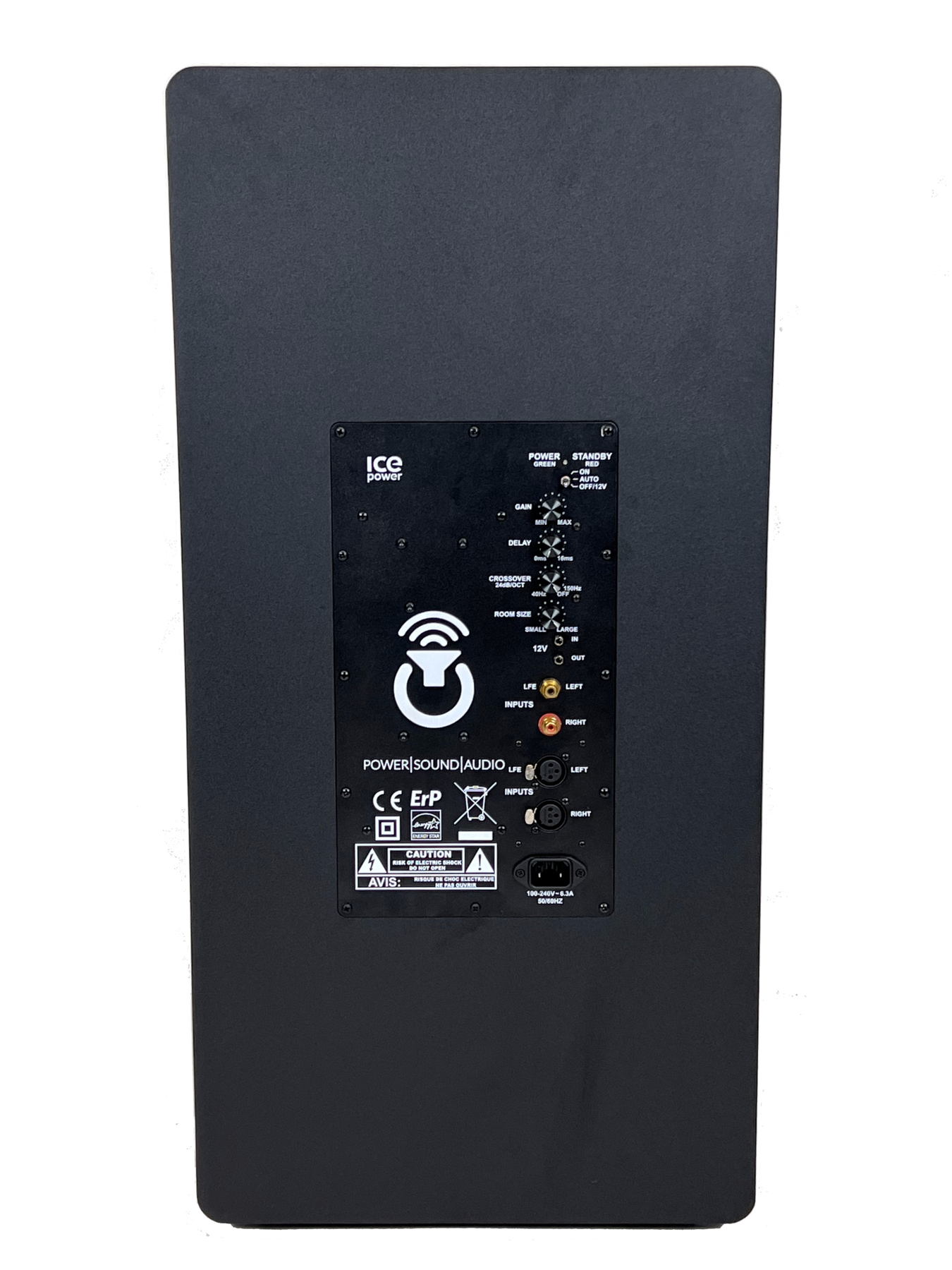

-Rear mounted amplifier
-Dimensions (DxWxH): 21"x15"x30" includes grille
Woofer
-Neodymium motor with heat resistant N38 magnets structure
-Glass fiber+Copper voice coil with high thermal capabilities
-Aluminium frame
-Low carbon top plate
-Designed by Power Sound Audio and made in China
