TV42 Ipal
TV42 Ipal
TV42 Ipal
TV42 Ipal
TV42 Ipal

TV42 Ipal

Regular price$6,999.99
/

Quantity
Auto Subwoofer EQ

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.


-A true "no compromise" subwoofer that offers a stunning combination of sheer power and articulation. The TV42 has two 21 inch woofers, 8000 watt RMS. MDF vented cabinet with a two-inch thick front baffle.

-The TV42 subwoofer is powered by a 8000W RMS (10000W PEAK) cabinet mounted amplifier. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity and has a two inch thick front baffle to minimize reactionary mass counter force from the dual 21 inch IPAL woofers. The enclosure is finished with a non-reflective and extremely durable textured material. The amplifier is mounted on the rear baffle.

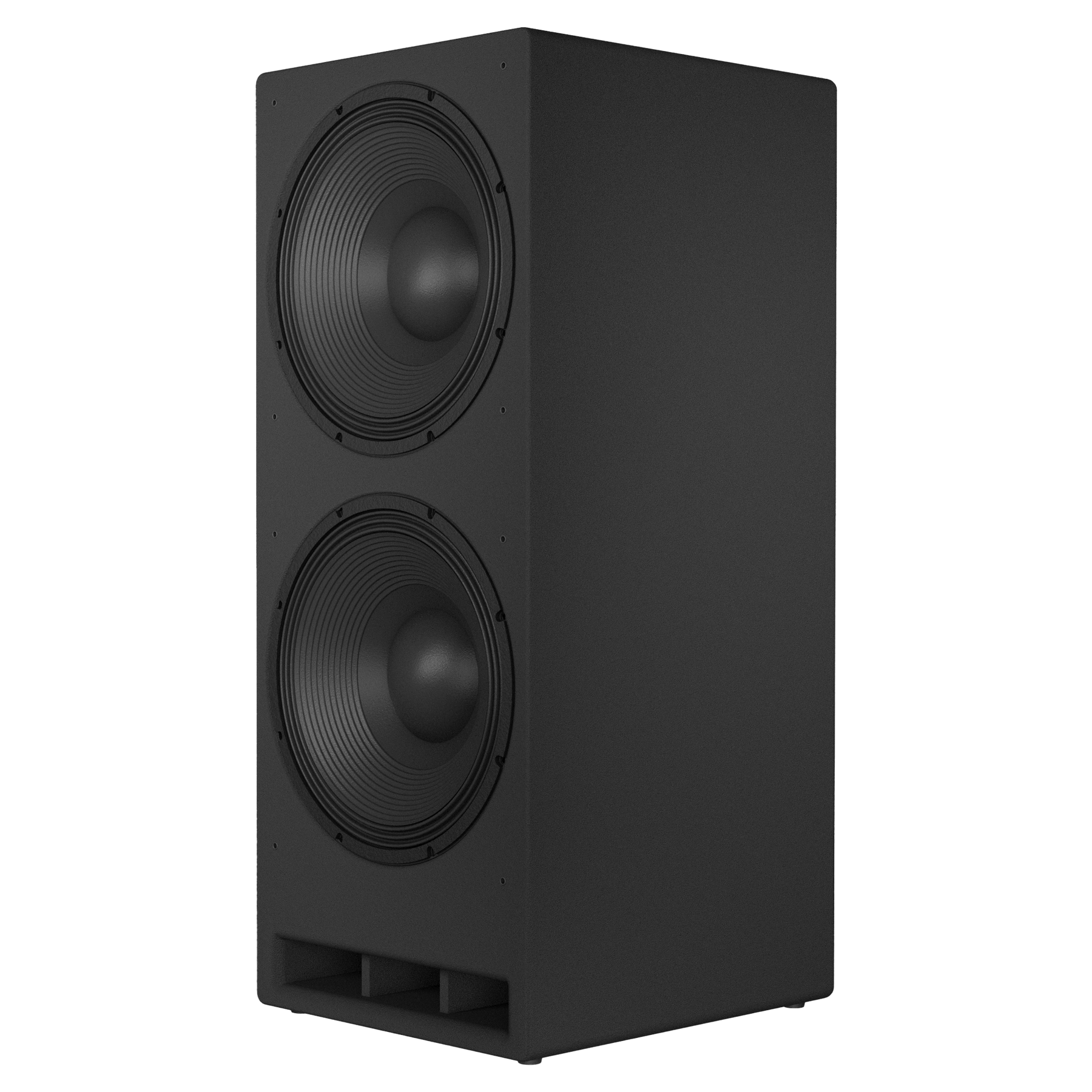

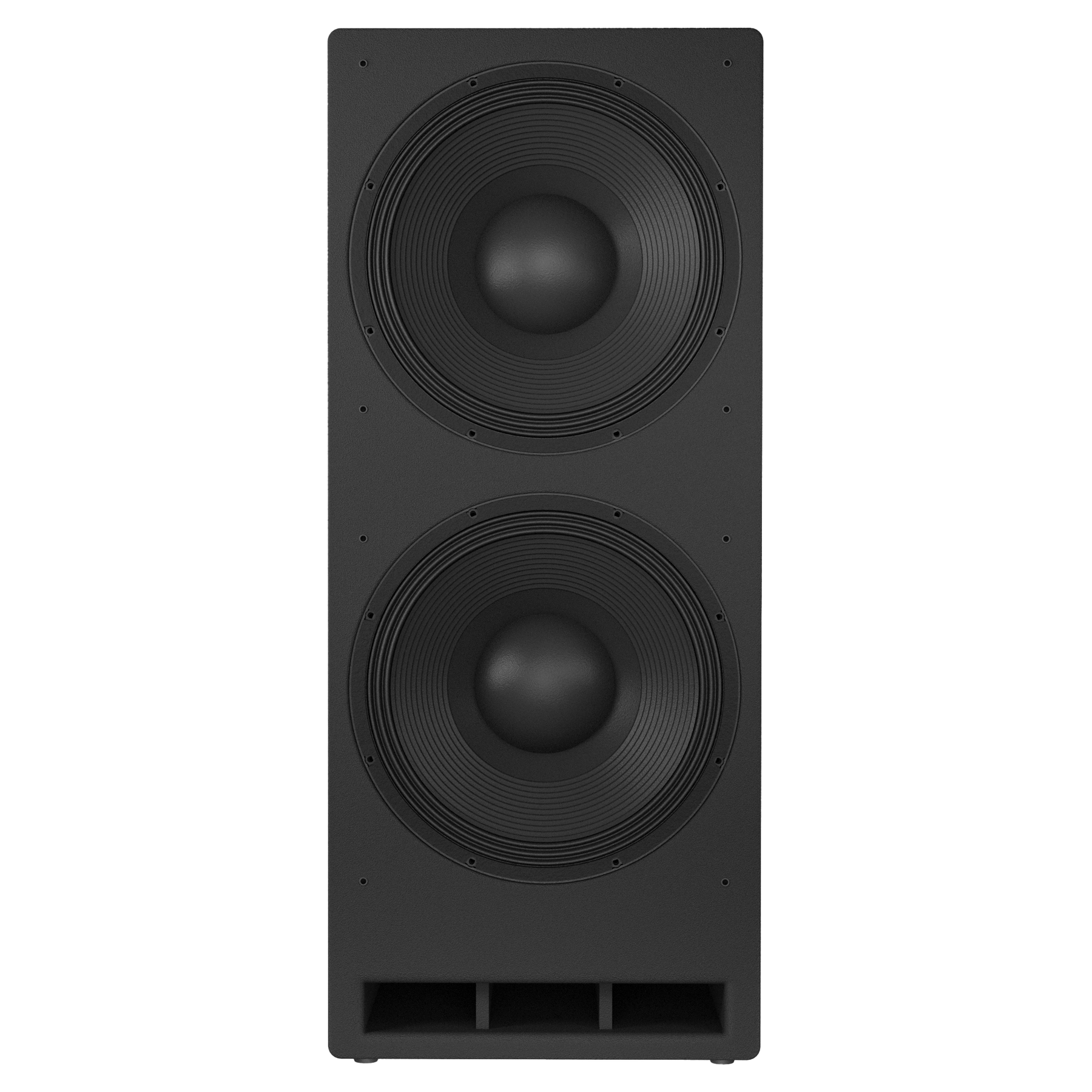

-The TV42 incorporates two 21 inch IPAL woofers in a large vented cabinet that is tuned unusually low for home audio. This allows powerful in room extension down to 8-11hz while also providing incredible mid and upper bass efficiency. This is truly a unique combination in the industry.
Design Vented
Drivers Two 21" Italian IPAL Woofers
Powered Yes
Amp 8000W RMS (10000W PEAK)
Enclosure CNC machined MDF
Frequency Response 11Hz-150Hz Anechoic (+/-3dB)
In-Room Extension 8Hz-11Hz
Size (DxWxH) 28" x 24" x 57" with grilles
Unboxed Weight 307 lbs
Boxed Weight 371 lbs

Amp

  • Amplifier Power: 8000W RMS (10000W Peak)
  • Amplifier Topology: Innovative post-filter feedback class-D topology, achieves ruler-flat frequency response, low distortion and very high damping across the whole audio band
  • Uses latest generation power MOSFET transistors and highly optimized output stage for up to 95% efficiency, allowing quiet fan-less operation up to unprecedented power levels
  • Full featured protection: DC, overload, low impedances, shorts, under/over-voltage, overheating, etc.
  • Includes gentle soft-start and long-term power limiter to reduce the chances of tripping breakers
  • 120VAC (optional 120VAC-240VAC for an additional charge)
  • Unbalanced Inputs: Left and Right RCA
  • Balanced Input/Output: XLR input and XLR loop output.
  • On, Auto, Off selector
  • Gain control
  • Time delay(phase) control
  • Crossover control
  • Room size control
  • Custom DSP(digital signal processing) enables superior engineering refinement
  • LED indicators for standby and power mode

  • Cabinet

  • Vented Enclosure
  • Super durable, black sand textured finish
  • Precision machined CNC panels
  • Heavily braced

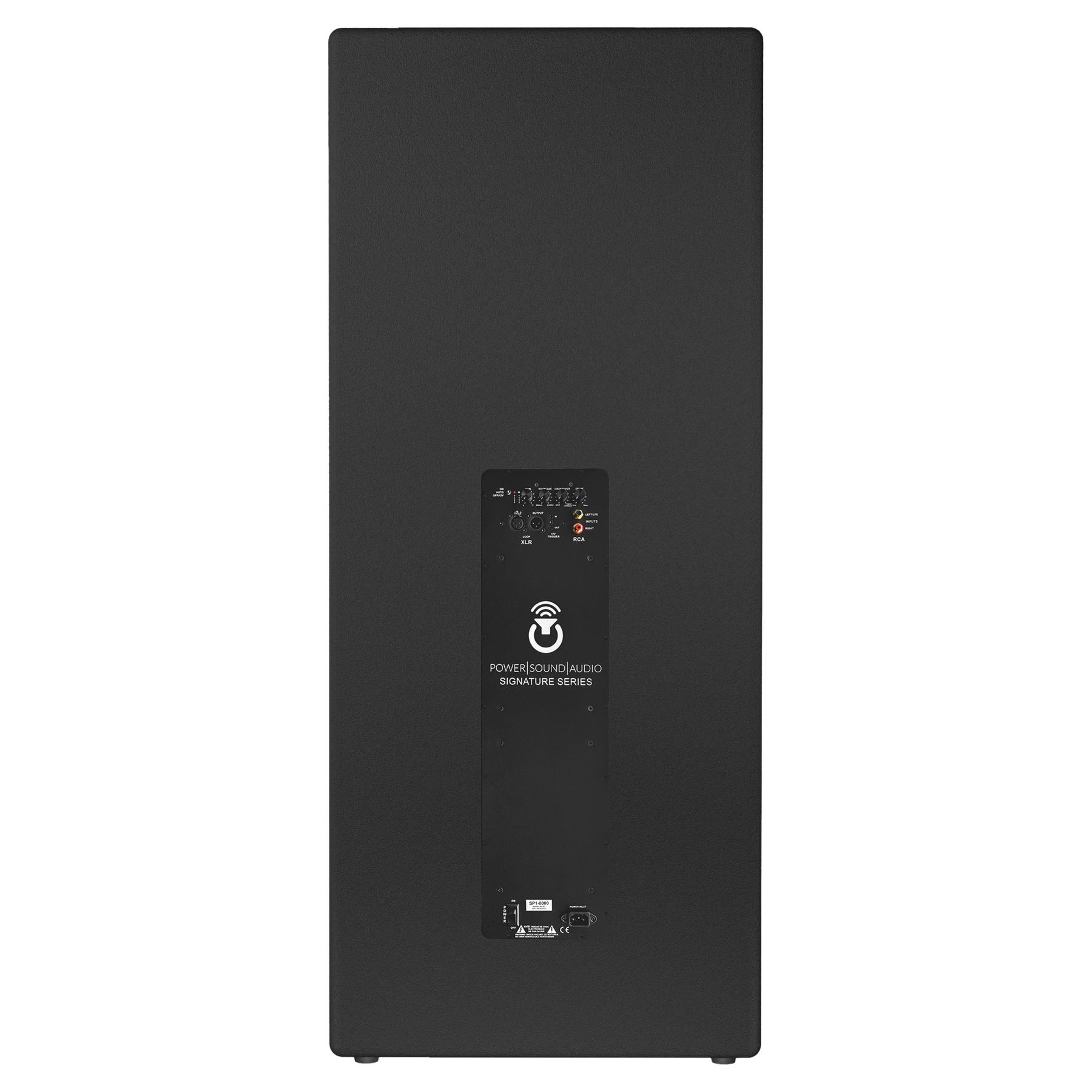

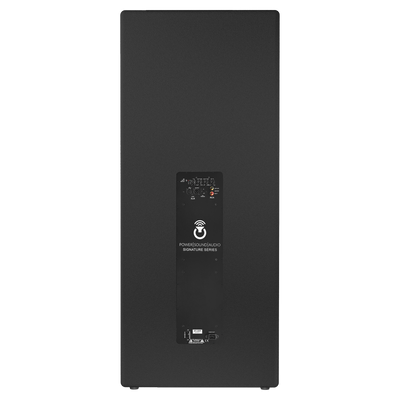

  • Rear mounted amplifier
  • USA manufactured rubber feet
  • Dimensions (DxWxH): 28" x 24" x 57" with grilles
  • Cabinet Made in the USA

  • Woofer

  • 21 inch B&C Ipal woofer design from Italy
  • 6 inch split wound aluminum voice coil
  • 5000 watt thermal capabilities
  • 99dB sesnitivity
  • Motor force of 522(BL^2 / re)
  • Extensive inductance control to optimize sound quality

  • Performance coming soon!

    Assembled with pride in Mineral Ridge, ohio
