C6K-M

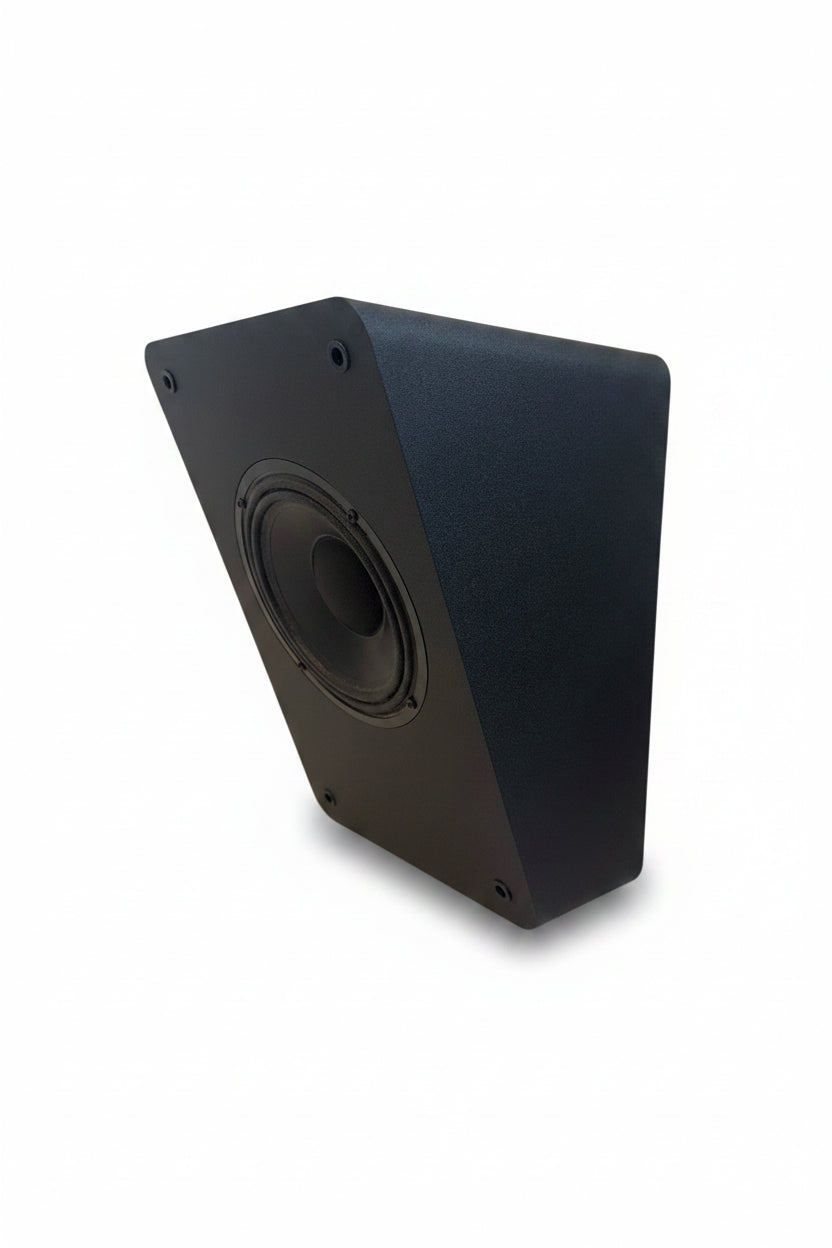

The C6K-M (K=klippel optimized and M=matte finish) is designed to be wall mounted for surround use in a multichannel audio system
-Like all Power Sound Audio products the C6K-M is assembled by hand in our Ohio facility. Each speaker is measured before boxing to ensure a quality control experience far beyond industry standards.
| Design Optimization | Klippel Near Field Scanner |
|---|---|
| Cabinet Design | Sealed |
| Frequency Response | 100hz-18kHz |
| Sensitivity | 90dB (Per IEC Standard, 2.83v, 1 meter) |
| Inroom/Halfspace | 96dB |
| Nominal Impedance | 4 Ohms |
| Woofer |
6.5", Ciare Ferrite~LF
|
| Tweeter | Ciare Neodymium~HF |
| Horn |
N/A
|
| Power Handling |
175 Watts Program (Music or Movies)
|
| Unboxed Size (DxWxH) |

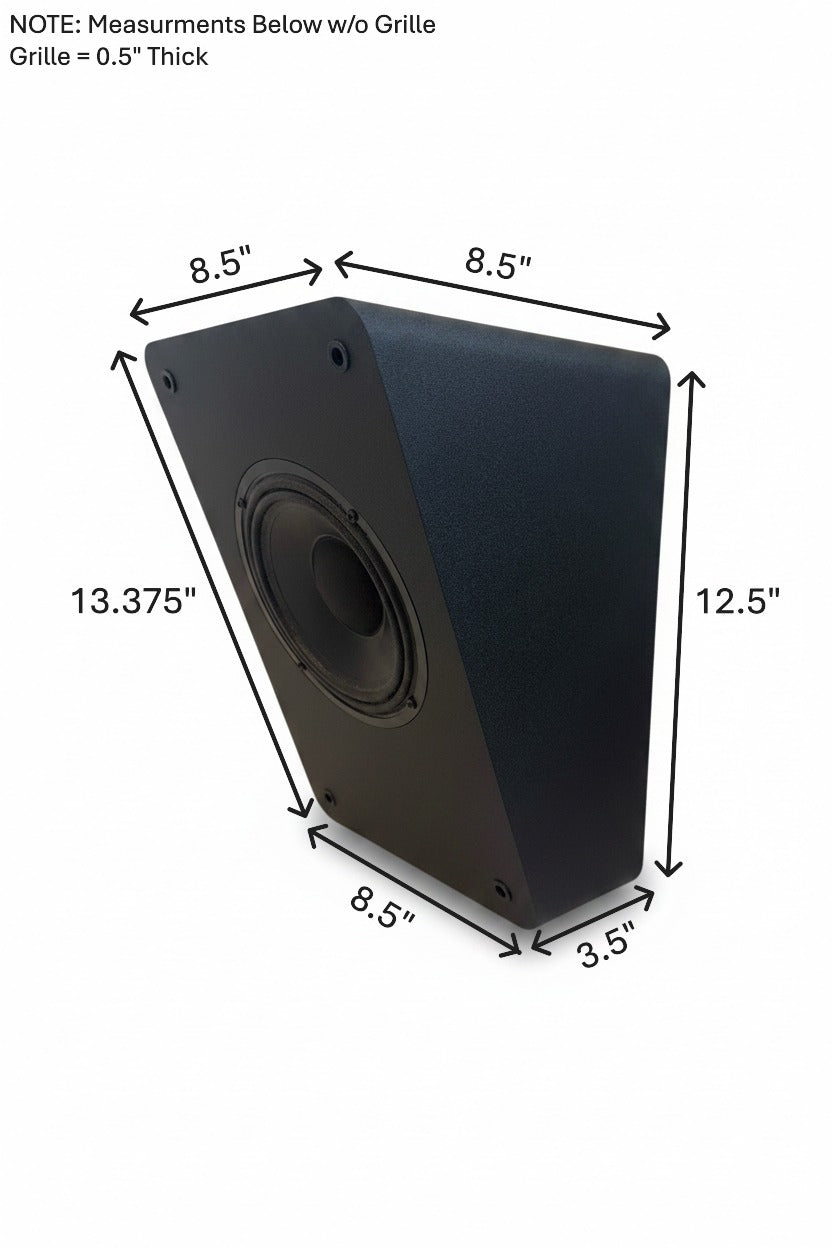

9" x 8.5" x 12.5"(Max Depth-9.125", Min Depth-4.125")With Grille
|
| Boxed Size (DxWxH) |
tbd" x tbd" x tbd"
|
| Unboxed Weight | 15.7 lbs |
| Boxed Weight | tbd lbs |
6.5-inch Coaxial
-Ciare speaker's CXI160-Magnet ~ Ferrite-LF, Neodymium-HF
-2 inch Copper LF Coil, 1.75 inch Aluminum HF Coil
-Former ~ Glass Fiber LF
-Xmax ~ 4.5mm
-Cone ~ Exponential Doped Cellulose Fiber-LF, Planar Mylar-HF

Crossover
-Klippel Near Field Scanner optimized and completely designed in house at Power Sound Audio
