Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.
-Dual opposing 18 inch drivers fire from each side of the S3612 to produce dynamic levels of bass that will fill your home theater with cinema-quality sound. Prepare to awe your friends and family with the S3612 home audio powered subwoofer.
-The S3612 subwoofer is powered by a 4000W RMS (6000W PEAK) cabinet mounted amplifier. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.
-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. Two acoustically transparent fabric grilles cover each side-firing 18 inch subwoofer driver. The amplifier is mounted on the rear baffle.

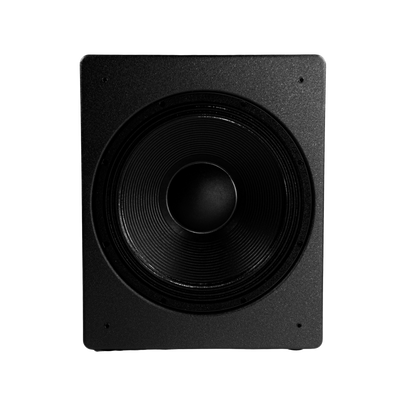

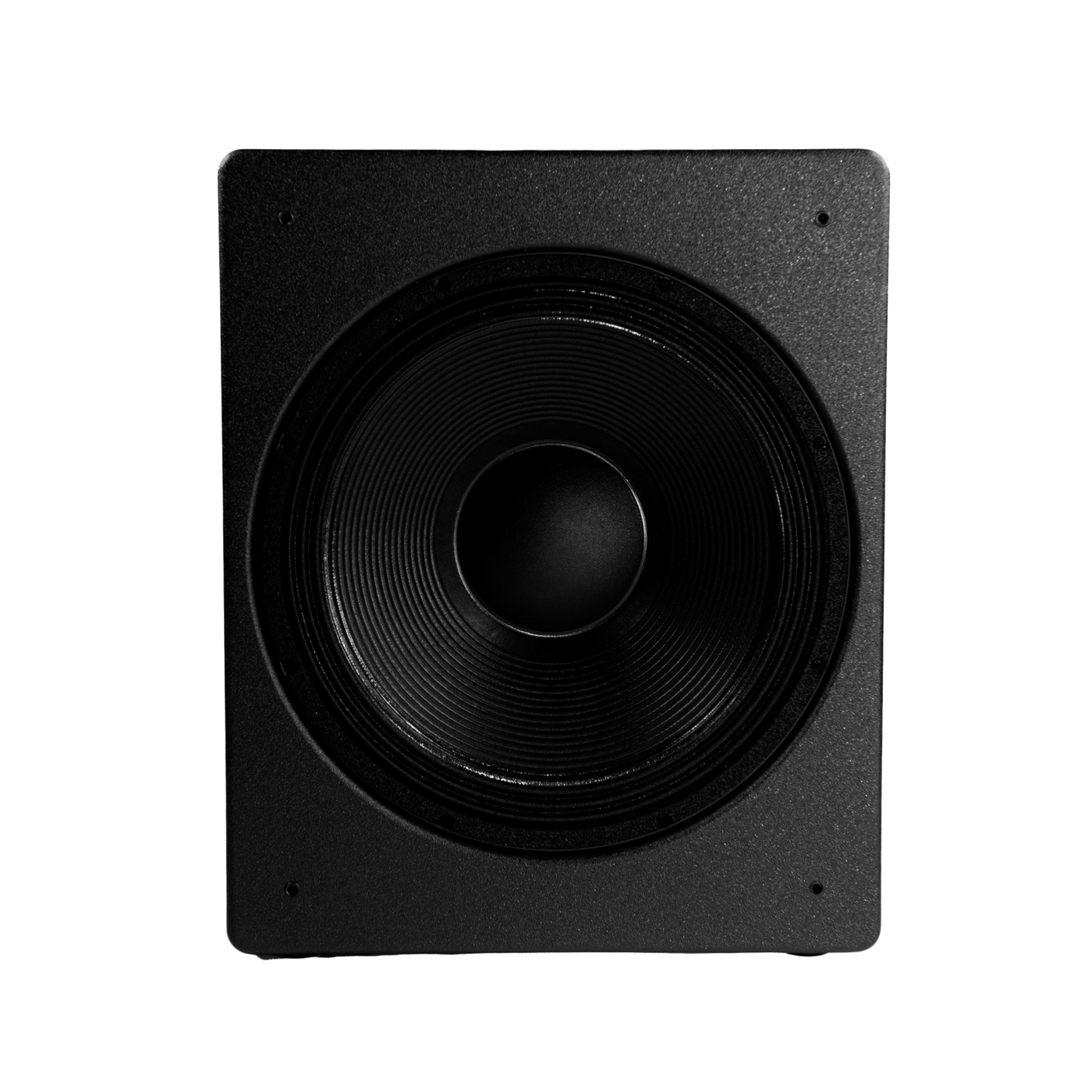

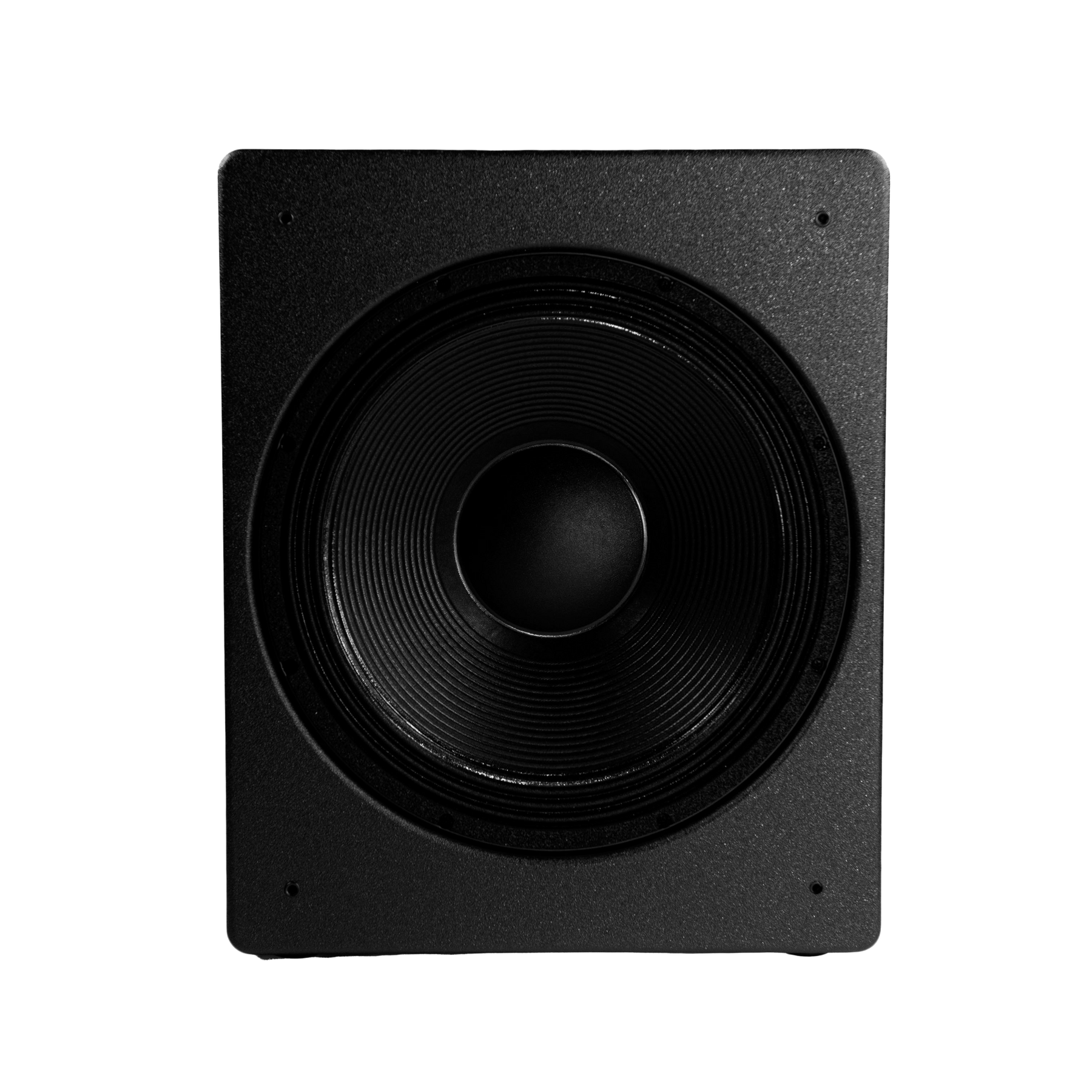

-The S3612 contains two 18 inch neodymium subwoofer drivers from B&C.
| Design |
Sealed |
| Drivers |
Two 18" Neodymium Woofers |
| Powered |
Yes |
| Amp |
4000W RMS (6000W PEAK) |
| Enclosure |
CNC machined MDF |
| Frequency Response |
17Hz-200Hz Anechoic (+/-3dB) |
| In-Room Extension |
7Hz-11Hz
|
| Size (DxWxH) |
20" x 28" x 24" with grilles
|
| Weight |
137 lbs
|
ICEpower® audio technology
Amplifier Power: 1920 watts
Inputs: Left and Right RCA
Inputs: Left and Right XLR
12V Trigger
On, Auto, Off selector
Gain control
Time delay(phase) control
Crossover control
Room size control
Custom DSP(digital signal processing) enables superior engineering refinement
CE and FCC approved; EMC and safety pre-approved
Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
Patented HCOM modulation and control techniques for unparalleled audio accuracy
Sound optimized soft clipping
Soft start power up with mute/de-mute.
Thermal and over-current protection
Standby converter with low standby power consumption (less than 1 watt)
Universal mains operation (100-240 V, 50-60 Hz)
Standby power consumption 170 mW @ 230 V
ErP (1275/2008/EC) compliant
Energy Star®v3.0 compliant
117 dBA dynamic range
THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
High output current limit of 30 A
Assembled by Power Sound Audio
Sealed Enclosure

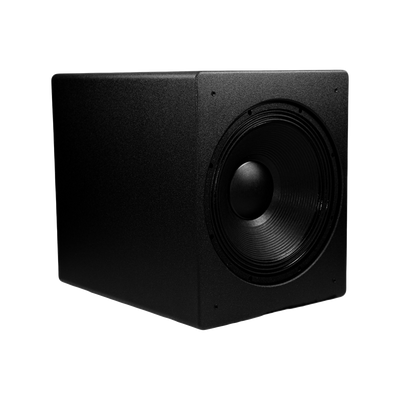

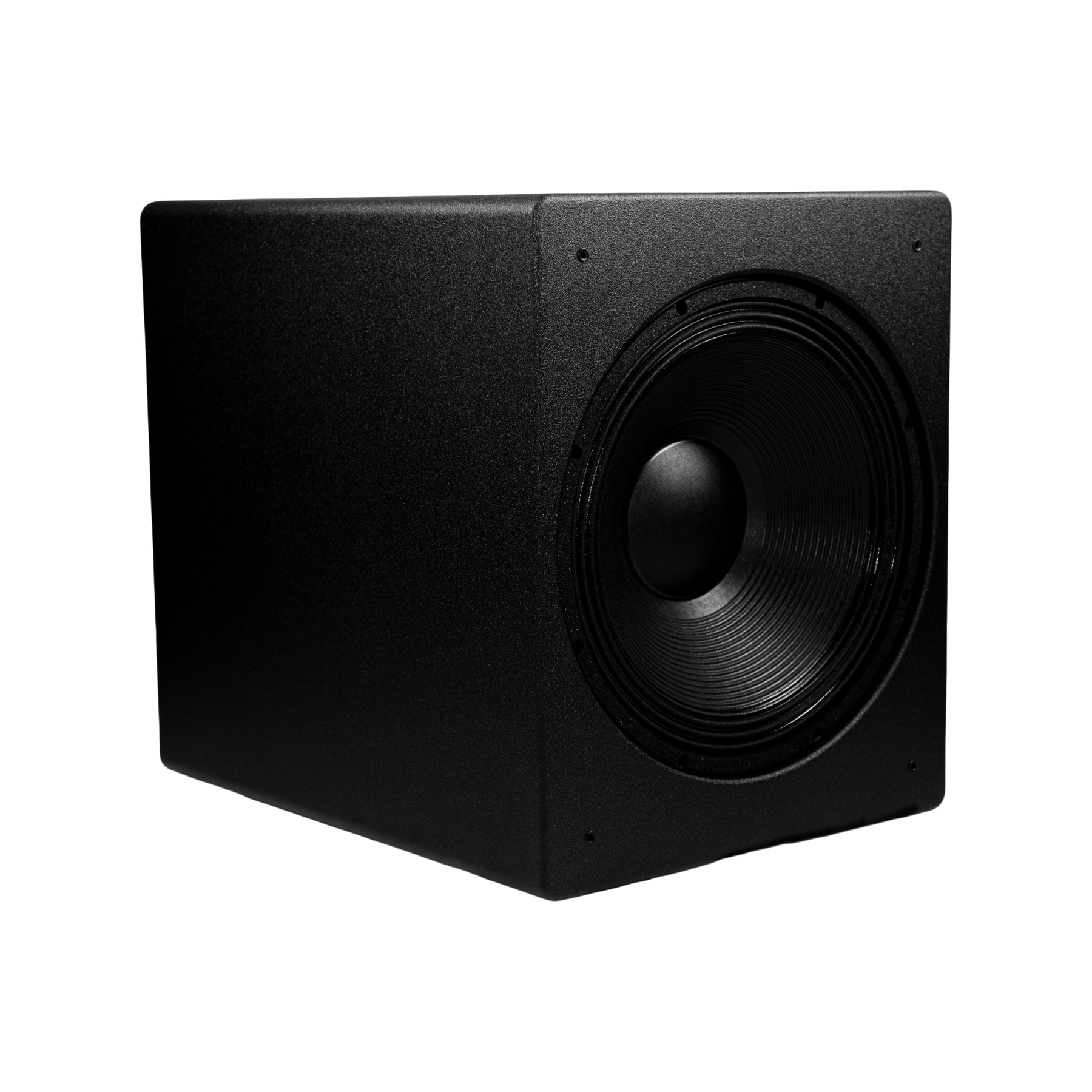

Side-firing drivers
Reactive force canceling driver array

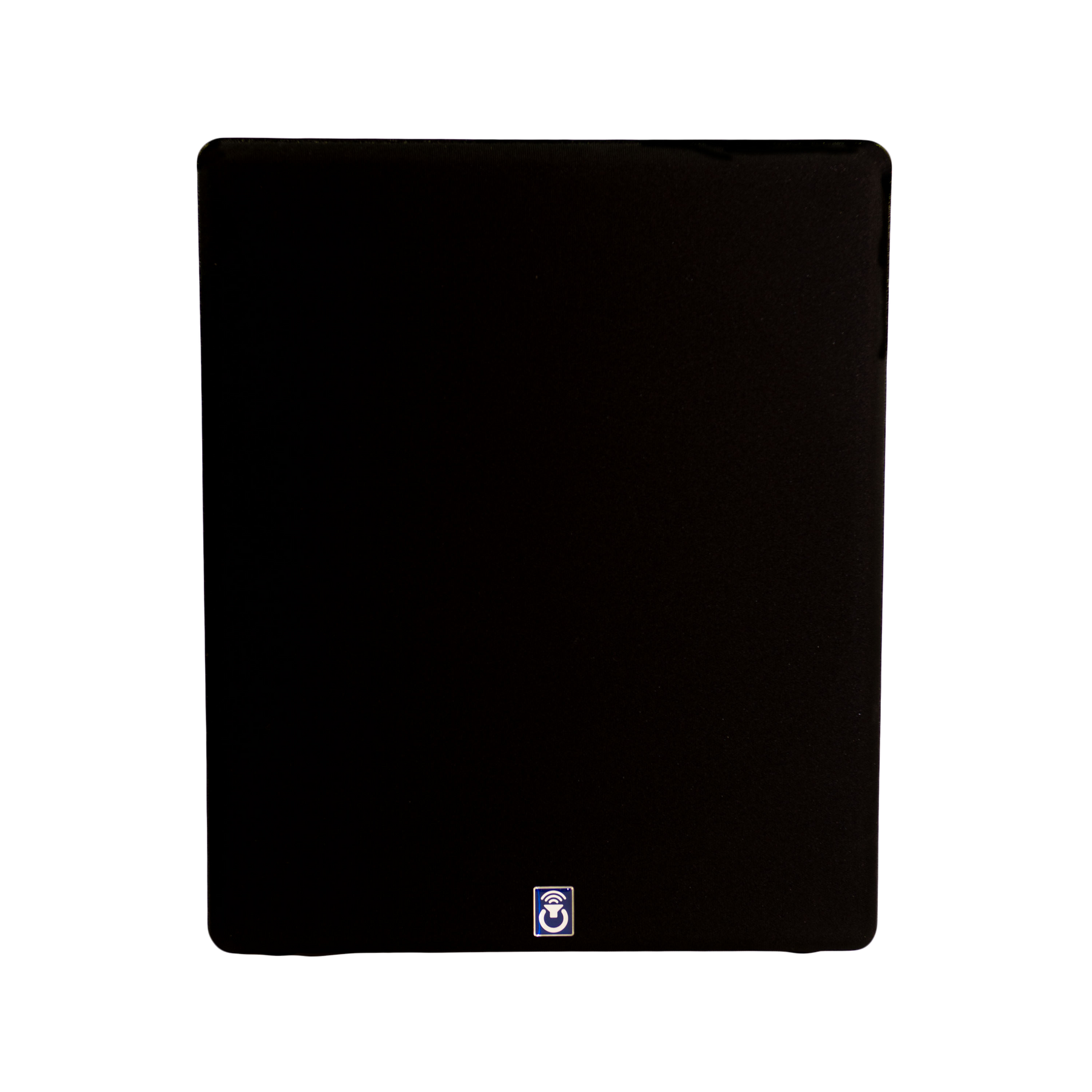

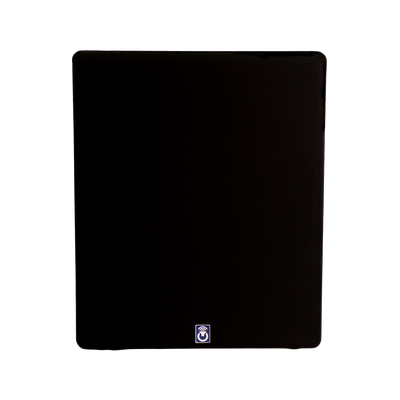

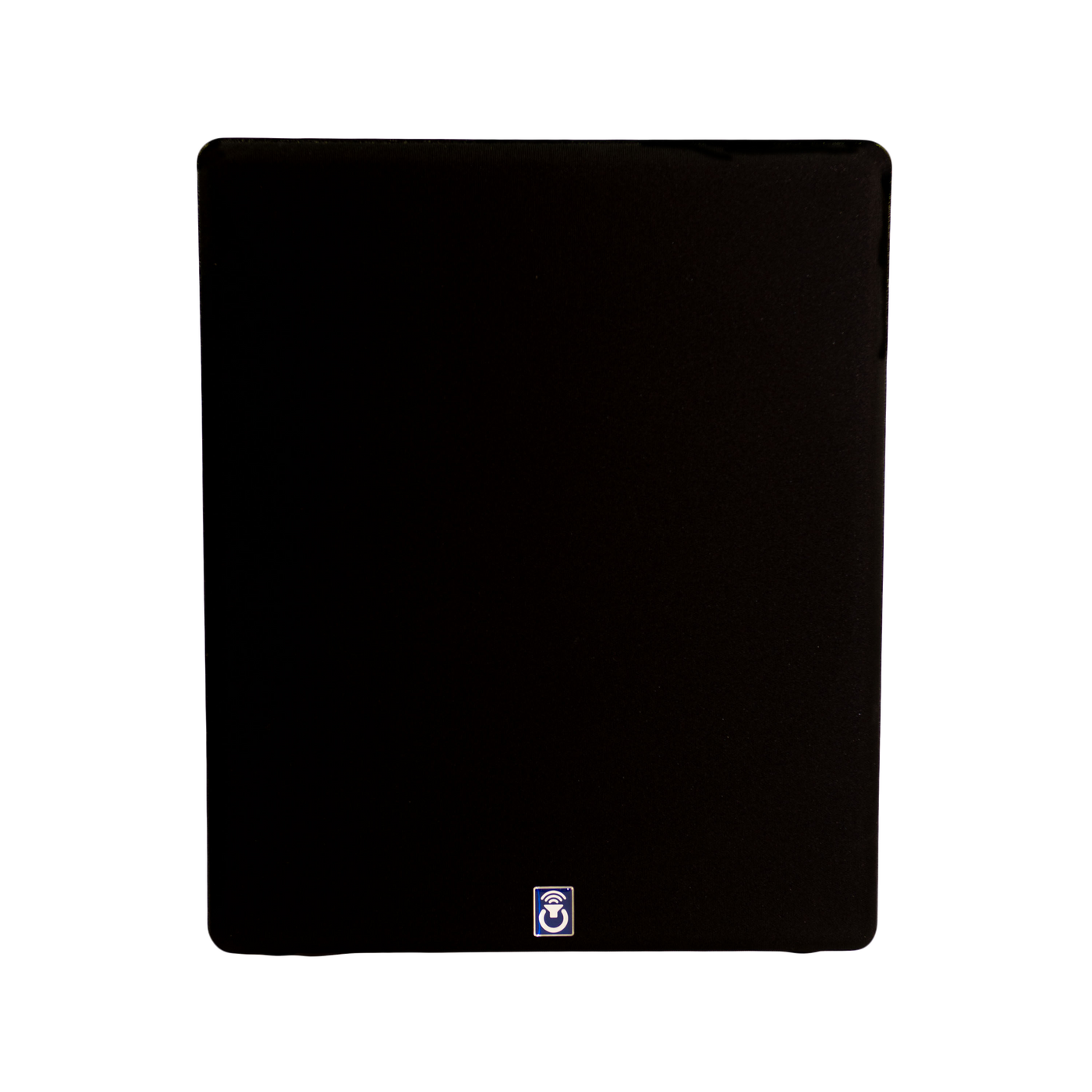

Acoustically transparent fabric grille covers
Super durable, black sand textured finish
Precision machined CNC panels
Rigid MDF baffles
Heavily braced

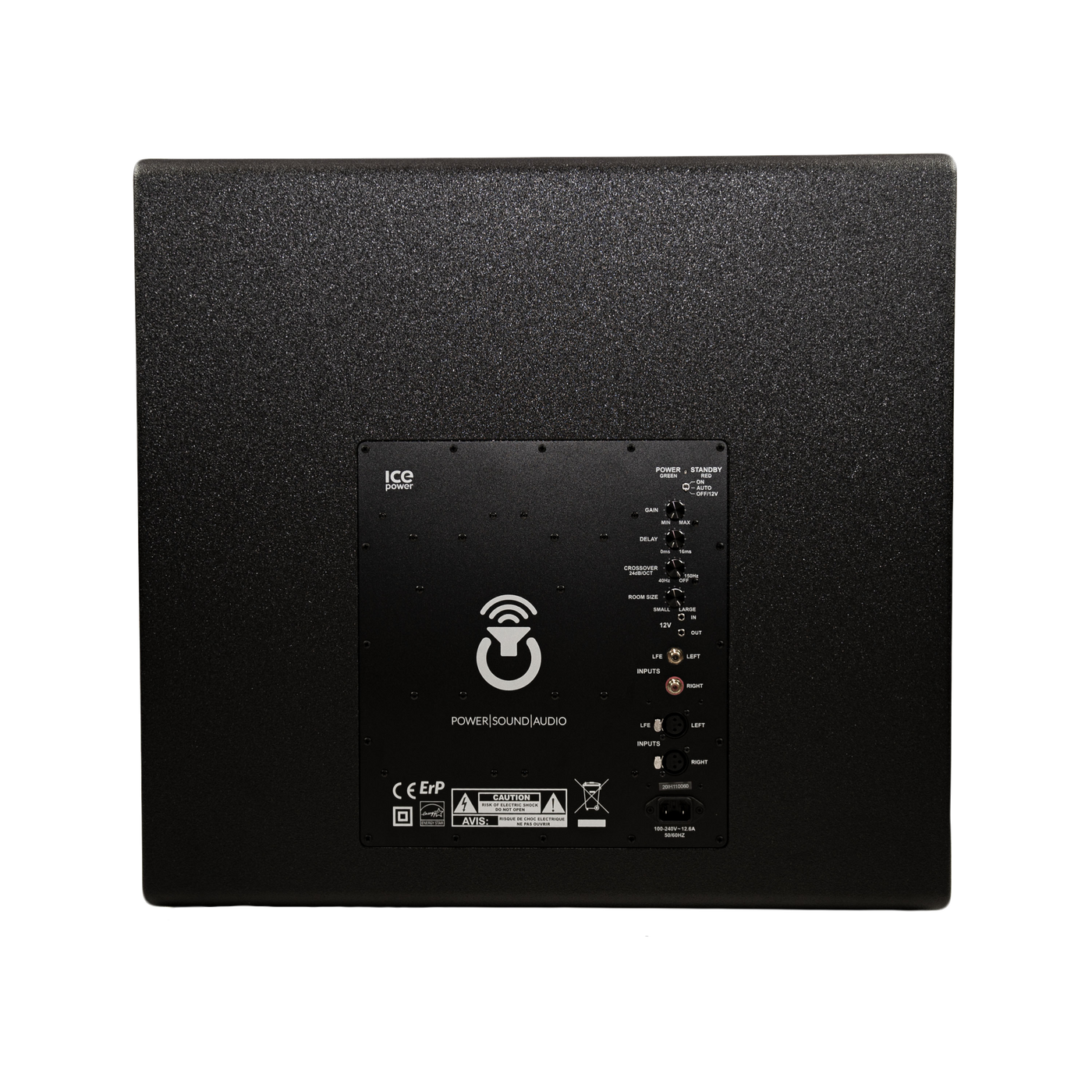

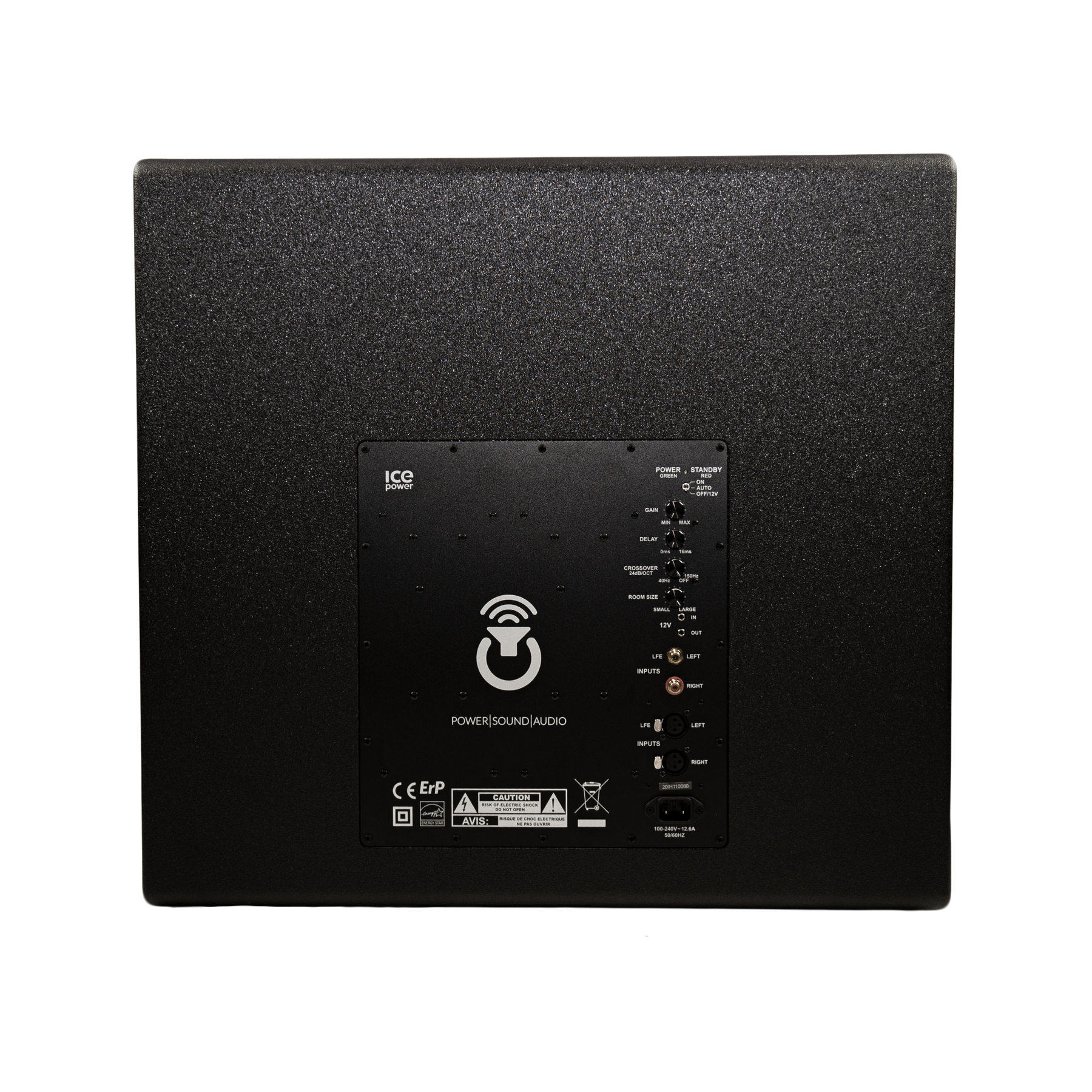

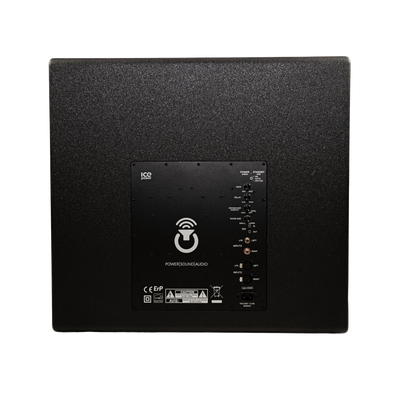

Rear mounted amplifier
USA manufactured rubber feet
Dimensions (DxWxH): 20"x28"x24" includes grilles
Weight: 137 lbs
Cabinet Made in the USA
3000 W continuous program power capacity
100mm (4 in.) four layer aluminum voice coil
98 dB sensitivity
Neodymium magnet allows a very high force factor and linear excursion
Double silicon spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Aluminium demodulation ring for very low distortion
