Regular price$1,499.99
/

ORDER FULFILLMENT EXPECTED TO BE MID JULY


Quantity
Auto Subwoofer EQ

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.


-The EV18F-M powered home theater subwoofer is a perfect choice for the bass enthusiast. Designed to accurately reproduce source material at extremely high levels, the EV18F-M delivers concussive output during the most intense action movie, and accurate musical definition like you've never heard from a vented subwoofer.

-The EV18F-M subwoofer is powered by a 1920W RMS (4300W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

-MDF enclosure that is finished with a non-reflective matte covering. An acoustically transparent fabric grille covers the front-firing 18-inch subwoofer driver. The amplifier is mounted on the rear baffle.

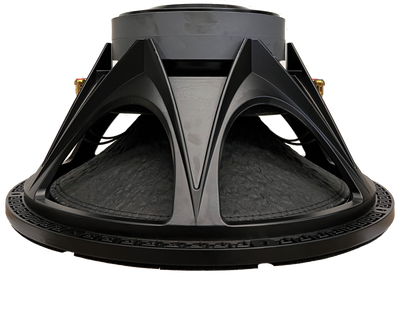

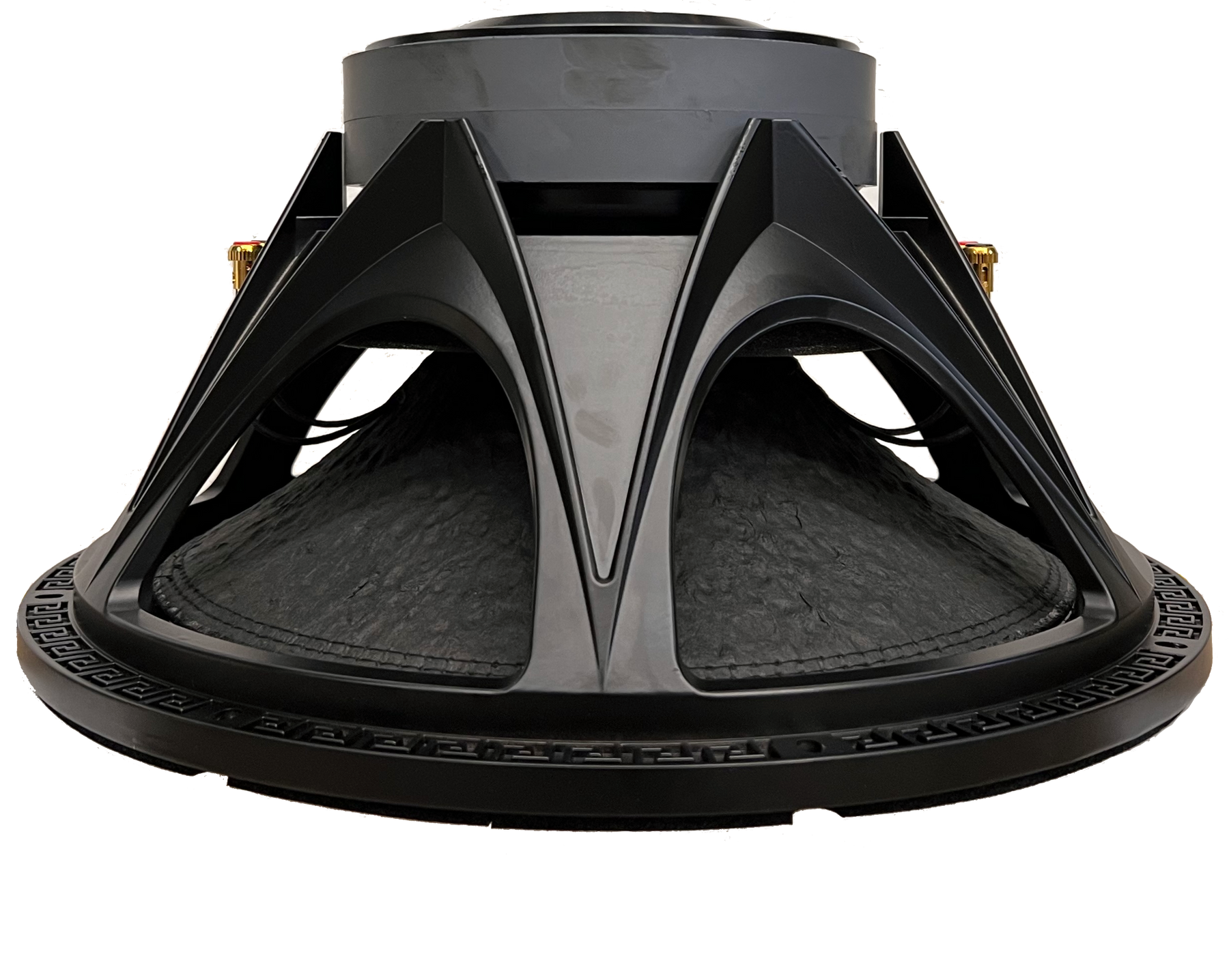

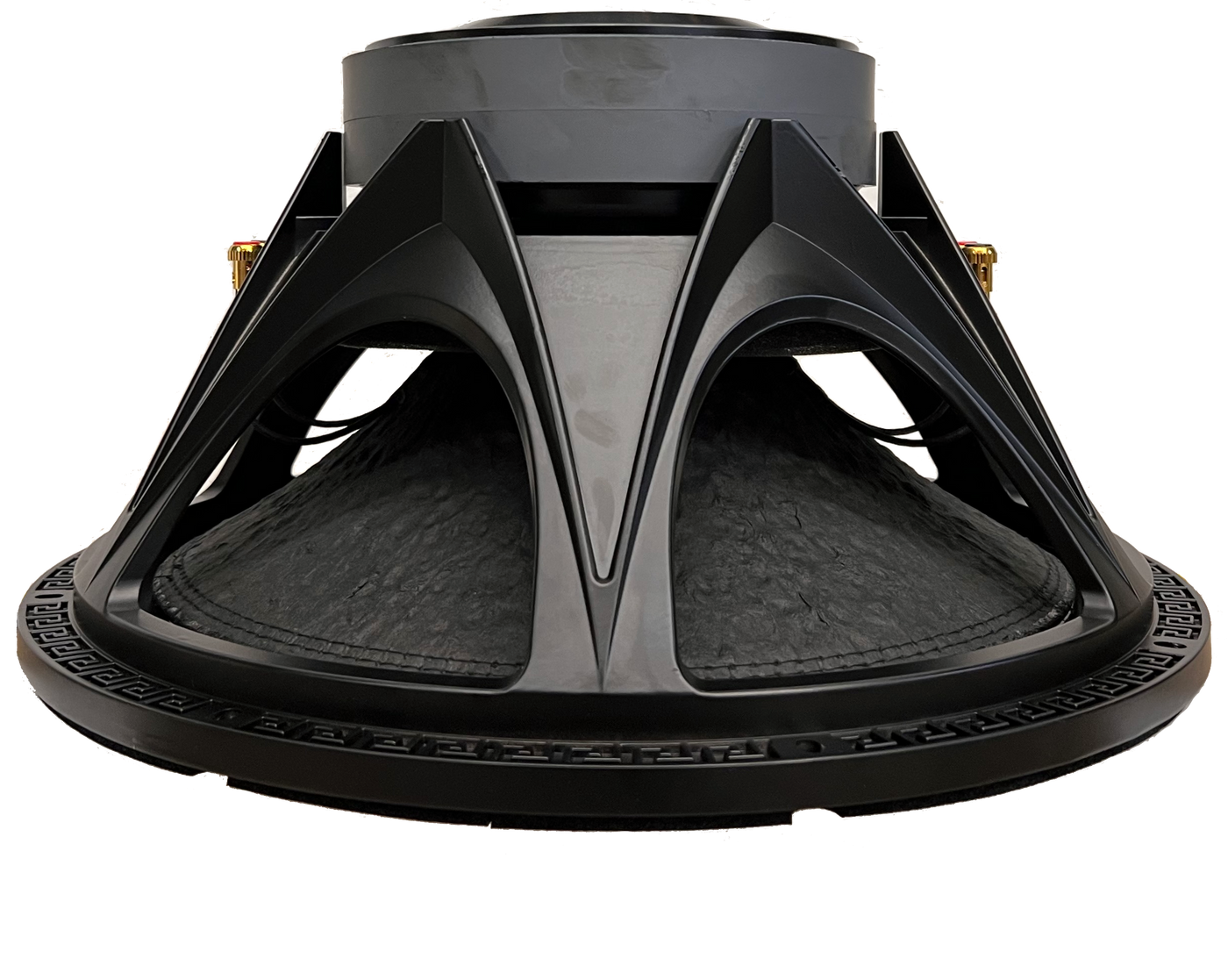

-The EV18F-M contains a single 18-inch Ferrite woofer with a newly designed motor and suspension specific to Power Sound Audio's target goals.
Design Vented
Drivers 18" Ferrite High BL Woofer
Powered Yes
Amp 1920W RMS (4300W PEAK)
Enclosure CNC machined MDF
Frequency Response 16hz-150Hz Anechoic (+/-3dB)
In-Room Extension 12hz-15Hz
Unboxed Size (DxWxH) 22" x 20" x 24" with grille
Boxed Size (DxWxH) 26" x 24" x 30"
Unboxed Weight 125 lbs
Boxed Weight 141 lbs

Included In The Box

  • One EV18F-M powered subwoofer
  • Grille
  • One owner's manual
  • One 6' AC power cord
  • Four furniture (carpet) sliders

  • Amp

  • ICEpower® audio technology
  • Amplifier Power: 1920 watts
  • Inputs: Left and Right RCA
  • Inputs: Left and Right XLR
  • 12V Trigger
  • On, Auto, Off selector
  • Gain control
  • Time delay(phase) control
  • Crossover control
  • Room size control
  • Custom DSP(digital signal processing) enables superior engineering refinement
  • CE and FCC approved; EMC and safety pre-approved
  • Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
  • Patented HCOM modulation and control techniques for unparalleled audio accuracy
  • Sound optimized soft clipping
  • Soft start power up with mute/de-mute.
  • Thermal and over-current protection
  • Standby converter with low standby power consumption (less than 1 watt)
  • Universal mains operation (100-240 V, 50-60 Hz)
  • Standby power consumption 170 mW @ 230 V
  • ErP (1275/2008/EC) compliant
  • Energy Star®v3.0 compliant
  • 117 dBA dynamic range
  • THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
  • THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
  • CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
  • High output current limit of 30 A
  • Assembled by Power Sound Audio

  • Cabinet

  • Vented/Ported Enclosure
  • Elaborate slot port design offers a unique blend of extension and laminar air flow
  • Front-firing driver
  • Acoustically transparent fabric grille cover
  • Non-reflective matte black finish
  • Rigid MDF baffles
  • Heavily braced

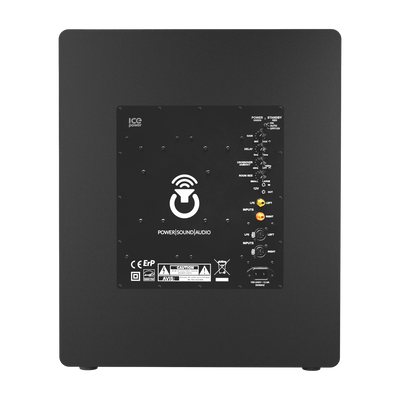

  • Rear mounted amplifier
  • Dimensions (DxWxH): 22"x20"x24" includes grille

  • Woofer

  • Country of origin: China
  • 4800 W continuous program power capacity
  • 100mm (4 in.) four layer copper voice coil
  • Large Ferrite magnet structure refined for sound quality and high motor force(BL)
  • Double suspension spiders for improved control under high excursions
  • Ventilated voice coil gap combined with extraordinarily high power capacity virtual eliminate thermal compression
  • Low inductance motor to maximize sound quality

  • Performance coming soon!
