Regular price$1,699.99
/

Quantity
Auto Subwoofer EQ

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.



-Developed for the discerning audiophile, the S1813M powered home theater subwoofer is ready to pound your chest and rattle your windows. The S1813M is a relatively compact subwoofer with the power reserves to pack a serious punch.

-The S1813M subwoofer is powered by a 1920W RMS (4300W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

-The MDF enclosure is well braced with a double thickness woofer baffle.  The enclosure is finished with a non-reflective matte covering. An acoustically transparent fabric grille covers the front-firing 18 inch subwoofer driver. The amplifier is mounted on the rear baffle.

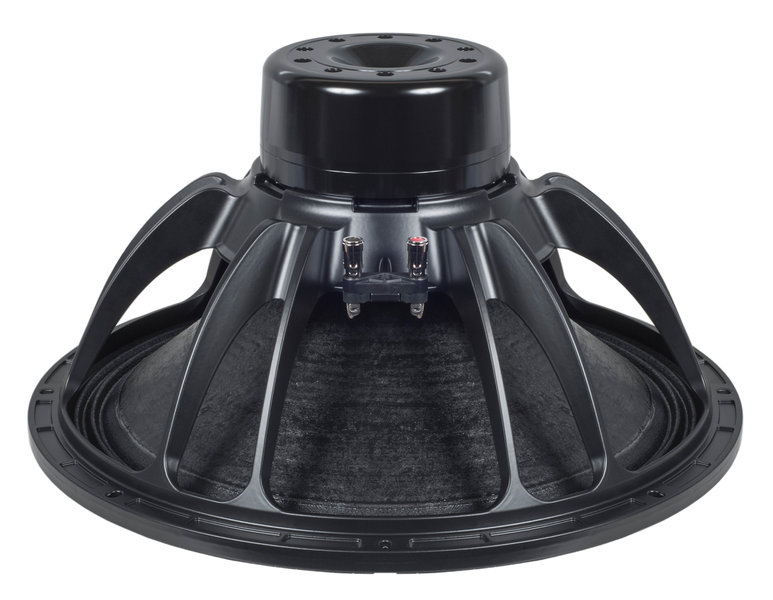

-The S1813M contains a single 18 inch neodymium subwoofer driver from B&C in Italy that was developed exclusively for PSA. This new woofer technology is based on a dual voice coil motor design with extraordinary motor strength, thermal handling, and sensitivity.
Design Sealed
Drivers 18" Italian Neodymium High BL Woofer
Powered Yes
Amp 1920W RMS (4300W PEAK)
Enclosure CNC machined MDF
Frequency Response 17Hz-200Hz Anechoic (+/-3dB)
In-Room Extension 7Hz-11Hz
Size (DxWxH) 22" x 20" x 20.5" with grille
Weight 79 lbs
  • ICEpower® audio technology
  • Amplifier Power: 1920 watts
  • Inputs: Left and Right RCA
  • Inputs: Left and Right XLR
  • 12V Trigger
  • On, Auto, Off selector
  • Gain control
  • Time delay(phase) control
  • Crossover control
  • Room size control
  • Custom DSP(digital signal processing) enables superior engineering refinement
  • CE and FCC approved; EMC and safety pre-approved
  • Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
  • Patented HCOM modulation and control techniques for unparalleled audio accuracy
  • Sound optimized soft clipping
  • Soft start power up with mute/de-mute.
  • Thermal and over-current protection
  • Standby converter with low standby power consumption (less than 1 watt)
  • Universal mains operation (100-240 V, 50-60 Hz)
  • Standby power consumption 170 mW @ 230 V
  • ErP (1275/2008/EC) compliant
  • Energy Star®v3.0 compliant
  • 117 dBA dynamic range
  • THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
  • THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
  • CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
  • High output current limit of 30 A
  • Assembled by Power Sound Audio
  • Sealed Enclosure
  • Front-firing driver
  • Acoustically transparent fabric grille cover
  • Non-reflective matte black finish
  • Precision machined CNC panels
  • Rigid MDF baffles
  • Heavily braced
  • Rear mounted amplifier
  • Rubber feet
  • Dimensions (DxWxH): 22"x20"x20.5" with grille
  • Weight: 79 lbs
  • 3000 W continuous program power capacity
  • 100mm (4 in.) four layer aluminum voice coil
  • 98 dB sensitivity
  • Neodymium magnet allows a very high force factor and linear excursion
  • Double silicon spider with optimized compliance
  • Ventilated voice coil gap for reduced power compression
  • Aluminium demodulation ring for very low distortion
  • Performance coming soon!
