Unleash your home theater
Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.
-The TV1513 powered home theater subwoofer will satisfy your cravings for deep accurate bass. Feel the impact the potent low- tuned TV1513 subwoofer delivers during your favorite Hollywood action flick.
-The TV1513 subwoofer is powered by a 1920W RMS (4300W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

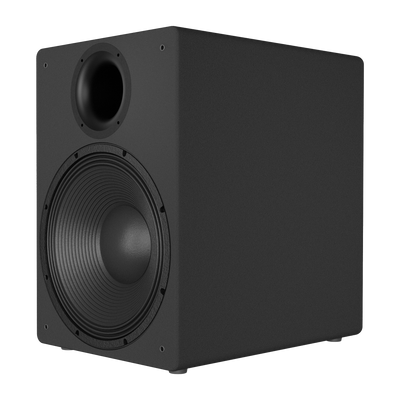

-The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. The front-firing 15 inch subwoofer driver and 4 inch Precision Port™ are mounted to the front baffle of the enclosure, and covered with an acoustically transparent grille. The amplifier is mounted to the rear baffle.
-The TV1513 contains a 15 inch Neo motor woofer from B&C in Italy. With class leading thermal handling, motor strength, and inductance considerations you are assured of powerful and accurate bass reproduction.
| Design | Vented/Ported |
|---|---|
| Drivers | 15" Italian Neodymium High BL Woofer |
| Powered | Yes |
| Amp | 1920W RMS (4300W PEAK) |
| Enclosure | CNC machined MDF |
| Frequency Response | 14Hz-170Hz Anechoic (+/-3dB) |
| In-Room Extension | 10Hz-12Hz |
| Unboxed Size (DxWxH) | 24" x 17" x 25" with grille |
| Boxed Size (DxWxH) | 28" x 22" x 30" |
| Unboxed Weight | 91 lbs |
| Boxed Weight | 105 lbs |
Included In The Box
-One TV1513 powered subwoofer
-Grille
-One owner's manual
-One 6' AC power cord
Amp
-ICEpower® audio technology
-Amplifier Power: 1920 watts
-Inputs: Left and Right RCA
-Inputs: Left and Right XLR
-12V Trigger
-On, Auto, Off selector
-Gain control
-Time delay(phase) control
-Crossover control
-Room size control
-Custom DSP(digital signal processing) enables superior engineering refinement
-CE and FCC approved; EMC and safety pre-approved
-Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
-Patented HCOM modulation and control techniques for unparalleled audio accuracy
-Sound optimized soft clipping
-Soft start power up with mute/de-mute
-Thermal and over-current protection
-Standby converter with low standby power consumption (less than 1 watt)
-Universal mains operation (100-240 V, 50-60 Hz)
-Standby power consumption 170 mW @ 230 V
-ErP (1275/2008/EC) compliant
-Energy Star®v3.0 compliant
-117 dBA dynamic range
-THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
-THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
-CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
-High output current limit of 30 A
-Assembled by Power Sound Audio
Cabinet
-Vented/Ported Enclosure
-Front-firing driver
-Acoustically transparent grille
-Front mounted 4 inch Precision Port™
-Super durable, black sand textured finish
-Precision machined CNC panels
-Rigid MDF baffles
-Heavily braced
-Rear mounted amplifier
-USA manufactured rubber feet
-Dimensions (DxWxH): 24"x17"x25" with grille
-Cabinet Made in the USA
Woofer
-Country of origin: Italy
-3000 W continuous program power capacity
-110 mm (4 in) four layer aluminum voice coil
-97 dB sensitivity
-Neodymium magnet allows a very high force factor and linear excursion
-Double silicone spider with optimized compliance
-Ventilated voice coil gap for reduced power compression
-Aluminum demodulating ring for very low distortion
Performance coming soon!
Assembled with pride in Mineral Ridge, Ohio.
