Regular price$2,699.00
/

in stock


Quantity

Special Order Only - Contact Before Purchase

Unleash your home theater

Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

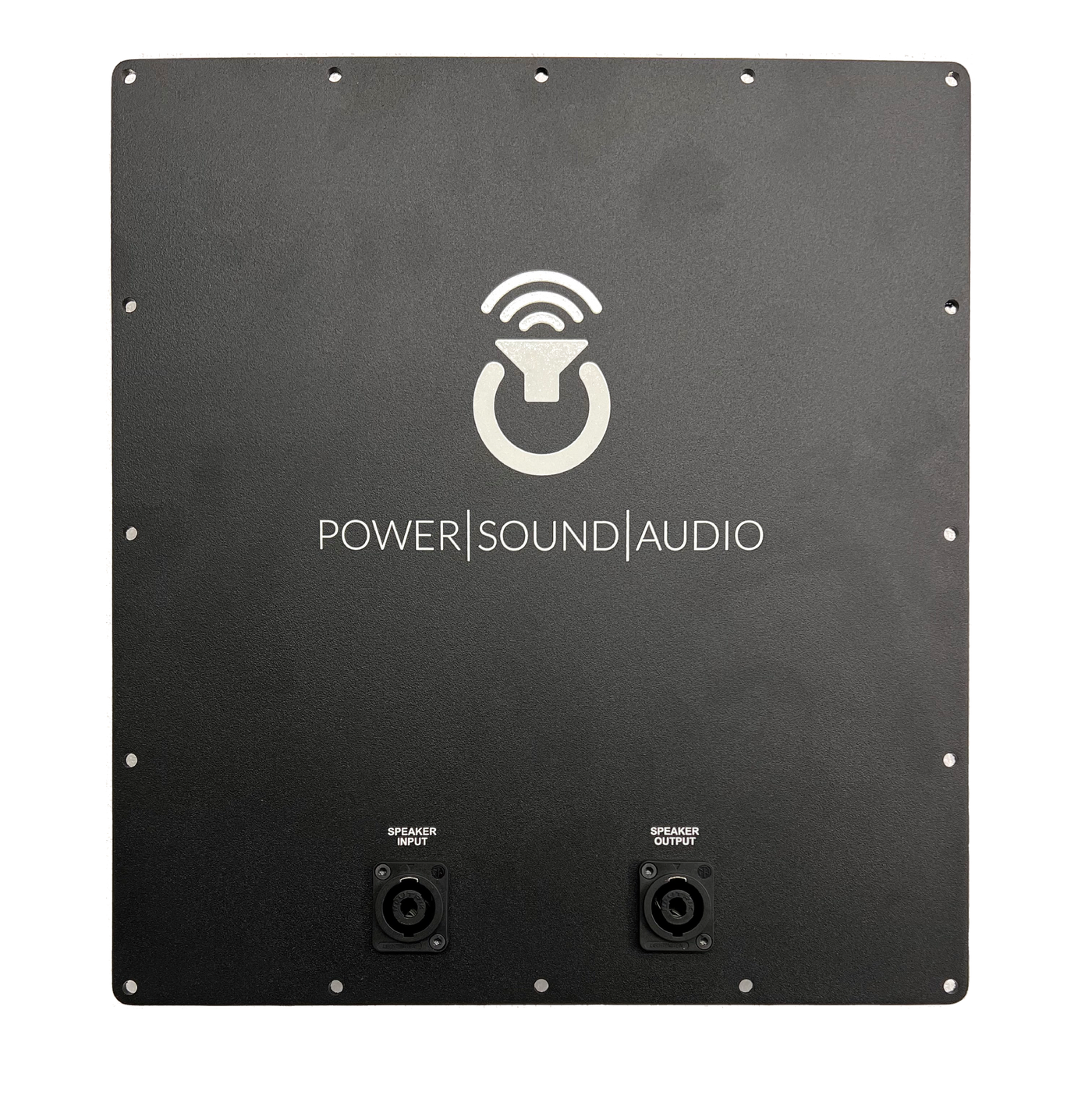

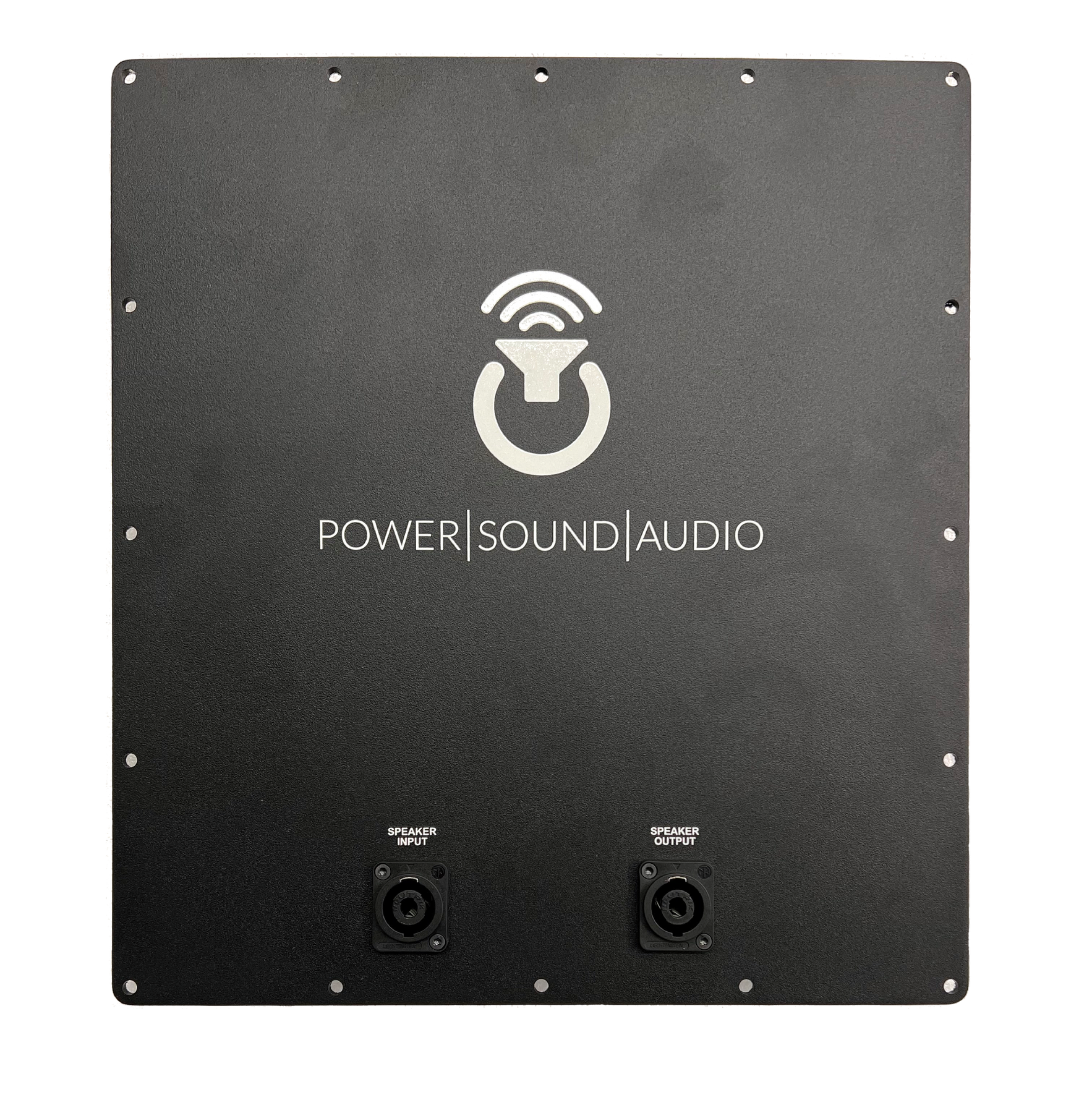

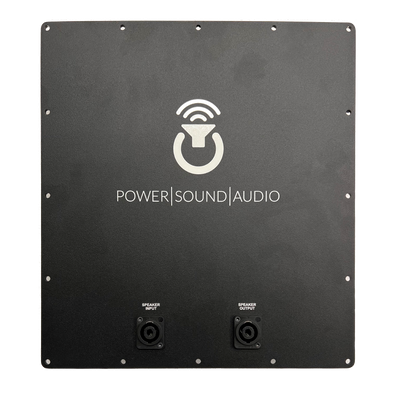

-The TV1813M-primary combines incredibly deep extension with prodigious mid and upper bass capabilities in a large, but manageable cabinet size. A wonderful balance of size, sheer power, and articulation. The 'Primary'subwoofer includes a 4000w speaker power amplifier which will provide 2500w to the primary cabinet used alone. If you connected the secondary cabinet, with a cable we include, the amplifier will provide 2000w to both cabinets. The 'Secondary' subwoofer is the same subwoofer as the primary, just without it's own amplifier.Buy together in a bundle to save $200.

-The TV1813M subwoofer is powered by a 4000W RMS (6000W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

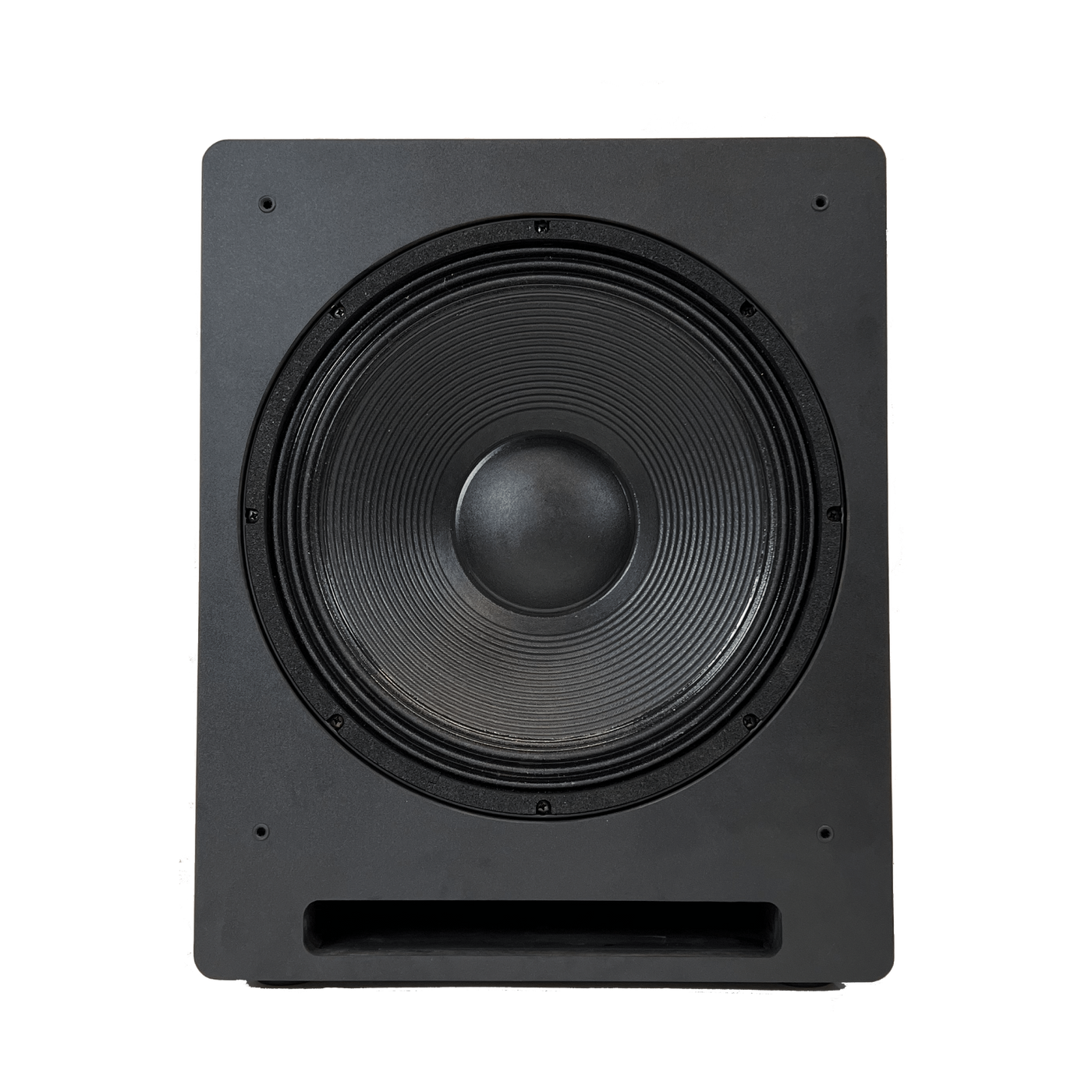

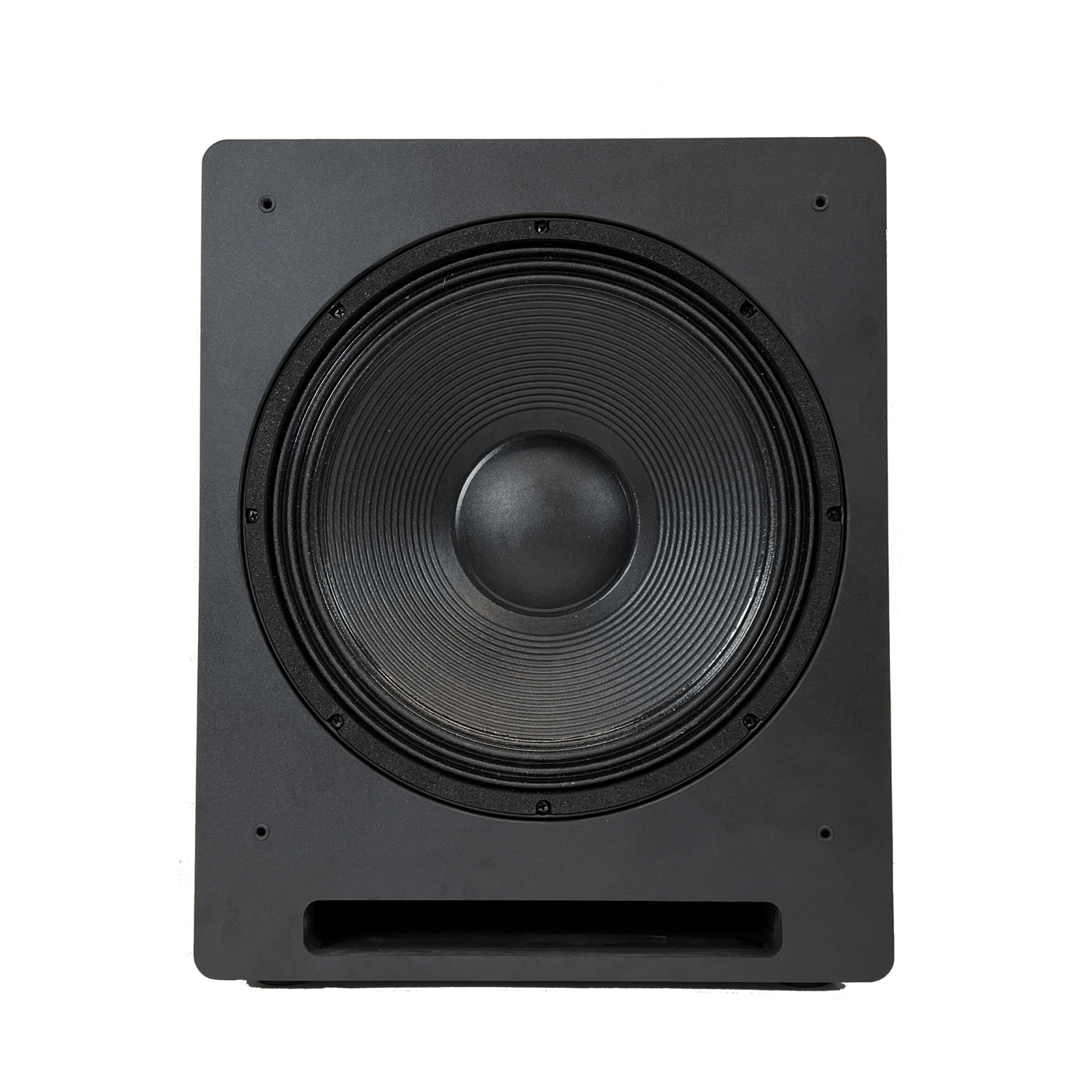

-The cabinet is made from high quality MDF using a mass cancelling woofer orientation. This ensures that the cabinet remains inert even at maximum volume. The finish is an understate, non-reflective 'matte' black that fits into any room décor without drawing undue attention to itself.

-The TV1813M contains a single 18 inch neodymium subwoofer driver from B&C in Italy that was developed exclusively for PSA. This new woofer technology is based on a dual voice coil motor design with extraordinary motor strength, thermal handling, and sensitivity.
Design Vented
Drivers 18" Italian Neodymium High BL Woofer
Powered Yes
Amp 4000W RMS (6000W PEAK)
Enclosure CNC machined MDF
Frequency Response 14Hz-150Hz Anechoic (+/-3dB)
In-Room Extension 9Hz-11Hz
Size (DxWxH) 32.5" x 20.5" x 25" with grille
Weight 135 lbs

Included In The Box

  • One TV1813M-primary powered subwoofer (TV1813M-secondary boxed separately)
  • Grille
  • One owner's manual
  • One 6' AC power cord
  • Four furniture (carpet) sliders

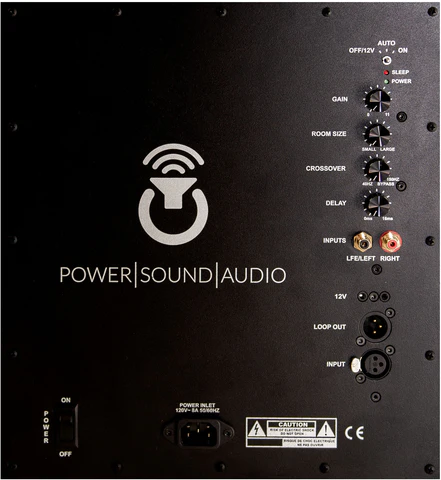

  • Amp

  • ICEpower® audio technology
  • Amplifier Power: 4000 watts
  • Inputs: Left and Right RCA
  • Inputs: Left and Right XLR
  • 12V Trigger
  • On, Auto, Off selector
  • Gain control
  • Time delay(phase) control
  • Crossover control
  • Room size control
  • Custom DSP(digital signal processing) enables superior engineering refinement
  • CE and FCC approved; EMC and safety pre-approved
  • Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
  • Patented HCOM modulation and control techniques for unparalleled audio accuracy
  • Sound optimized soft clipping
  • Soft start power up with mute/de-mute.
  • Thermal and over-current protection
  • Standby converter with low standby power consumption (less than 1 watt)
  • Universal mains operation (100-240 V, 50-60 Hz)
  • Standby power consumption 170 mW @ 230 V
  • ErP (1275/2008/EC) compliant
  • Energy Star®v3.0 compliant
  • 117 dBA dynamic range
  • THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
  • THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
  • CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
  • High output current limit of 30 A
  • Assembled by Power Sound Audio

  • Cabinet

  • Vented/Ported Enclosure
  • Front-firing driver
  • Acoustically transparent fabric grille cover
  • Matte black finish
  • Precision machined CNC panels
  • Rigid MDF baffles
  • Heavily braced
  • Rear mounted amplifier
  • Dimensions (DxWxH): 32.5" x 20.5" x 25" with grille

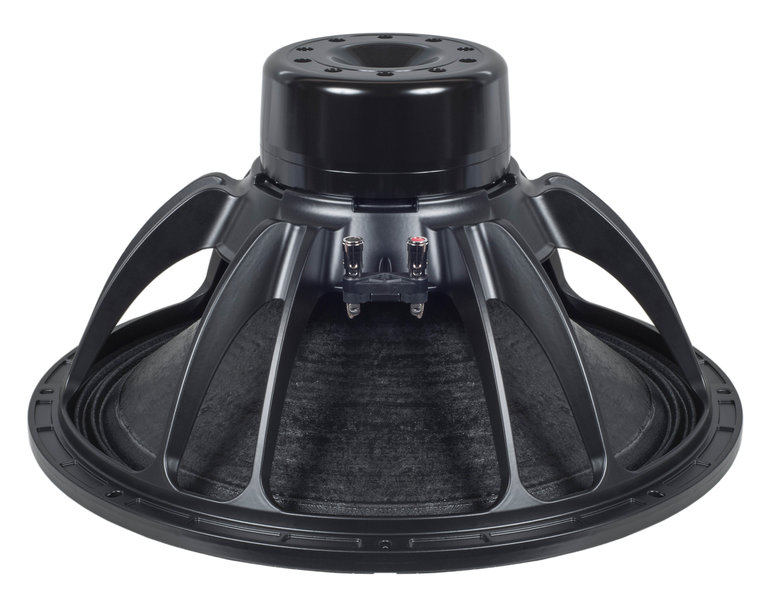

  • Woofer

  • 3000 W continuous program power capacity
  • 100mm (4 in.) four layer aluminum voice coil
  • 98 dB sensitivity
  • Neodymium magnet allows a very high force factor and linear excursion
  • Double silicon spider with optimized compliance
  • Ventilated voice coil gap for reduced power compression
  • Aluminum demodulation ring for very low distortion

  • Performance coming soon!
