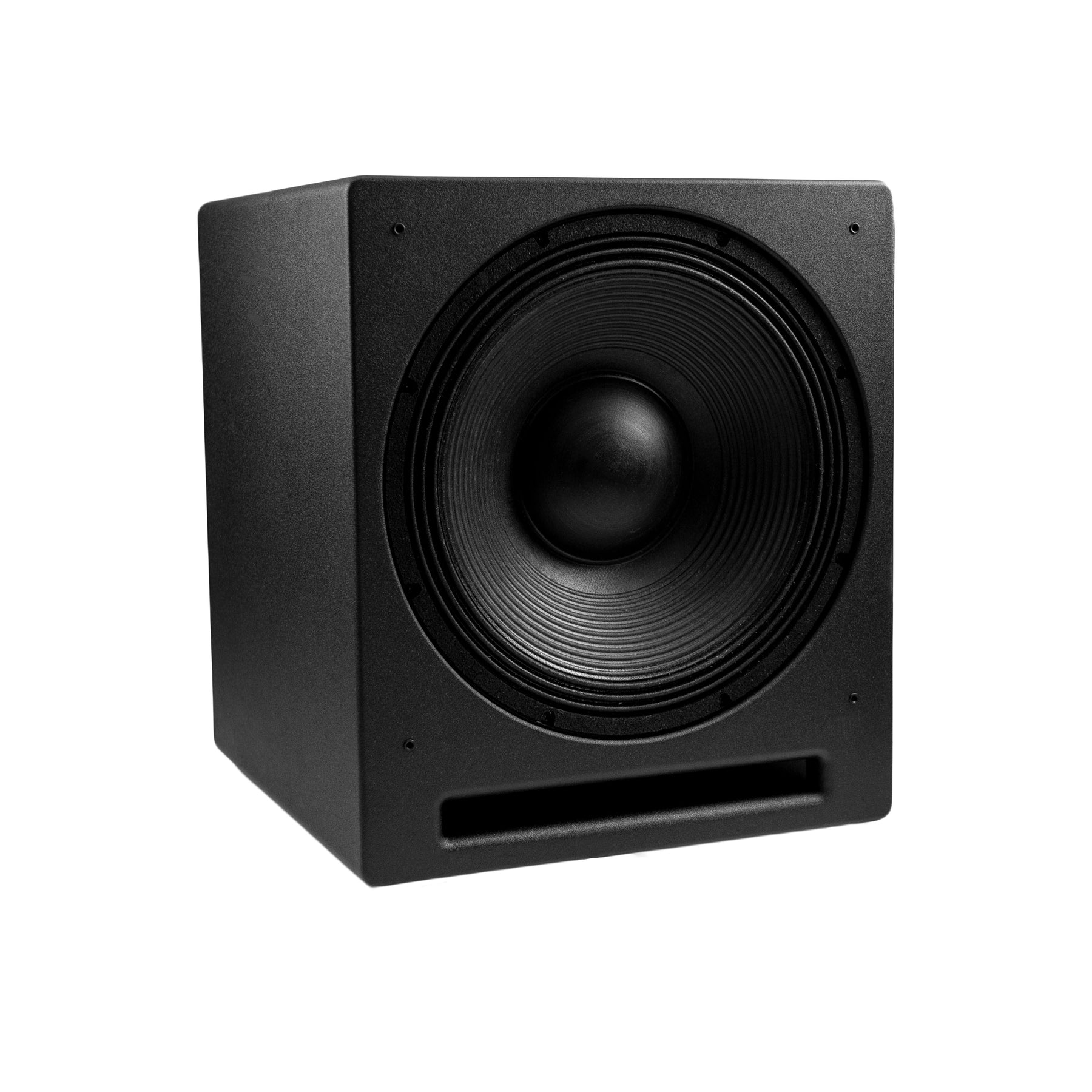

The TV21 Ipal powered home theater subwoofer will satisfy your cravings for deep accurate bass with a relatively small footprint. This low-tuned subwoofer is resetting the market when it comes to value.
The TV21 Ipal subwoofer is powered by a 3800W RMS (6100W PEAK) cabinet mounted amplifier. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.
The MDF enclosure is heavily braced and assembled with rabbet joints for strong structural integrity. The enclosure is finished with a non-reflective and extremely durable textured material. An acoustically transparent fabric grille covers the front-firing 21 inch subwoofer driver. The amplifier is mounted on the rear baffle.
The TV21 Ipal contains a 21 inch Ipal neodymiummotor woofer from B&C in Italy. With class leading thermal handing, motor strength, and inductance considerations you are assured of powerful and accurate bass reproduction.
Amplifier Power: 3800W RMS 6100W Peak
Amplifier Topology: Innovative post-filter feedback class-D topology, achieves ruler-flat frequency response, low distortion and very high damping across the whole audio band
Uses latest generation power MOSFET transistors and highly optimized output stage for up to 95% efficiency, allowing quiet fan-less operation up to unprecedented power levels
Full featured protection: DC, overload, low impedances, shorts, under/over-voltage, overheating, etc.
Includes gentle soft-start and long-term power limiter to reduce the chances of tripping breakers
120VAC (optional 120VAC-240VAC for an additional charge)
Unbalanced Inputs: Left and Right RCA
Balanced Input/Output: XLR input and XLR loop output.
On, Auto, Off selector
Time delay(phase) control
Room size control
Custom DSP(digital signal processing) enables superior engineering refinement
LED indicators for standby and power mode
Massive slot port with edge radius
Acoustically transparent fabric grille cover
Super durable, black sand textured finish
Precision machined CNC panels
Rigid MDF baffles
Rear mounted amplifier
USA manufactured rubber feet
Dimensions (DxWxH): 26"x24"x27"
Weight: 165 lbs
Cabinet Made in the USA
21 inch B&C Ipal woofer design from Italy
6 inch split wound aluminum voice coil
5000 watt thermal capabilities
99 dB sensitivity
Motor force of 522(BL^2 / re)
Extensive inductance control to optimize sound quality
