Create the very best home theater experience with a powered subwoofer from Power Sound Audio. Energize your room with fast, dynamic bass and cinema quality sound.

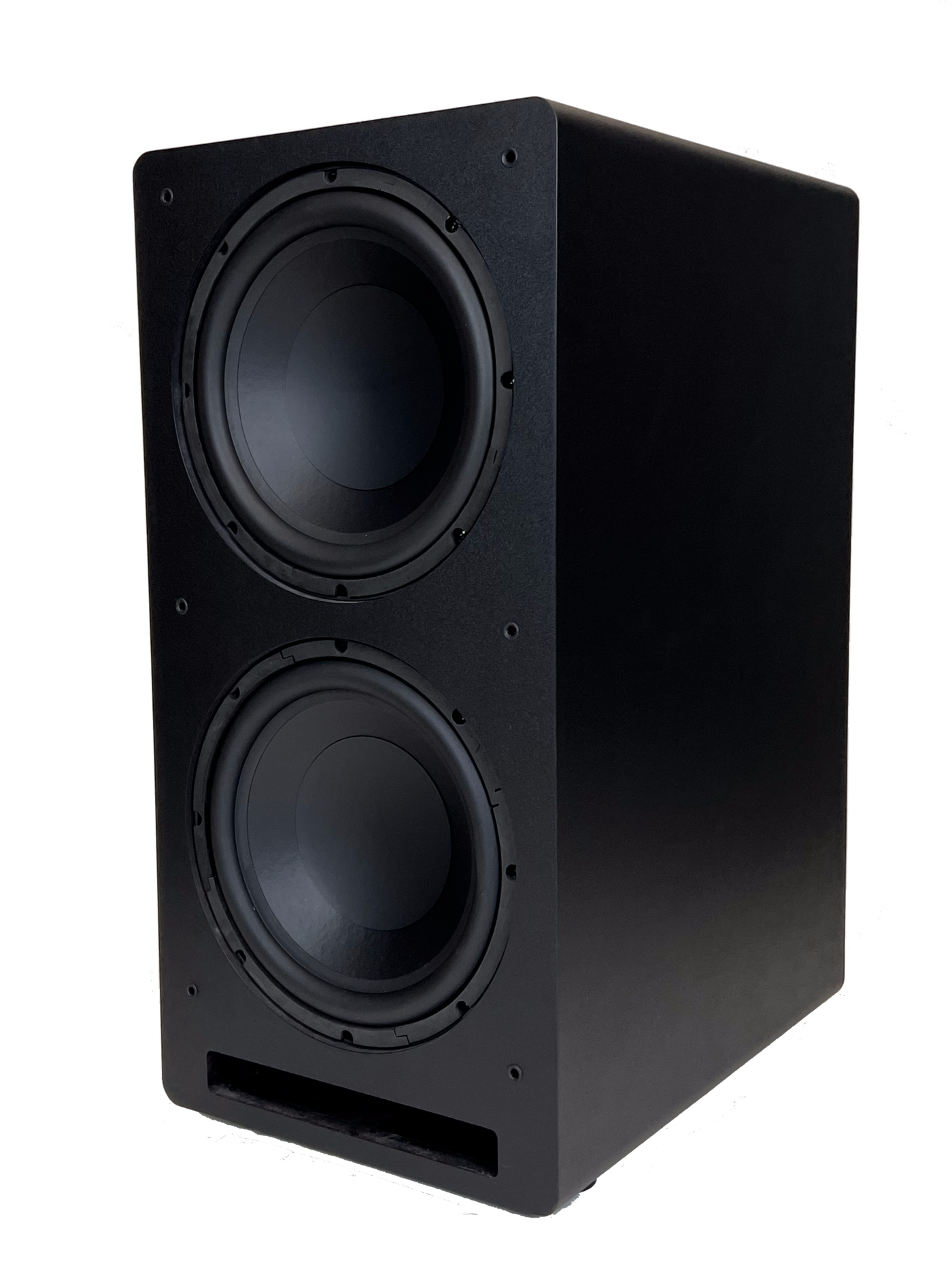

-The new TV2410M subwoofer represents an incredible size to performance ratio. At just 30"(h) x 15"(w) x 21"(d) but packing two 12 inch woofers and our own Ohio built ICE amplifier (rated at 960 watts RMS and 2100 watts peak) the TV2410M offers performance AND quality you simply cannot find anywhere else at its price point.
-The TV2410M subwoofer is powered by a 960W RMS (2100W PEAK) built-in amplifier with ICEpower® audio technology. A DSP based feature board includes the essential controls to properly integrate the subwoofer into your system.

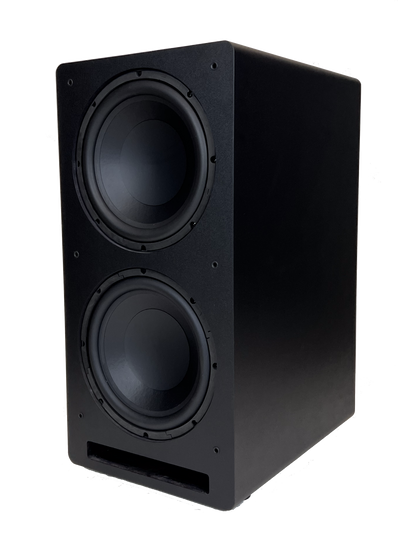

-The MDF enclosure is well braced with a double thickness woofer baffle. The enclosure is finished with a non-reflective matte covering. An acoustically transparent fabric grille covers the front-firing two 12-inch subwoofer drivers. The amplifier is mounted on the rear baffle.
-The TV2410M contains dual 12 inch woofers that have almost 30% more cone area than a typical 15 inch woofer.
Design |
Vented |
Drivers |
Two 12" Heavy Duty Ferrite Woofers |
Powered |
Yes |
Amp |
960W RMS (2100W PEAK) |
Enclosure |
CNC machined MDF |
Frequency Response |
14hz-170Hz Anechoic (+/-3dB) |
In-Room Extension |
10hz-12Hz |
Unboxed Size (DxWxH) |
21" x 15" x 30" with grille |
Boxed Size (DxWxH) |
27" x 20" x 36" |
Unboxed Weight |
114 lbs |
Boxed Weight |
125 lbs |
Included In The Box
One TV2410M powered subwoofer
Grille
One owner's manual
One 6' AC power cord
Amp
ICEpower® audio technology
Amplifier Power: 960 watts
Inputs: Left and Right RCA
Inputs: Left and Right XLR
12V Trigger
On, Auto, Off selector
Gain control
Time delay(phase) control
Crossover control
Room size control
Custom DSP(digital signal processing) enables superior engineering refinement
CE and FCC approved; EMC and safety pre-approved
Fully integrated amplifier and power supply with mains-converter and auxiliary-converter
Patented HCOM modulation and control techniques for unparalleled audio accuracy
Sound optimized soft clipping
Soft start power up with mute/de-mute.
Thermal and over-current protection
Standby converter with low standby power consumption (less than 1 watt)
Universal mains operation (100-240 V, 50-60 Hz)
Standby power consumption 170 mW @ 230 V
ErP (1275/2008/EC) compliant
Energy Star®v3.0 compliant
117 dBA dynamic range
THD+N = 0.005 % @ 1 W (4 Ω, 1 kHz)
THD+N = 0.0008 % @ 50 W (4 Ω, 100 Hz)
CCIF IM distortion = 0.0003 %, 10 W, 4 Ω, 18.5 kHz / 1 kHz
High output current limit of 30 A
Assembled by Power Sound Audio in Ohio
Cabinet
Vented/Ported Enclosure
Elaborate slot port design offers a unique blend of extension and laminar air flow

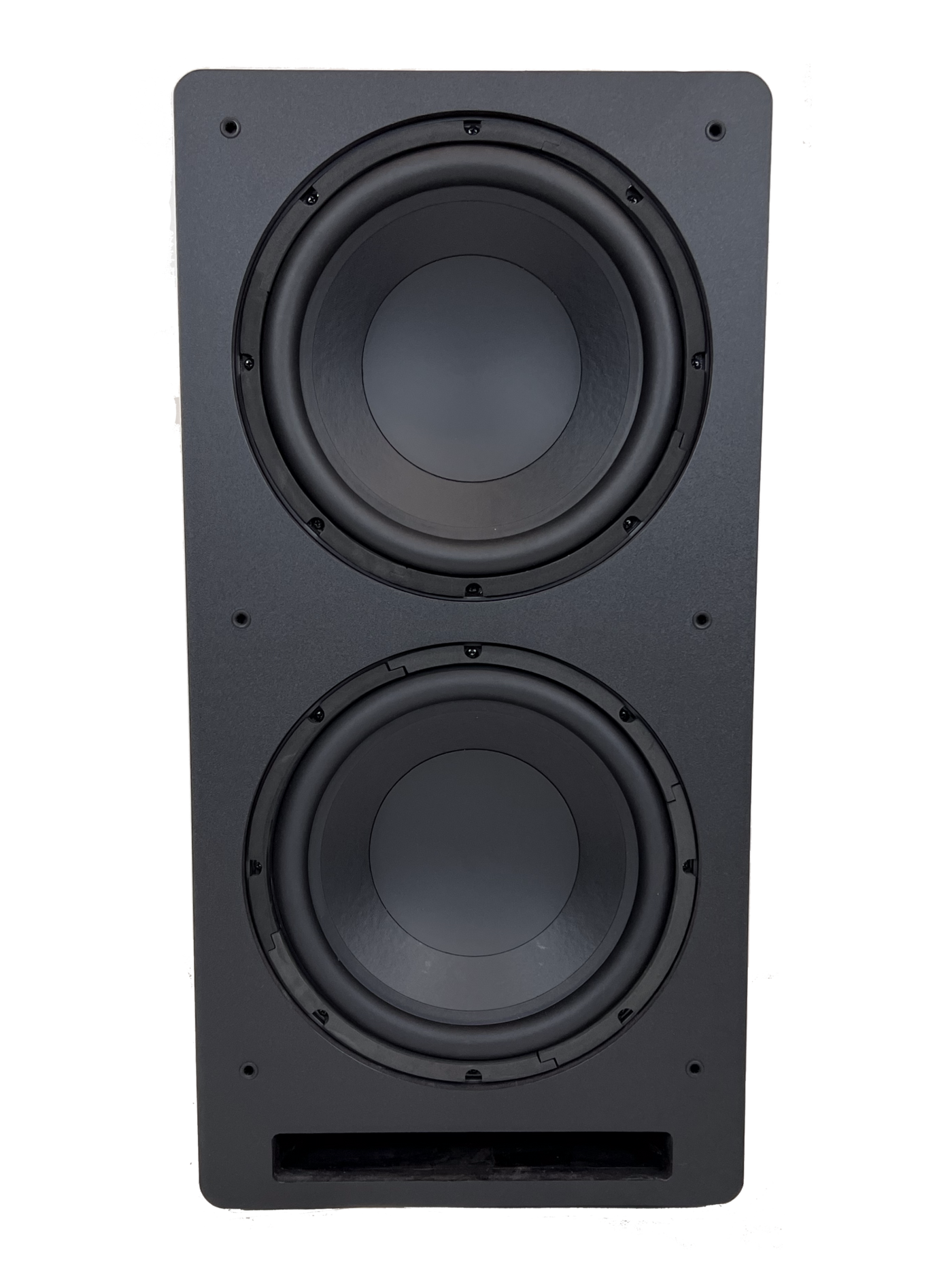

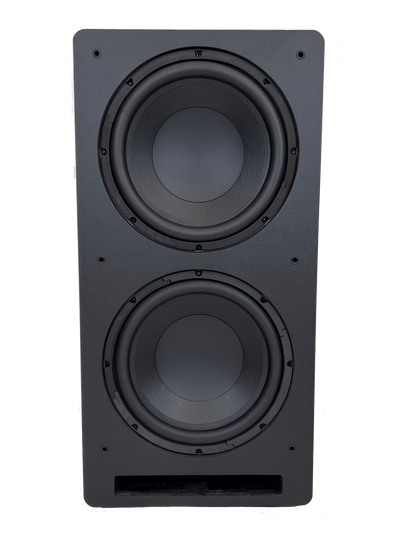

Dual front-firing 12" woofers

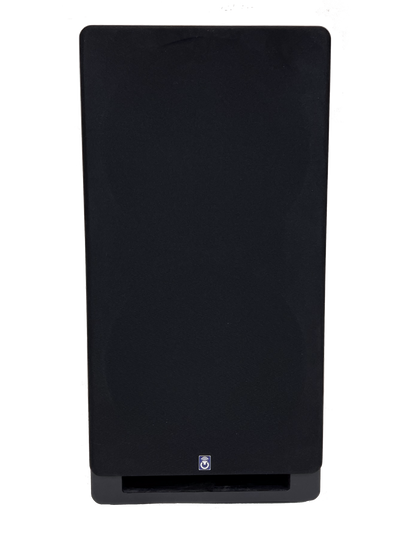

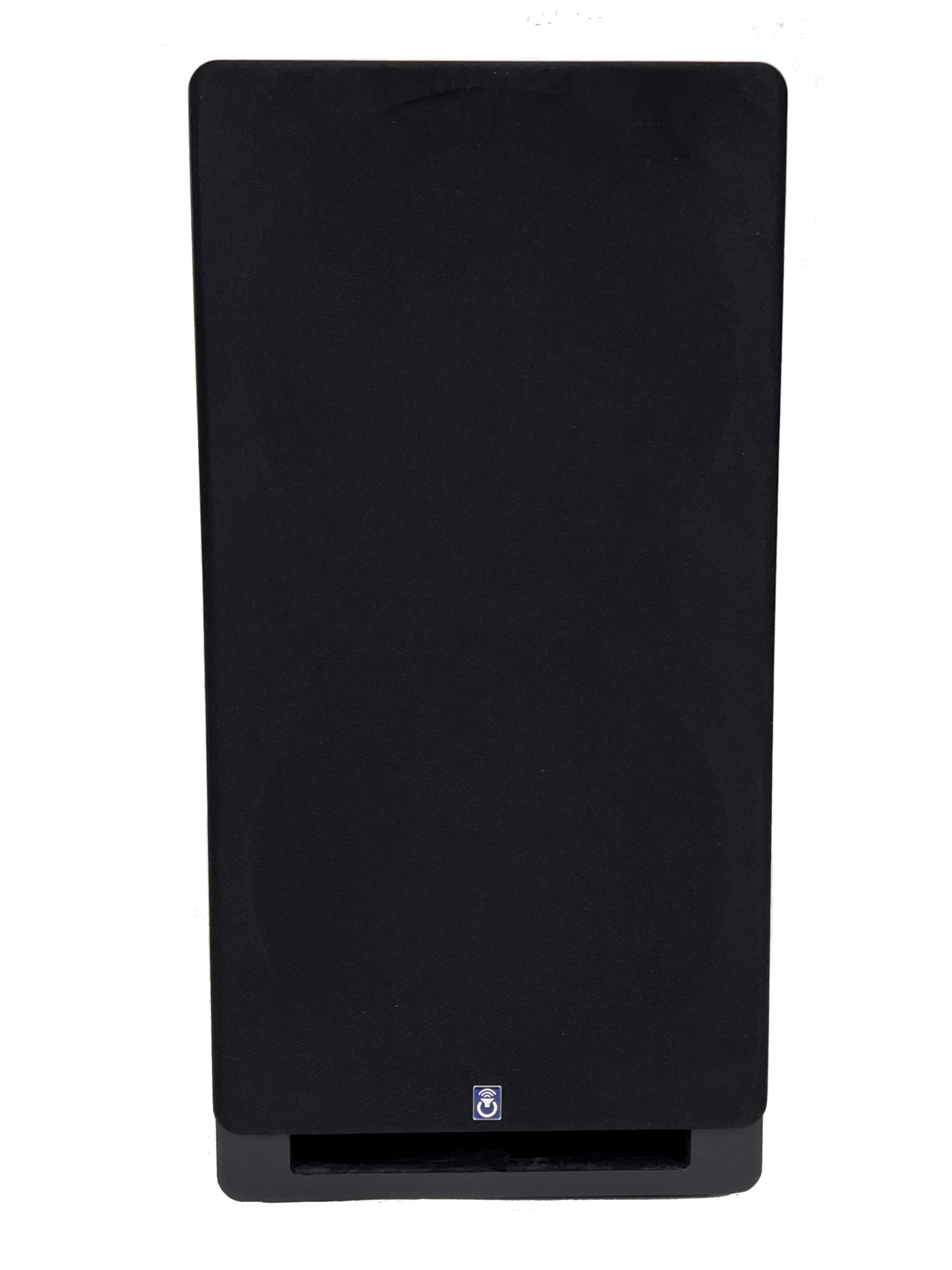

Acoustically transparent fabric grille cover
Non-reflective black matte finish
Precision machined CNC panels
Rigid MDF baffles
Heavily braced

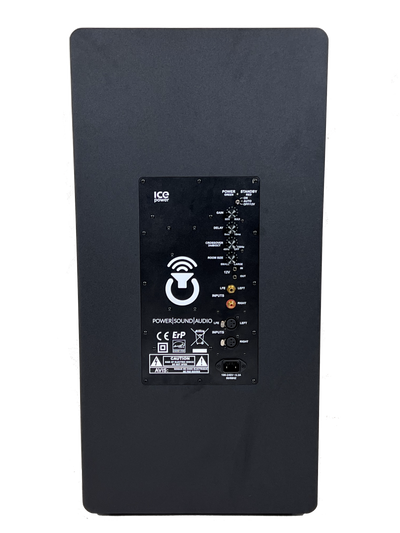

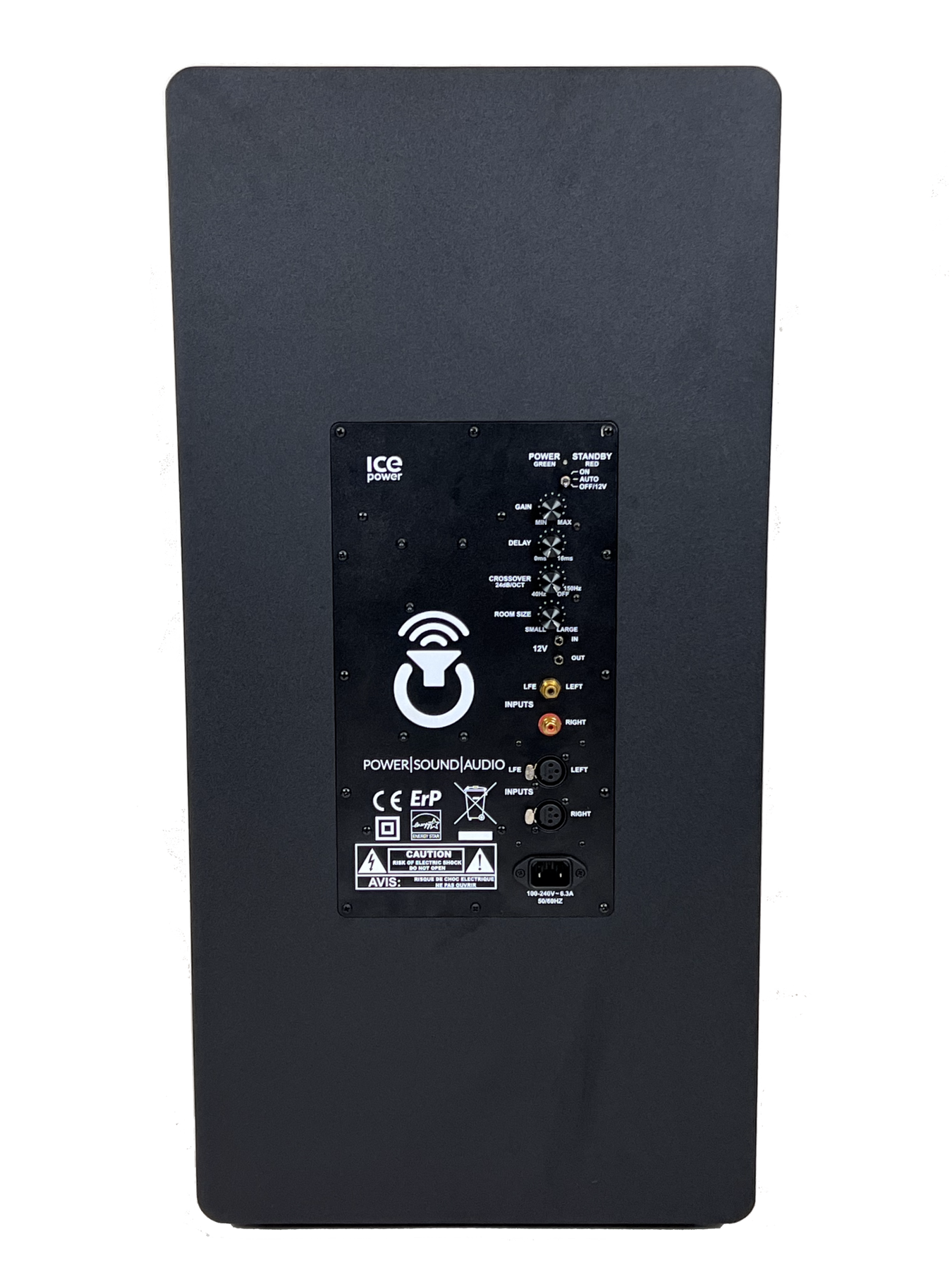

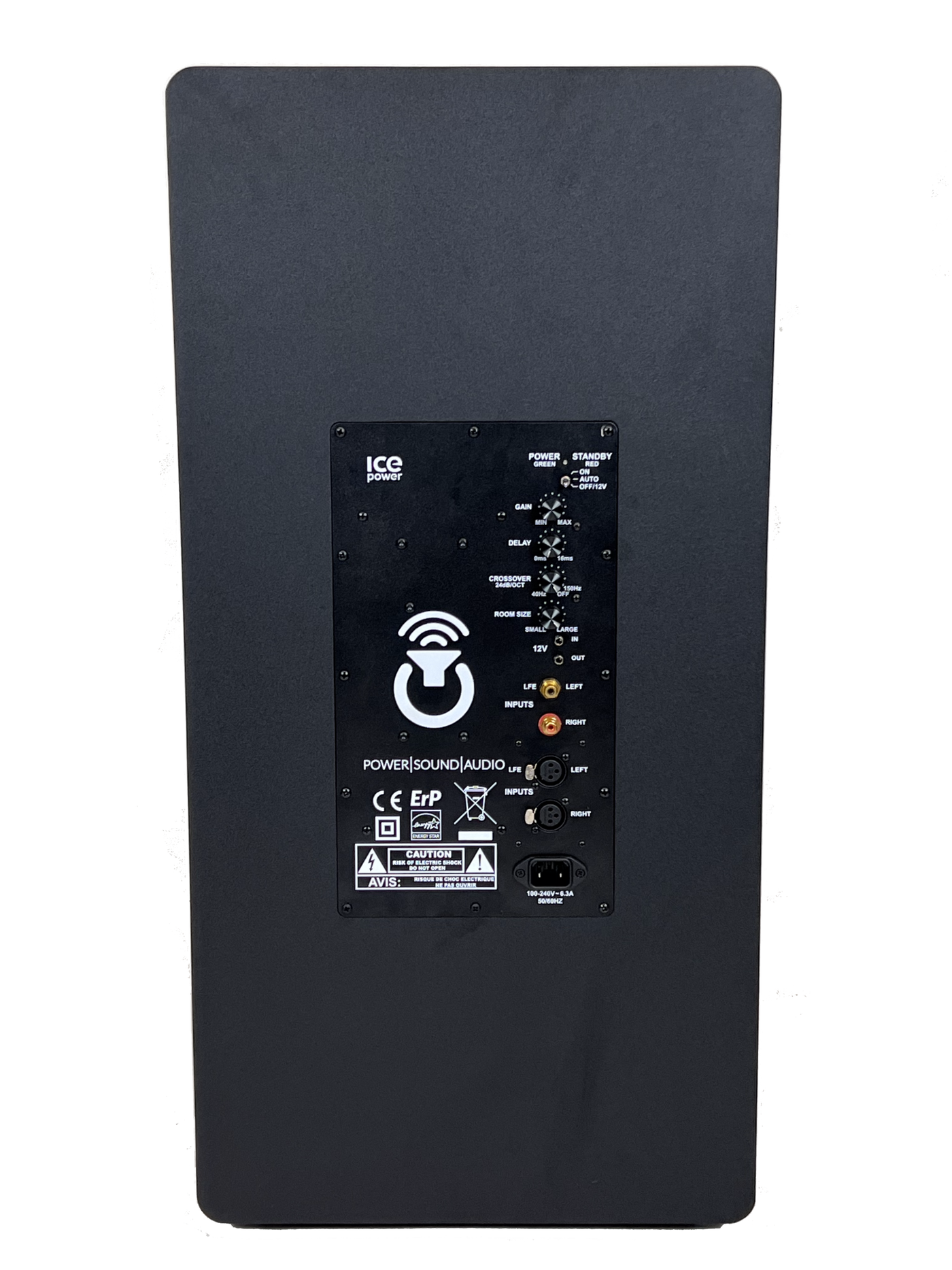

Rear mounted amplifier
Dimensions (DxWxH): 21"x15"x30" includes grille
Woofer
Country of origin: China
Massive 12 inch woofer with a total weight of 23 pounds(per woofer)
Dual 3/4" thick, 7" diameter magnets for extraordinary motor strength
Bumped back plate to allow long excursion
Lightweight but rigid paper composite cone
High strength cast aluminum basket
Performance coming soon!
